The L-CNG Vehicle Refueling Skid is a dedicated solution for NGV (Natural Gas Vehicle) refueling, integrating LNG storage, pressure boosting, regasification, and high-pressure CNG filling functions. It is designed for gas stations, logistics parks, and public transportation hubs, enabling efficient and fast refueling for LNG and CNG vehicles.
Core Design Advantages:
Dual-purpose Adaptability: Converts LNG to high-pressure CNG to meet refueling needs of both LNG and CNG vehicles, maximizing equipment utilization.
Intelligent Unloading System: Equipped with an Unloading PBU Skid that automatically boosts pressure and maintains stable pressure during LNG tanker unloading. This ensures a consistent pressure difference between the tanker and the storage tank, avoiding delays caused by pressure fluctuations.
High-Flow Optimization: When the gas flow rate exceeds 2000Nm³/h, the LNG vaporizer can be installed as a separate skid or on an on-site foundation. This design prevents overheating and performance degradation of the vaporizer, ensuring continuous refueling during peak hours.
Additionally, the skid is equipped with an explosion-proof electric heater control box, which enhances operational safety in hazardous environments and meets strict industrial explosion-proof standards.

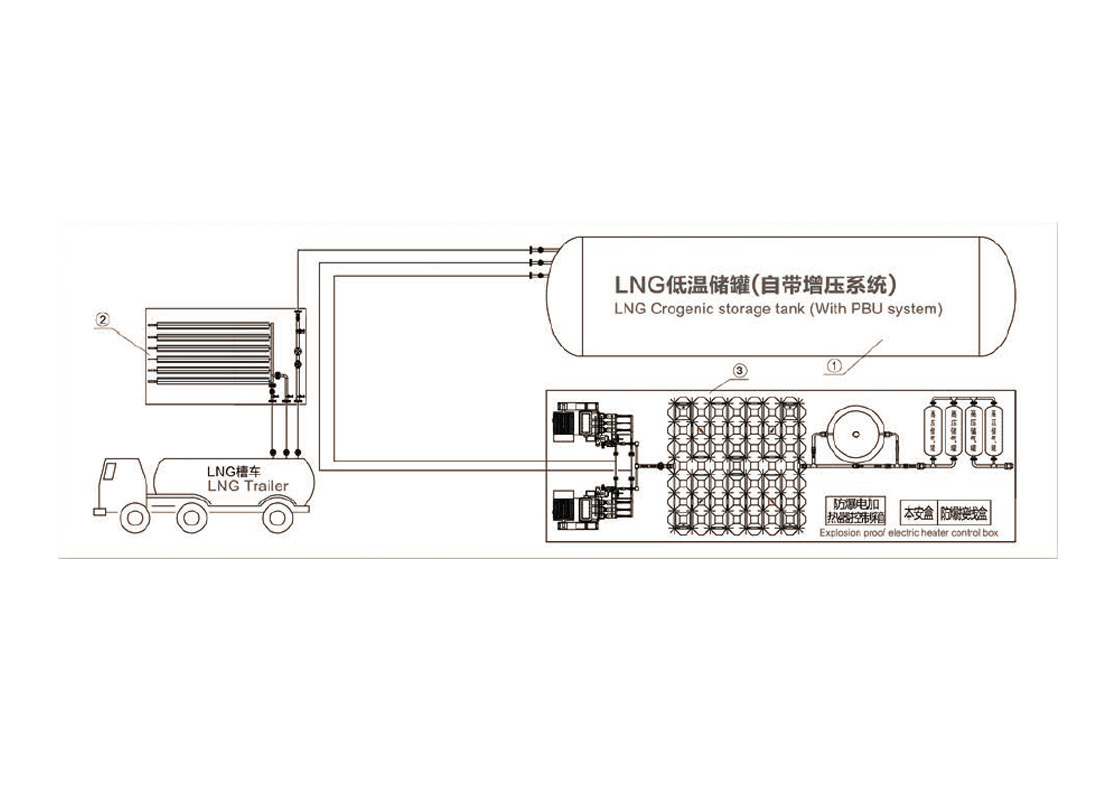

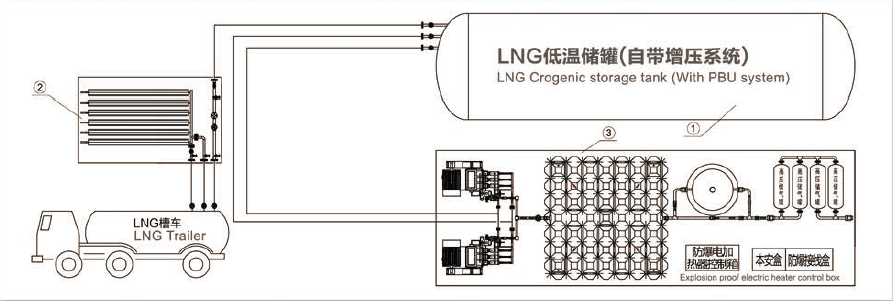

L-CNG vehicle refueling skid process
a) LNG storage tank skid: for LNG storage and the fluid supply, generally purchased or provided directly by the user. (Horizontal tank comes with pressurized systems, pressurized vertical storage tank deprovision pry)
b) Unloading PBU skid: for boosting and the constant pressure when the LNG tanker unloading fluid, then the LNG storage tanks can reach the normal fluid pressure difference, so the LNG tankers can irrigation charging.
c) When the flow rate≥2000Nm³/h, it is recommended LNG vaporizer prized separately or foundational separately on-site.
Certifications & Reports:
Complies with the ASME Boiler and Pressure Vessel Code Rules, Section VIII, Division 1 for pressure components like storage tanks and vaporizers.
Provides a comprehensive set of inspection reports to clients, including:
Pressure vessel qualification certificate
Welder/material traceability record
Non-destructive testing (NDT) report (X-ray, ultrasonic)
Helium leak detection report
Valve and safety accessory qualification certificates
On request, additional certifications (such as ISO 9001 quality management system certification) can be provided to meet regional regulatory requirements.
Warranty & Traceability: Every skid is 100% traceable, from raw materials to finished products. We offer a standard warranty for key components and provide technical training and after-sales support to ensure smooth daily operation of the refueling skid.
SinoCleansky LNG modular regas station are manufactured under strictly quality control system. The LNG modular regas station are with inspection report submitted to clients. With client’s requirements, SinoCleansky will also provide some other certificates as per clients’ request. We assure you that all LNG modular regas station are 100% traceable.
Reference certifications and reports:
Packaging:
Skid-mounted main units: Fixed with high-strength steel brackets and anti-vibration pads to prevent structural damage during transit.
Precision components (e.g., pressure regulators, flowmeters): Packed in foam-lined, waterproof boxes to protect against moisture and impact.
Explosion-proof electric heater control boxes: Sealed with dust-proof and moisture-proof covers to ensure internal components remain intact.
Shipping Methods:
Standard Container Shipping: Uses 20GP, 40GP, or 40HQ containers for standard skid sizes, facilitating efficient sea or land transportation.
Bulk Shipping: For oversized or customized skids, bulk vessels or flatbed trucks are used, with additional reinforcement to secure the skid during long-distance transport.
Logistics Support: Our team provides detailed shipping documents (including packing lists, certificates of origin, and customs clearance papers) and coordinates with local partners for on-site delivery and unloading.
The LNG modular regas station can be shipped by different types of containers, bulk vessel and etc.;
