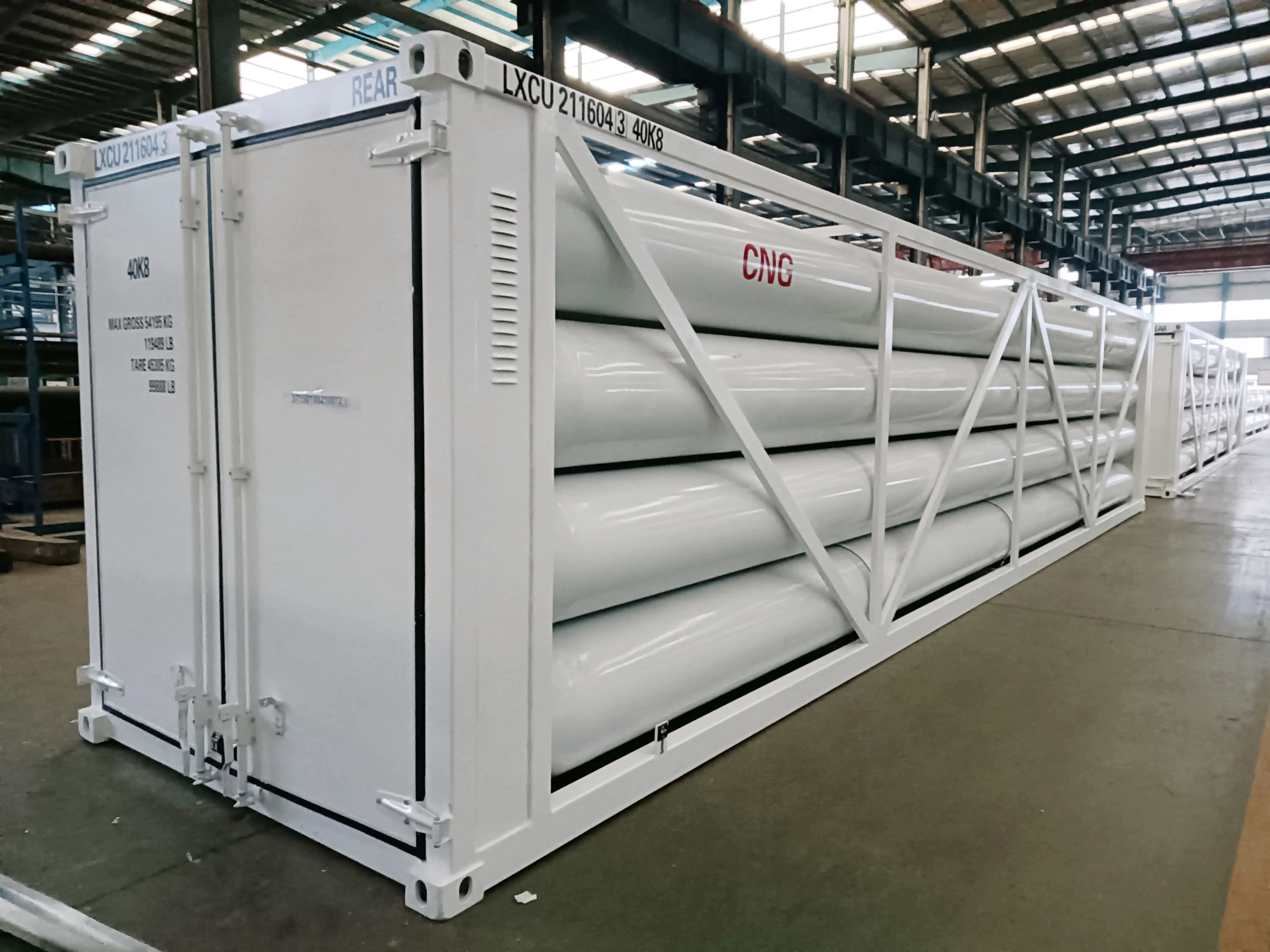

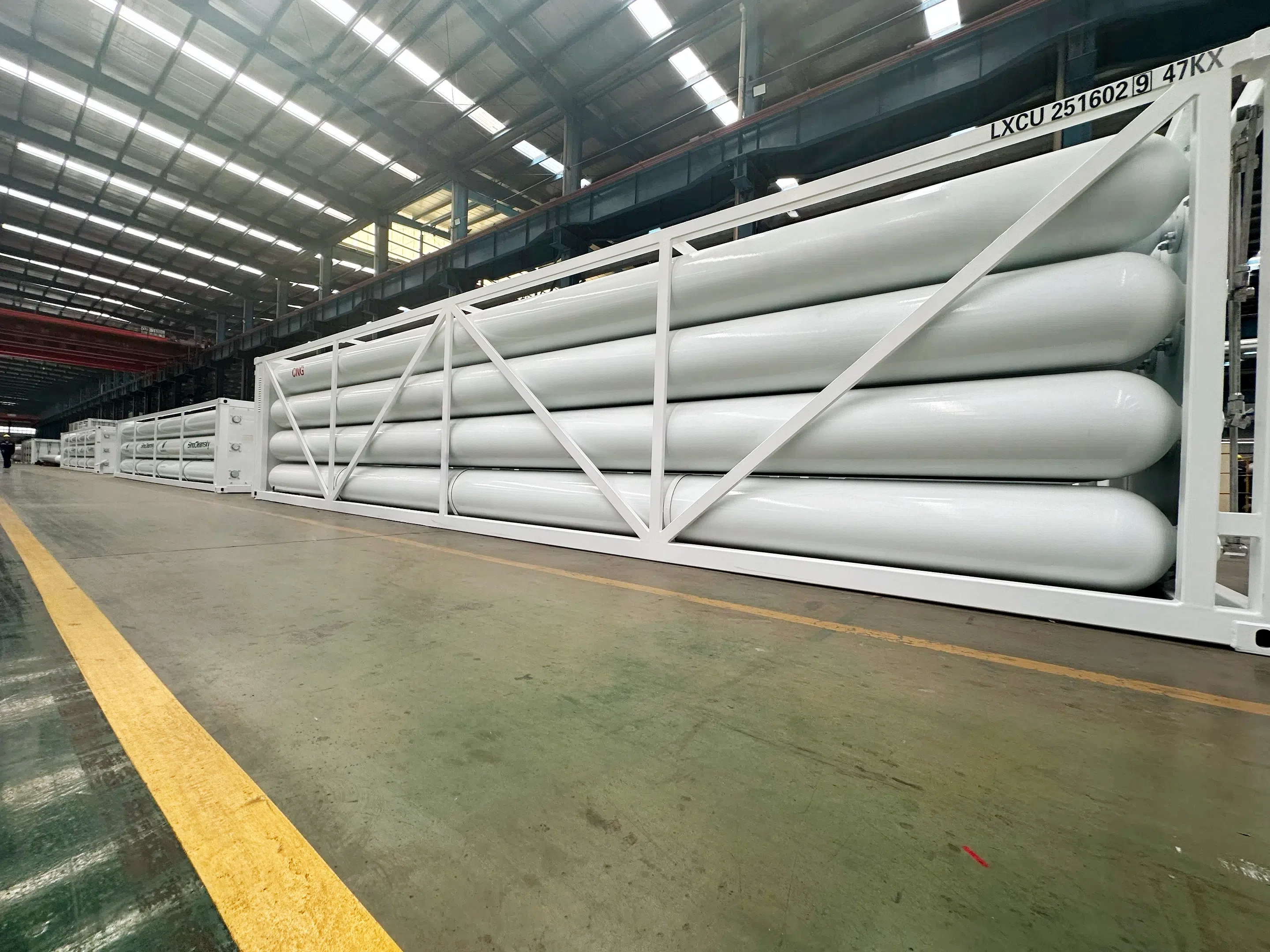

SinoCleansky CNG jumbo container has the maximum tube combinate skid, 16 tubes skid.
Taking into account various technical factors such as capacity, weight and dimension, a 16-tube skid container with the best performance, highest quality and safety factor was manufactured by SinoCleansky to meet the requirements of large-capacity gas transportation.
This type could load 1.5 times water volume compare with 8-tube skid, achieved the maximum efficiency in land transportation.
Consindering counries' road load capacity permits, the 16-tube design maximizes the transportation of large-scale structures, and it has a significant advantage in saving transportation costs.
A maximum of 20 tubes can be customized. If you need the maximum quantity, please contact us.
SinoCleansky ensures the 16Tubes 40ft Jumbo Tube Skid Container meets global quality and safety standards:
International certifications: Inspected by third-party authorities (BV, TUV, LRS) in accordance with ISO 11120. Clients receive comprehensive inspection reports, including:
Hydrostatic test results (37.5MPa, 2-minute duration, no leakage).
Ultrasonic thickness testing (minimum wall thickness 14.8mm).
Visual inspection (no surface defects, compliant with drawings).
Compliance: Meets ADR (European road), RID (rail), and IMDG (maritime) regulations for dangerous goods. Optional DOT/ASME certifications for North American/European markets.
Traceability: 100% traceable raw materials and production processes—each tube has a unique serial number, with detailed records (material certificates, heat treatment reports) provided to clients.
Warranty: Standard 12-month warranty covering manufacturing defects. Extended warranty (up to 24 months) and on-site maintenance training are available.
Reference certifications and reports:
To handle the large size and weight of the 16Tubes 40ft container, SinoCleansky uses specialized packaging and logistics:
Container options: Shipped in open-top containers (40OT) or flat-rack containers to accommodate the 2595mm height. For sea shipping, the container is secured with heavy-duty lashings.
Securement: Fixed to the container floor with high-tensile steel bolts (M20 grade) and anti-vibration rubber pads to prevent movement during transit.
Protective measures: Tubes are wrapped in waterproof, scratch-resistant film; valves and fittings are covered with dust caps and sealed with plastic to avoid corrosion.
Global logistics: Coordinates with freight forwarders specializing in oversized cargo to deliver to clients worldwide. For Central Asian clients, railway transportation is available—offering a cost-effective alternative to road freight.
Documentation: Includes all necessary paperwork (certifications, inspection reports, packing lists) to comply with customs regulations in target markets (e.g., Middle East, Africa, Southeast Asia).
