SinoCleansky CNG jumbo containers are produced as per ISO11120, with inspection report (certificate) issued by BV, LRS, TUV or equivalent international third-party.
Our Jumbo Skid Container has the following traits:
Extreme +130% large capacity, over -2,000 kg equipment weight reduction.
At least 20%↑ efficiency increase, and 10%↑ cost saving.

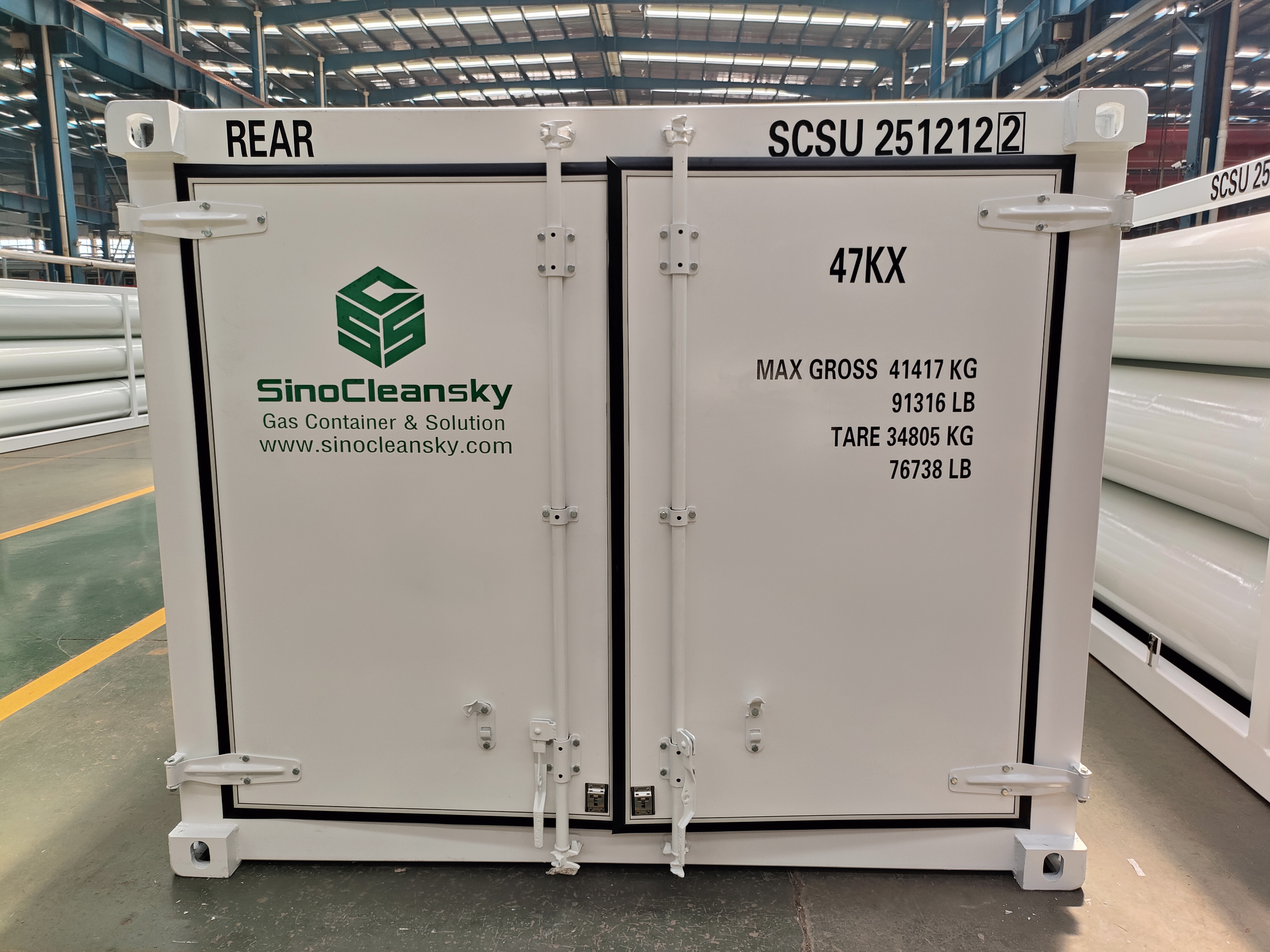

Standard corner fittings and framework design, easy for transportation.
The CNG Jumbo Tube is characterized by its high strength and durability. It is fabricated using top-quality materials that can withstand the pressure and rigors of handling and transportation. This ensures the safe storage and transfer of CNG.

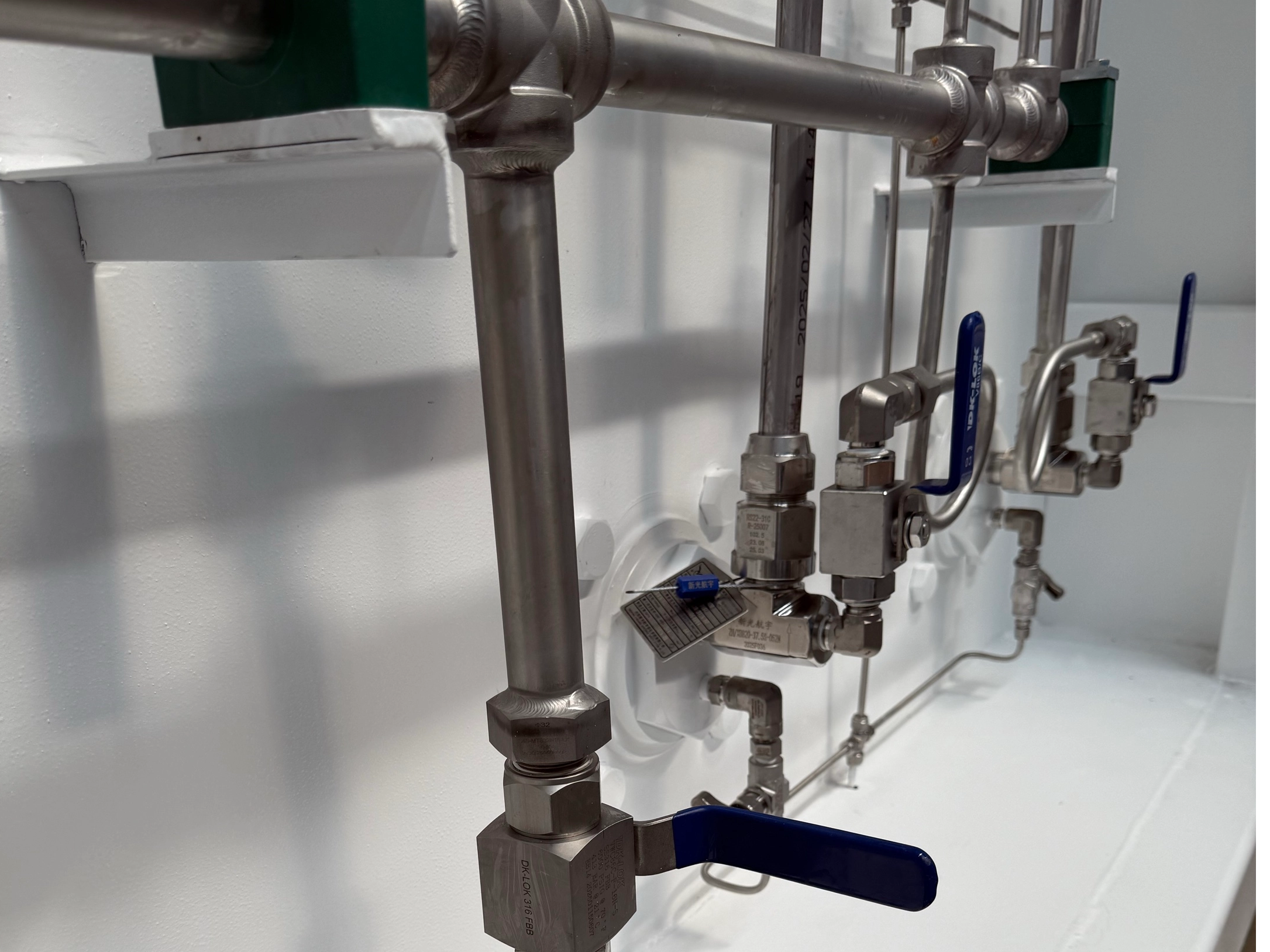

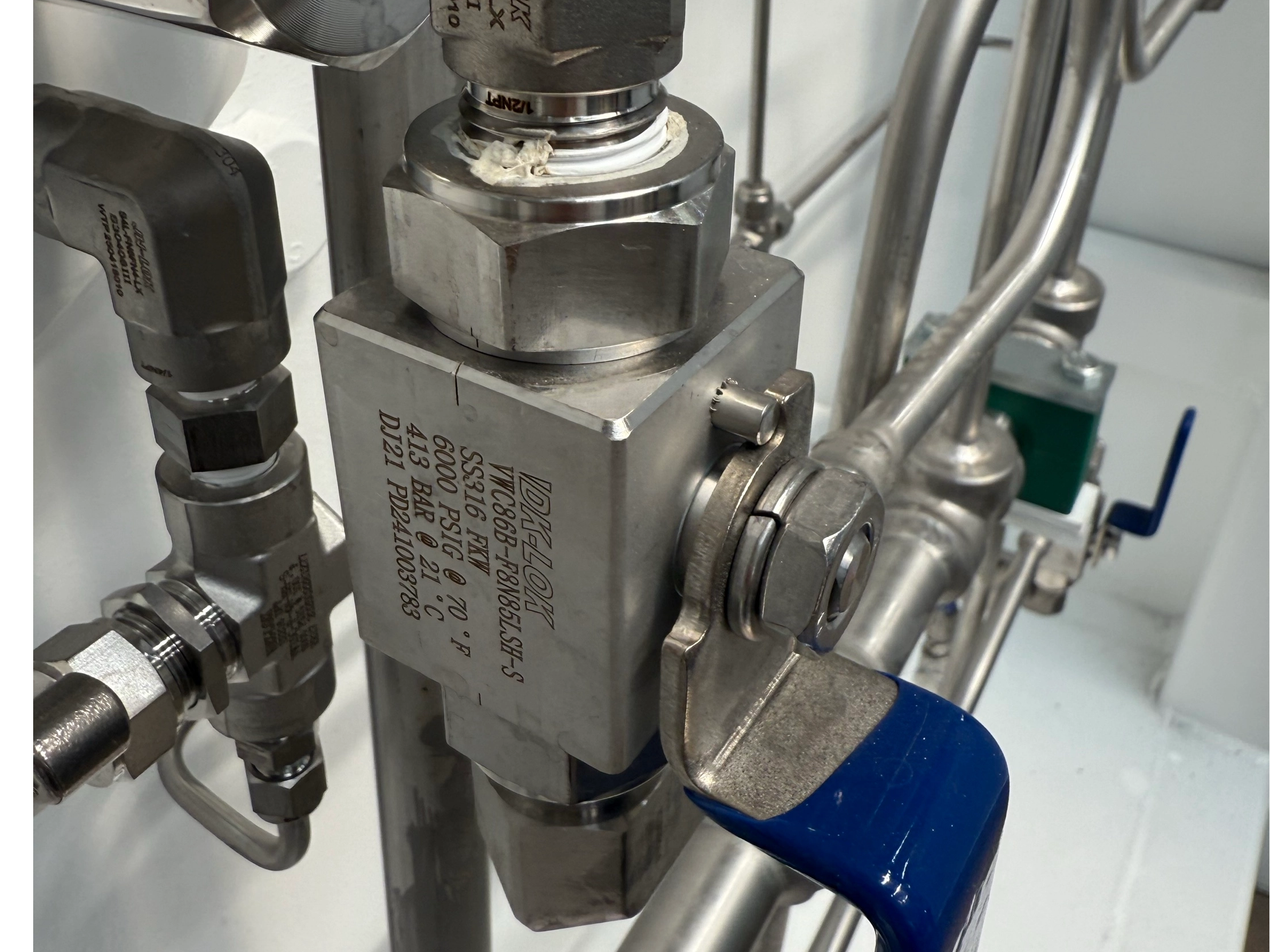

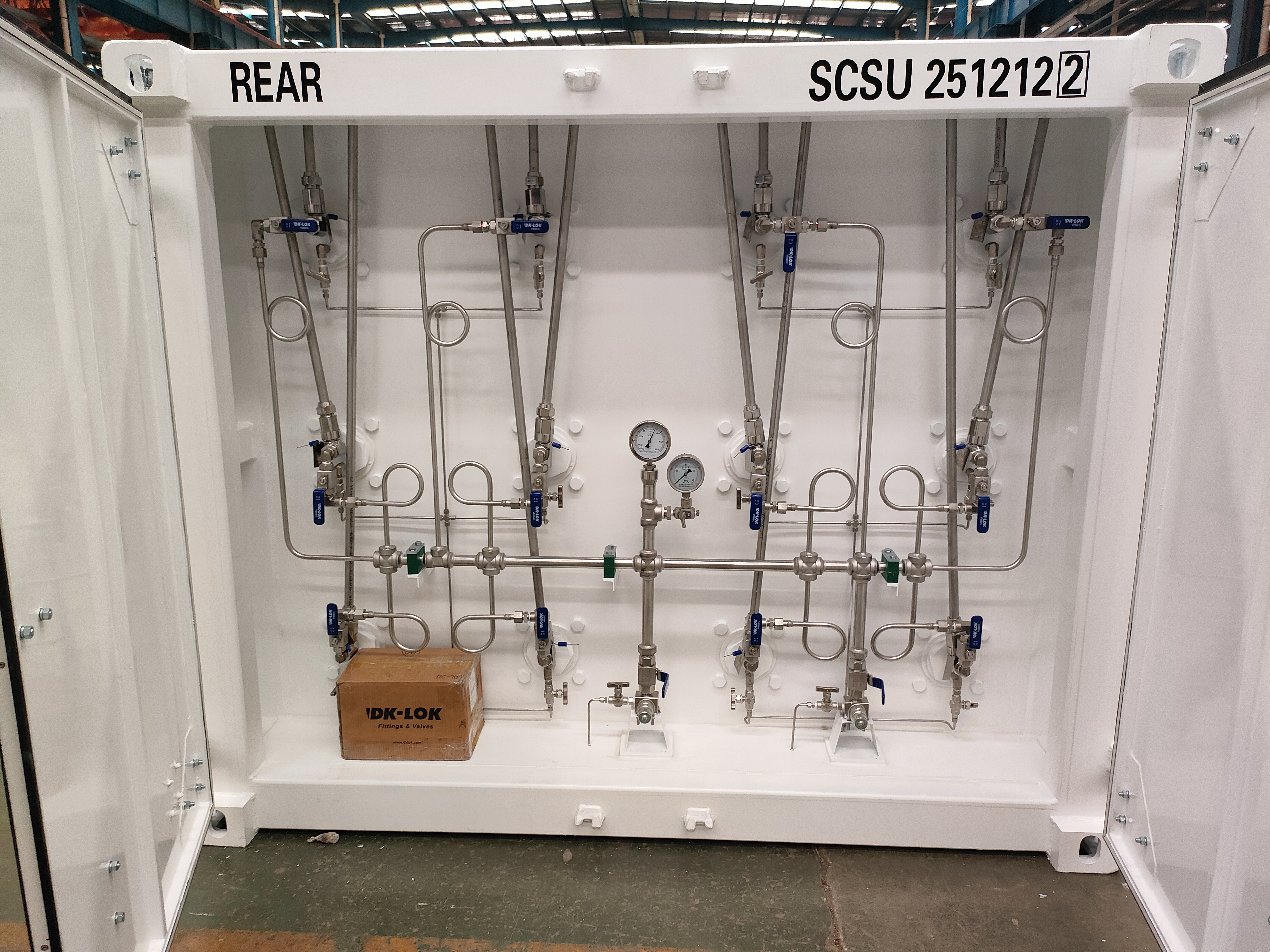

It features user-friendly connections and valves that enable quick and seamless filling and dispensing of CNG. The tube is also compatible with a wide range of CNG infrastructure and equipment.
One of the key features of the CNG jumbo tube skid is its durability. The tubes are made from robust materials that can withstand the rigors of transportation and handling. This ensures that the CNG jumbo tube skid can be used in various environments without the risk of damage or leakage.
Another advantage of the CNG jumbo tube skid is its flexibility. It can be customized to meet the specific requirements of different customers. Whether it's for a small-scale industrial application or a large-scale CNG distribution network, the CNG jumbo tube skid can be tailored to fit the needs precisely.
In addition, compare with cylinder groups, Jumbo Skid is equipped with a drainage valve to secure the cleanliness of long-term storage.
The CNG Jumbo Tube is an environmentally friendly option. By promoting the use of natural gas, it helps to reduce greenhouse gas emissions and contribute to a cleaner and more sustainable future.

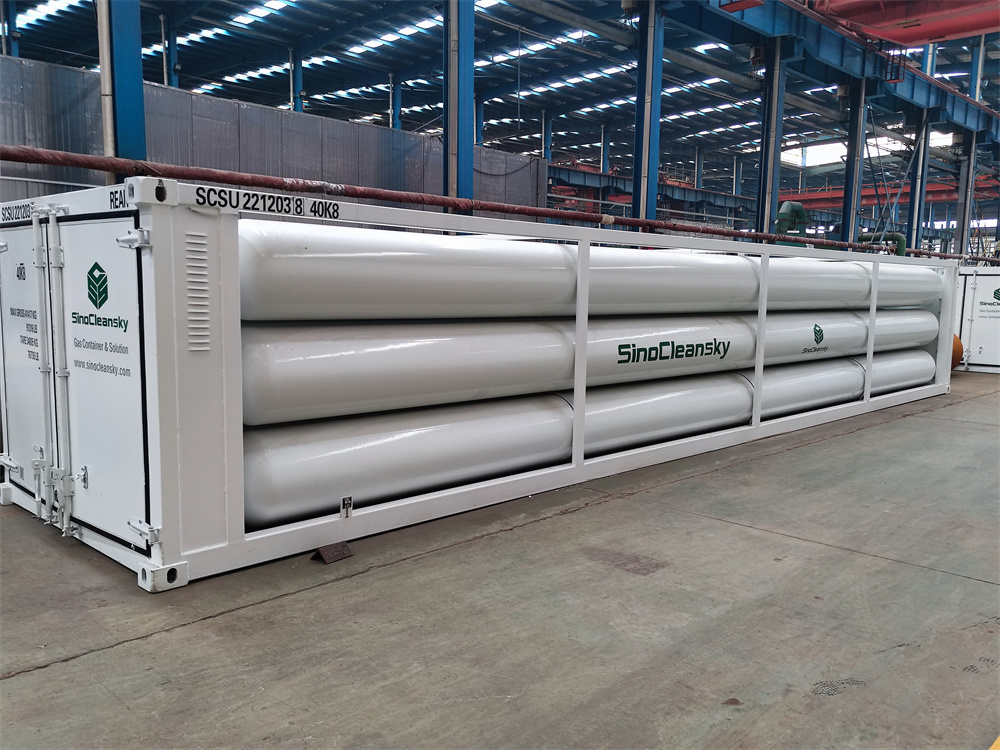

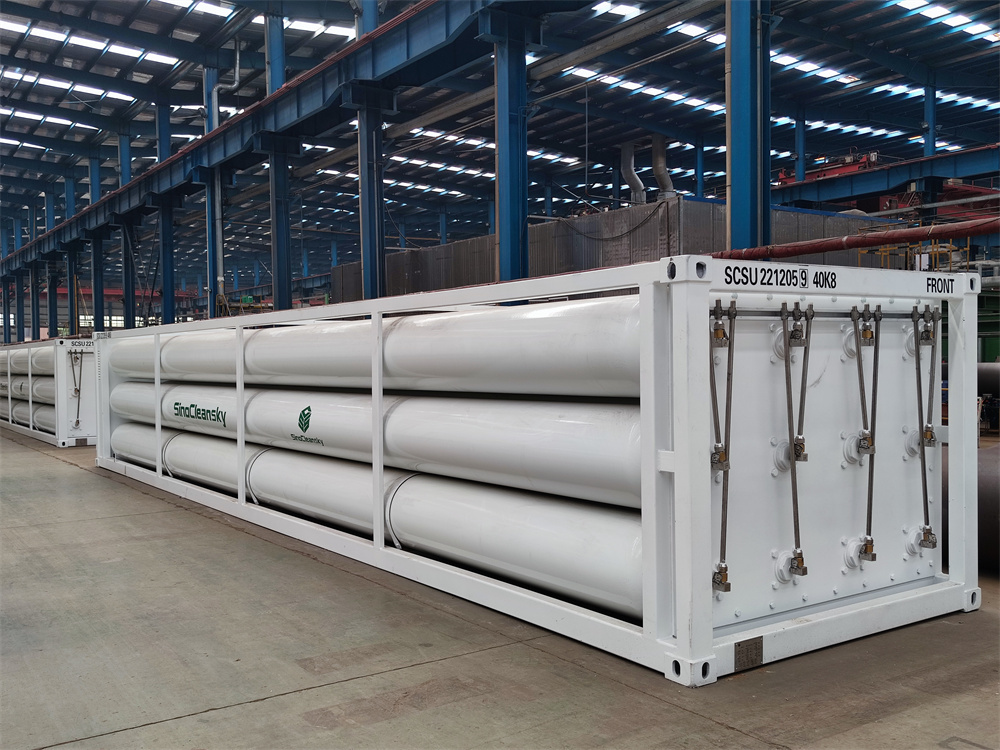

SinoCleansky ensures the 12Tubes 40ft Jumbo Tube Skid Container meets the highest global standards:
Third-party inspection: Certified by BV, TUV, or LRS in accordance with ISO 11120. Inspection reports include:
Hydrostatic test (37.5MPa, 120 seconds, no leakage).
Ultrasonic/visual inspection (no surface defects, dimensional accuracy).
Document review (raw material certificates, heat treatment records).
Regional compliance: Meets ADR (road), RID (rail), and IMDG (maritime) regulations for dangerous goods. Optional DOT/ASME certifications for North American/European markets.

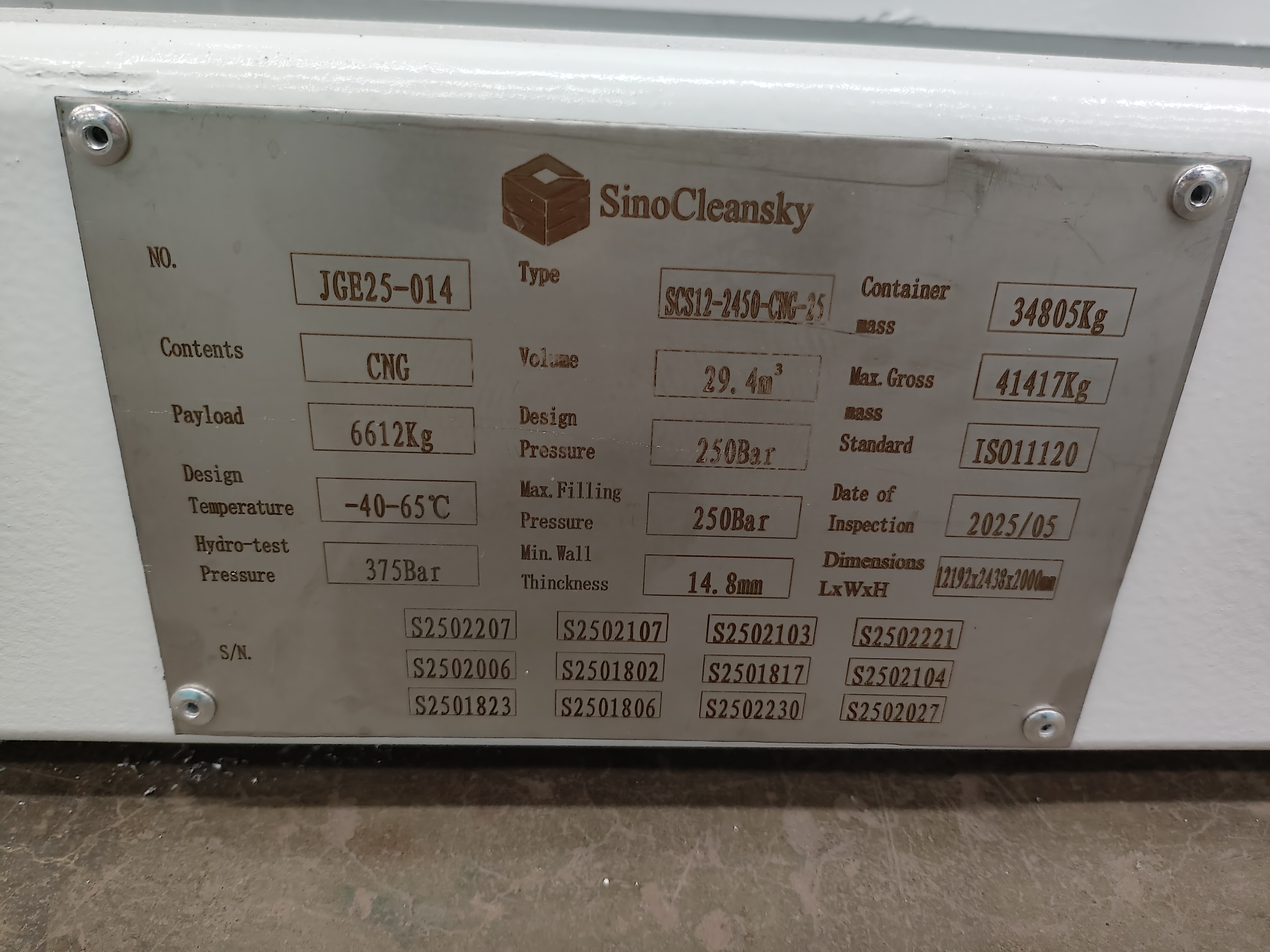

Traceability: 100% traceable components—each tube has a unique serial number, with full records provided to clients for audit purposes.
Warranty: 12-month standard warranty covering manufacturing defects. Extended warranty (up to 24 months) and on-site maintenance services are available.
Reference certifications and reports:
To ensure safe, efficient delivery of the 12Tubes 40ft container, SinoCleansky uses tailored solutions:
Container options: Shipped in 40GP/40HQ containers or open-top containers (40OT) for easy loading. The skid design fits standard ISO container dimensions, simplifying global shipping.
Securement: Fixed to the container floor with high-strength bolts and anti-vibration pads. For road transport, additional side brackets prevent lateral movement.
Protective measures: Valves and fittings are sealed with dust caps; the skid frame is coated with anti-rust paint to resist corrosion during sea shipping.

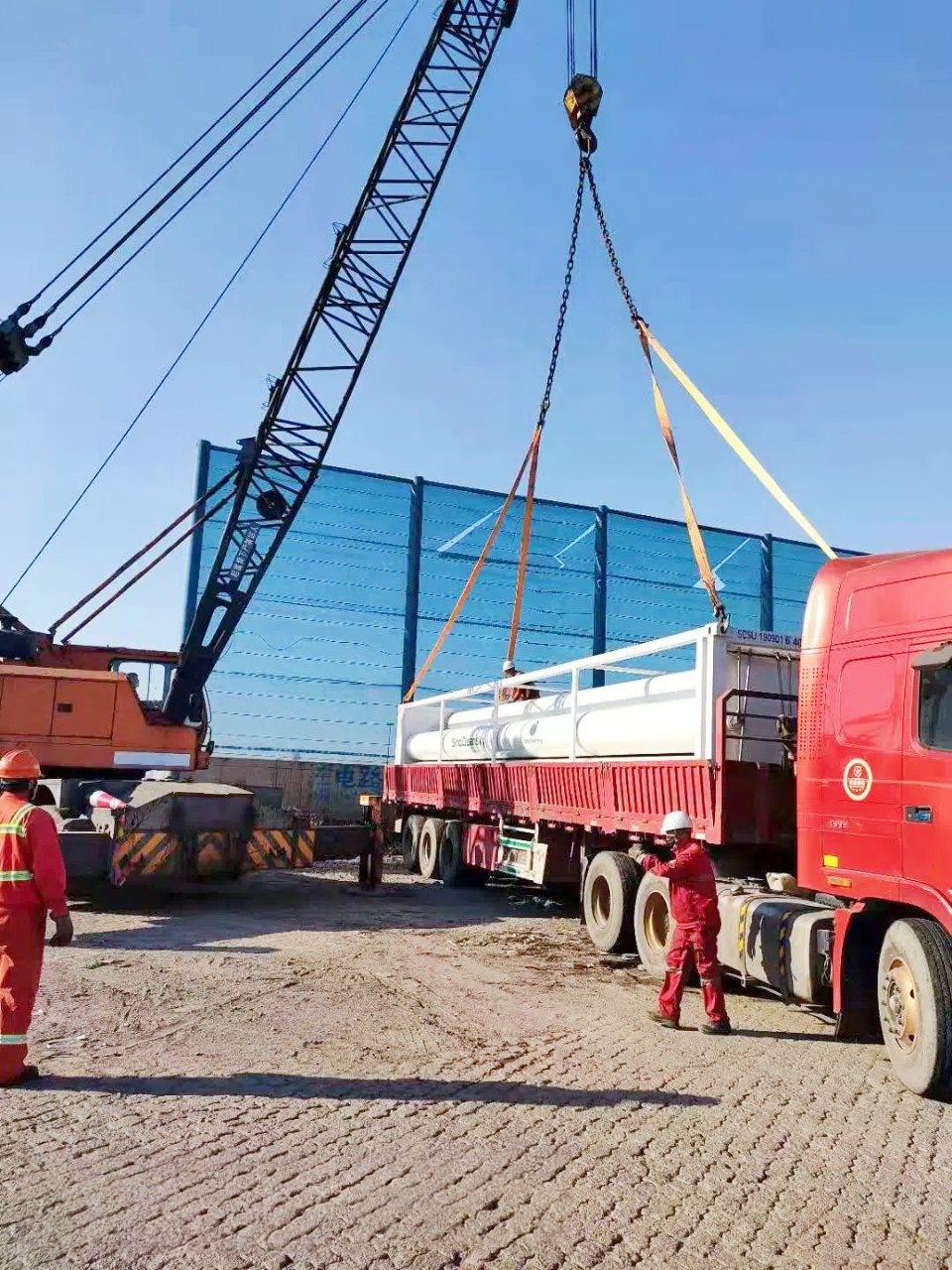

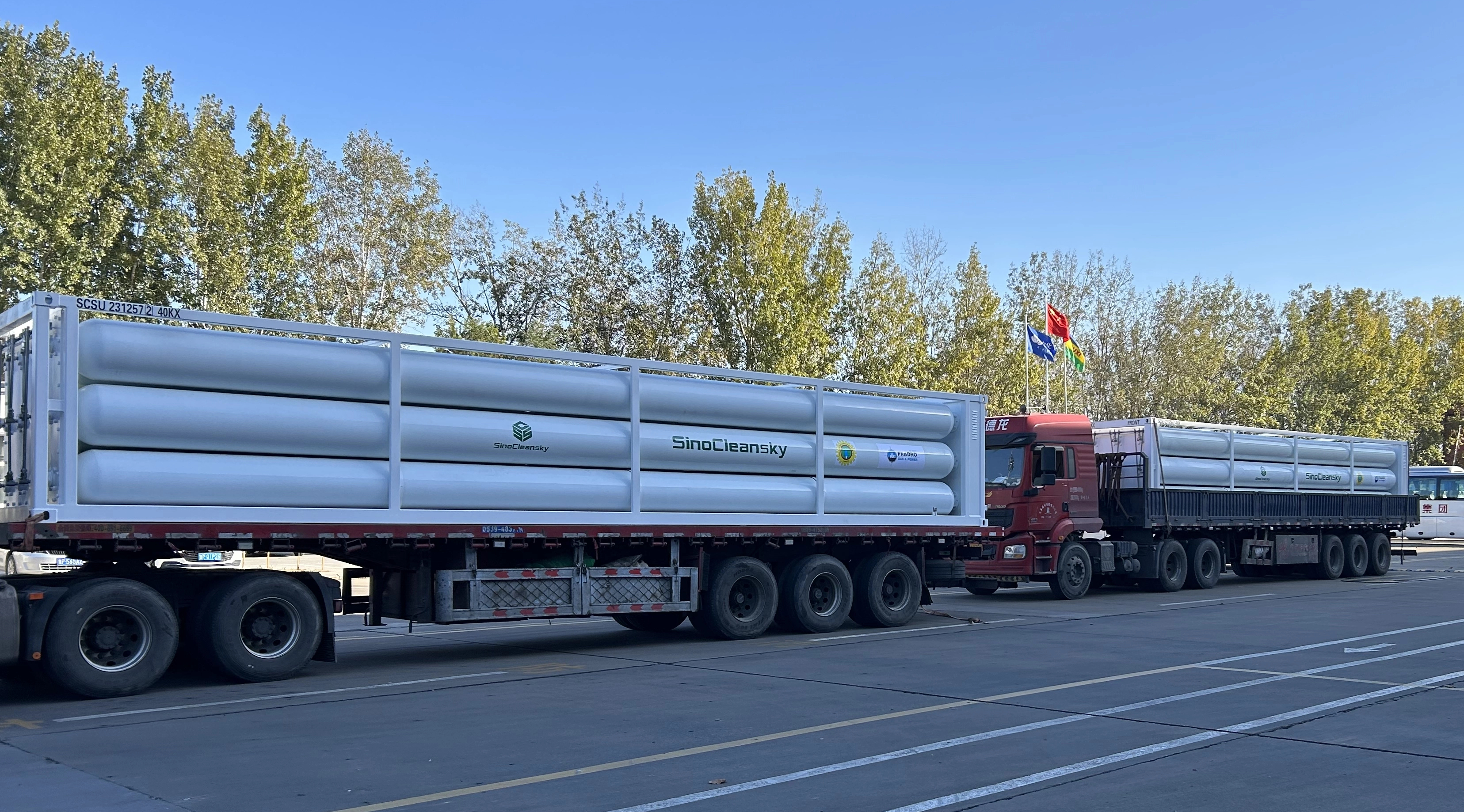

Jumbo transport: For bulk deliveries, SinoCleansky coordinates with jumbo trucks to transport the container directly to site—ideal for large-scale projects.
Regional logistics: Railway transportation is available for Central Asian clients, reducing delivery time and costs.
Documentation: Includes all necessary paperwork (certifications, inspection reports, packing lists) to streamline customs clearance.
