SinoCleansky specializes in providing a comprehensive solution of NGV (Natural Gas Vehicle), covering various products and services. Particularly, SinoCleansky has a strong advantage in providing the essential part of NGV, the high-pressure cylinder, which is used to store the compressed natural gas on board the vehicle or as back-up storage as cascade cylinders.

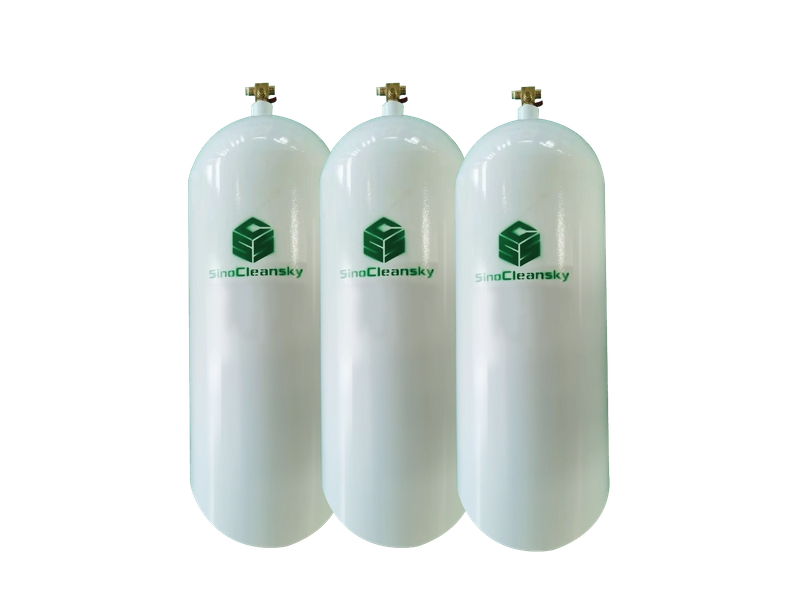

◆ Type I CNG steel cylinder for vehicle

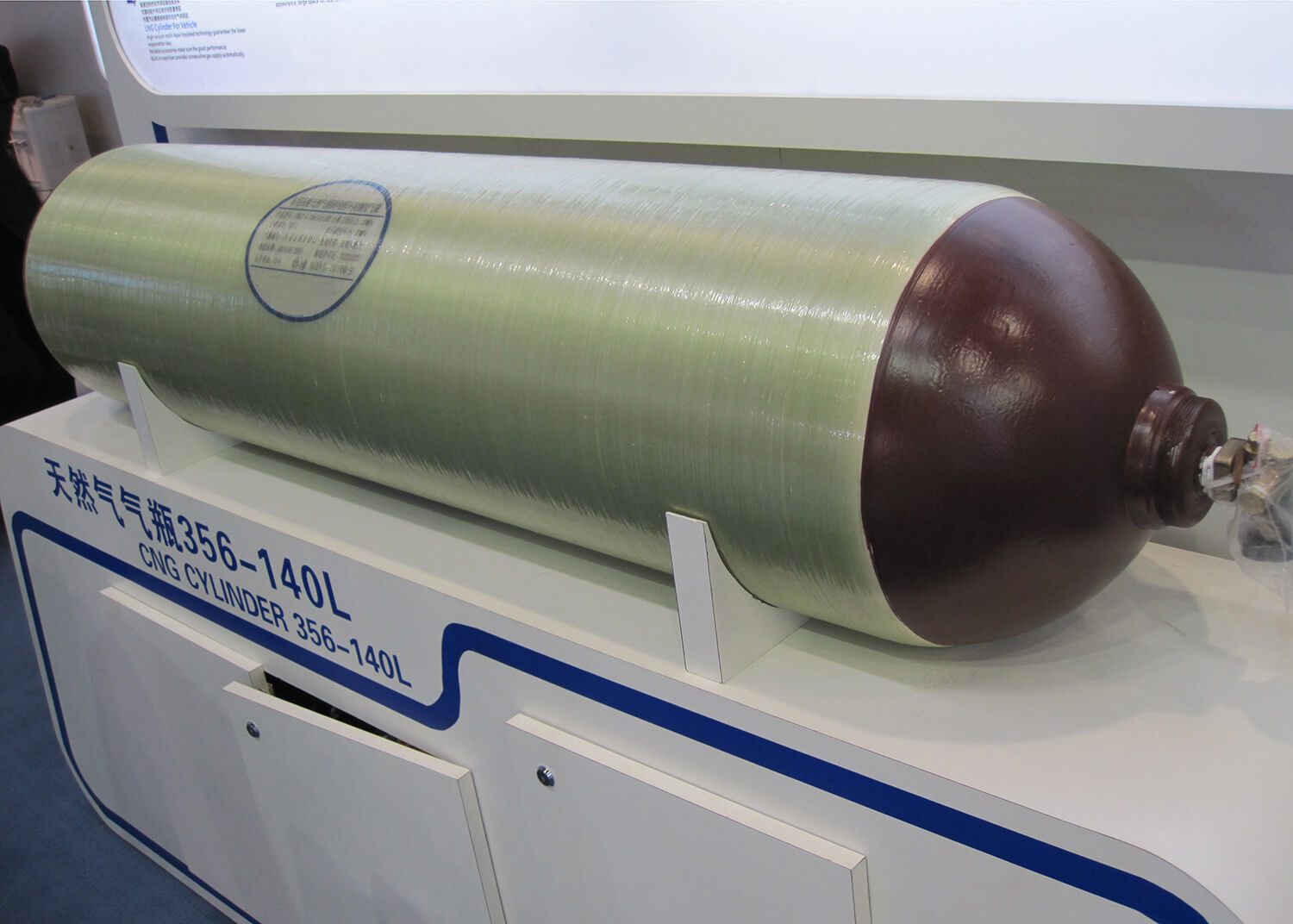

◆ Type II CNG composite cylinder for vehicle (steel liner hoop-wrapped with glass fiber)
◆ Type III CNG composite cylinder for vehicle (aluminum liner fully-wrapped with carbon fiber)
◆ CNG storage cylinder for cascade, both type I and type II and type III
SinoCleansky CNG cylinders (NGV) are manufactured as per different international standards, principally ISO11439, ISO11119, NZS5454, ECE R110, NGV2-2000, DOT etc. Our productions have been certified by the international third-party authorities including LRS, BV, SGS etc.

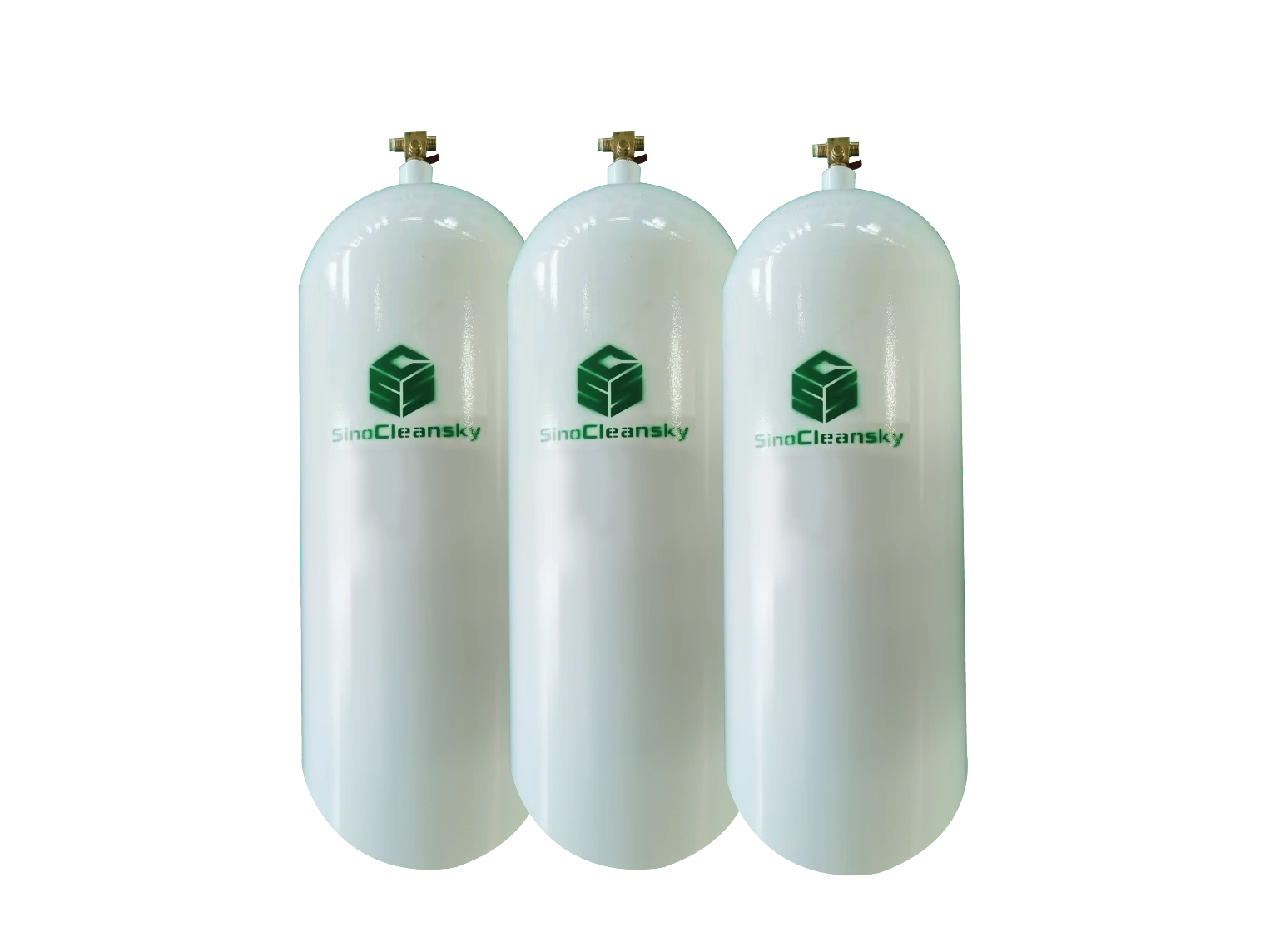

Type I CNG cylinder
Standard | Type |
ISO11439/ECER110 | OD232-20L-20MPA |
ISO11439/ECER110 | OD232-22L-20MPA |
ISO11439/ECER110 | OD232-28L-20MPA |
ISO11439/ECER110 | OD325-55L-20MPA |
ISO11439/ECER110 | OD325-60L-20MPA |
ISO11439/ECER110 | OD356-60L-20MPA |
ISO11439/ECER110 | OD356-75L-20MPA |
ISO11439/ECER110 | OD406-100L-20MPA |
ISO11439/ECER110 | OD356-145L-20MPA |
ISO11439/ECER110 | OD356-150L-20MPA |
NZS5454 | NZ232-22L-20MPA |
NZS5454 | NZ273-50L-20MPA |
NZS5454 | NZ325-55L-20MPA |
NZS5454 | NZ325-60L-20MPA |
Type II CNG composite cylinder
Standard | Type |
ISO11439/ECER110 | CRP325-55L-20MPA |
ISO11439/ECER110 | CRP325-60L-20MPA |
ISO11439/ECER110 | CRP356-65L-20MPA |
ISO11439/ECER110 | CRP356-75L-20MPA |
ISO11439/ECER110 | CRP406-100L-20MPA |
ISO11439/ECER110 | CRP356-145L-20MPA |
Type III CNG composite cylinder
Standard | Type |
NGV2 | CRP373-80L-3600PSI |
NGV2 | CRP383-200L-3600PSI |
Remark: The above specifications are only for typical types. For more types, please contact us directly.

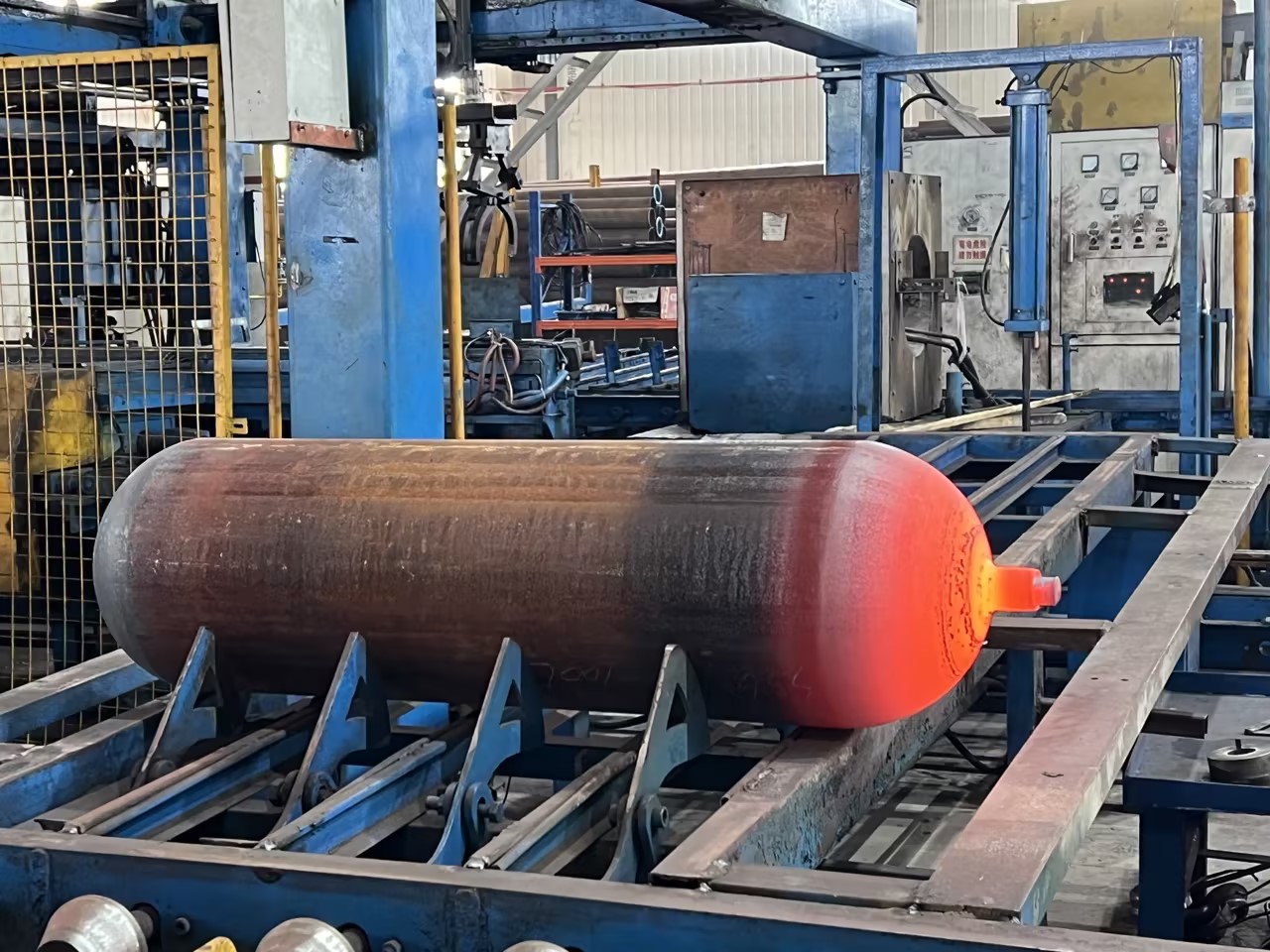

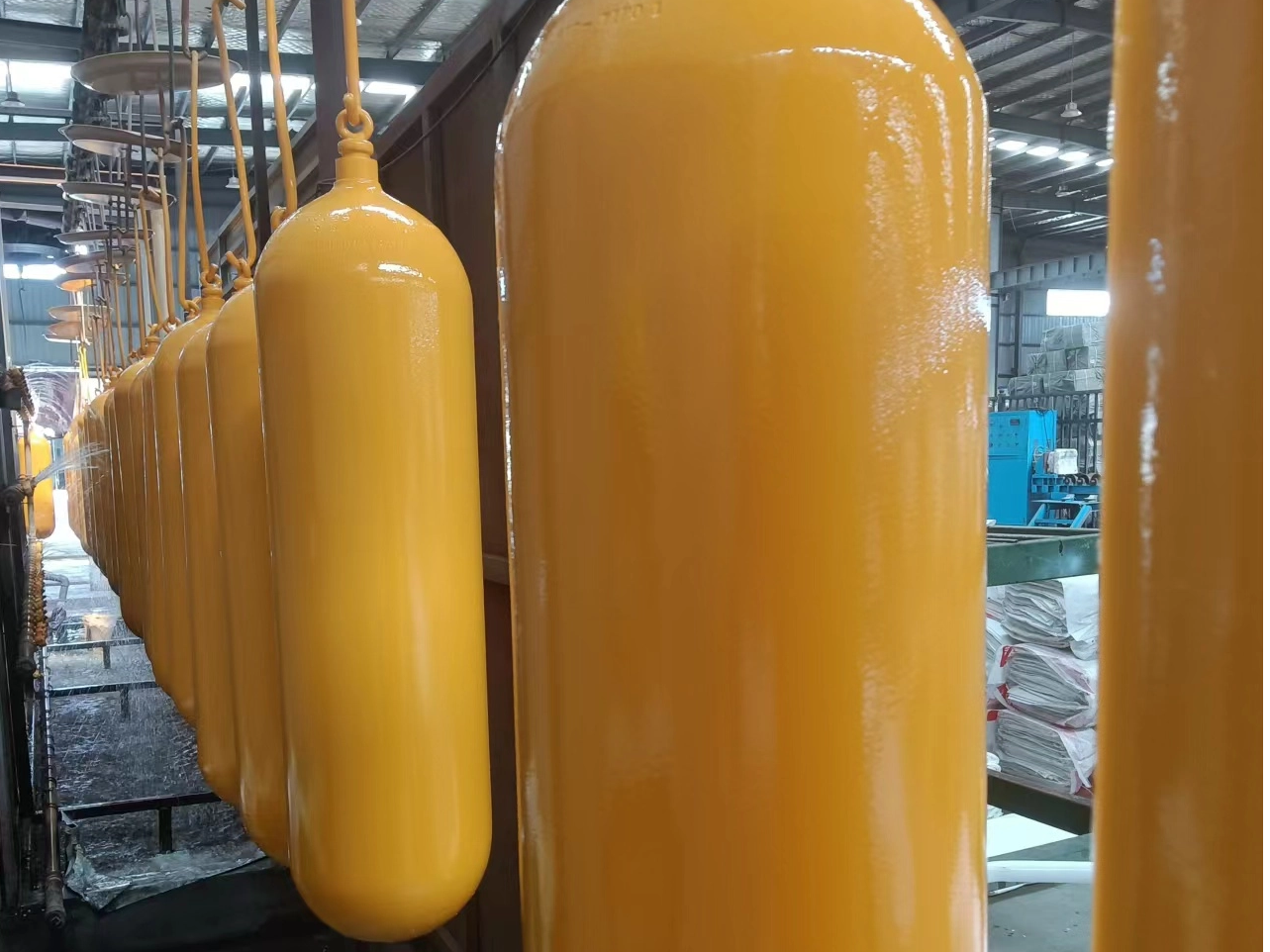

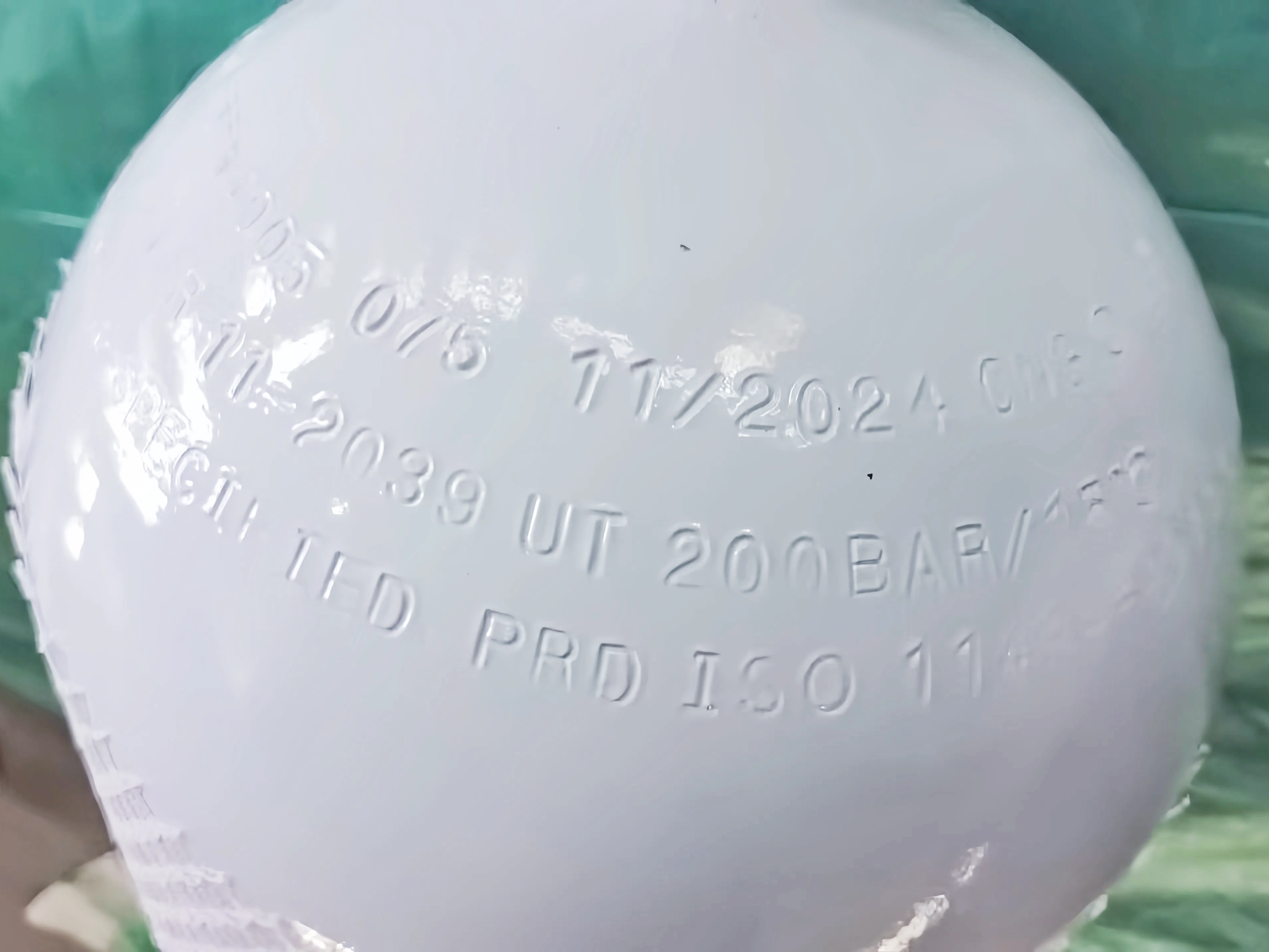

SinoCleansky CNG cylinders are manufactured under strictly compliant with international quality control system. The CNG cylinders are delivered with detailed test report, including the third-party certificate such as BV, SGS etc. and factory test report with which include: quality certification, hydrostatic test etc. We assure you that all cylinders are 100% traceable.

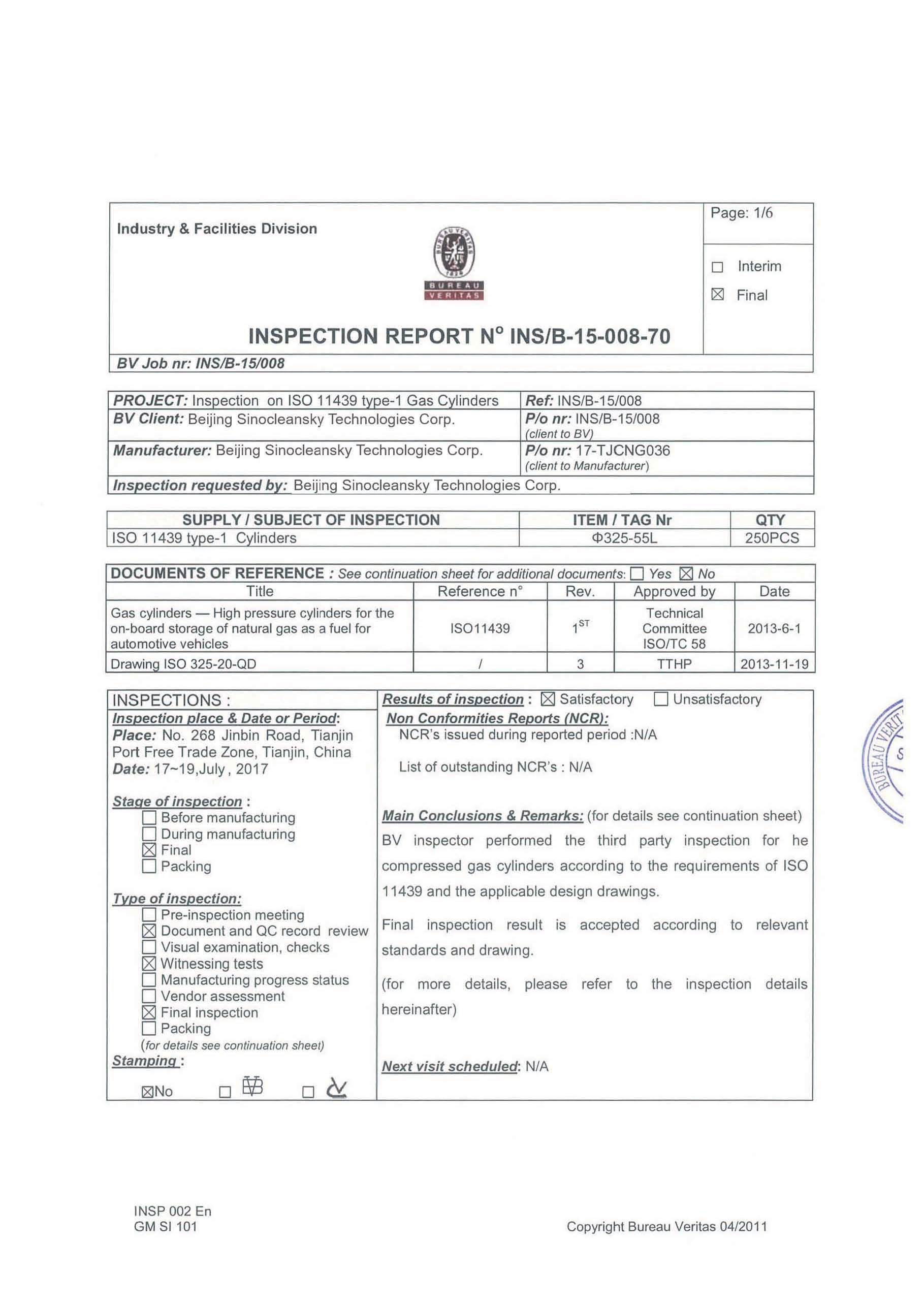

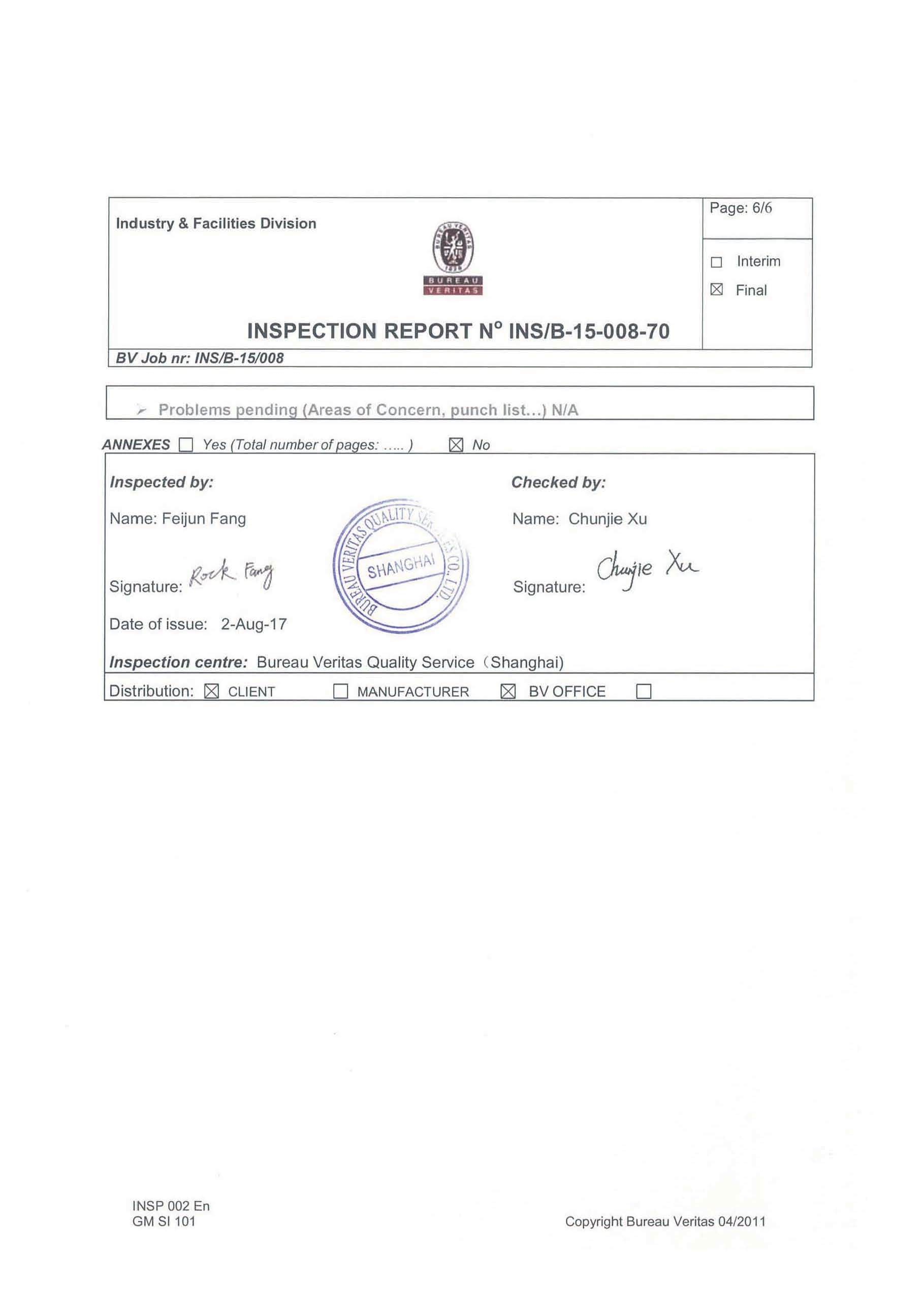

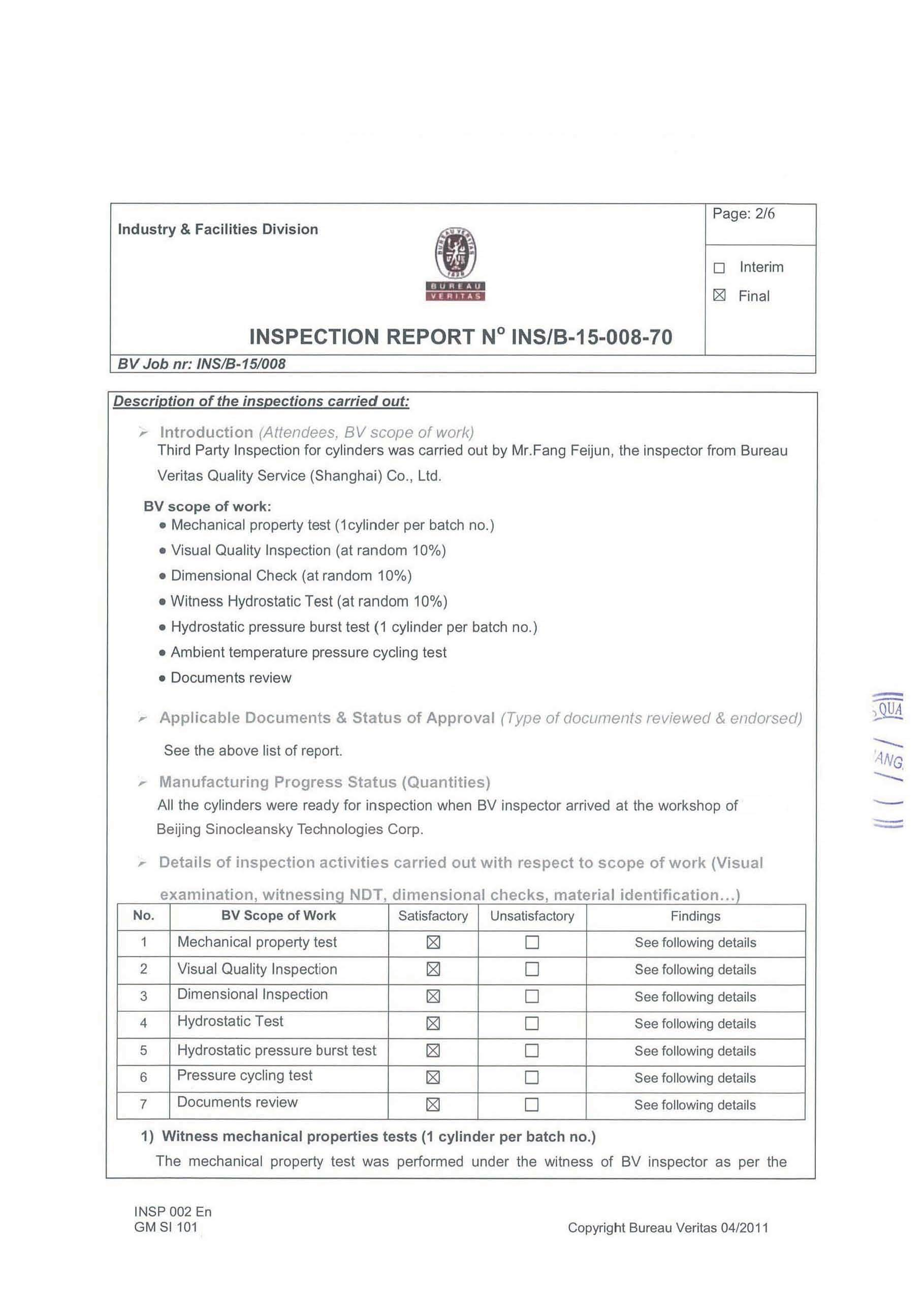

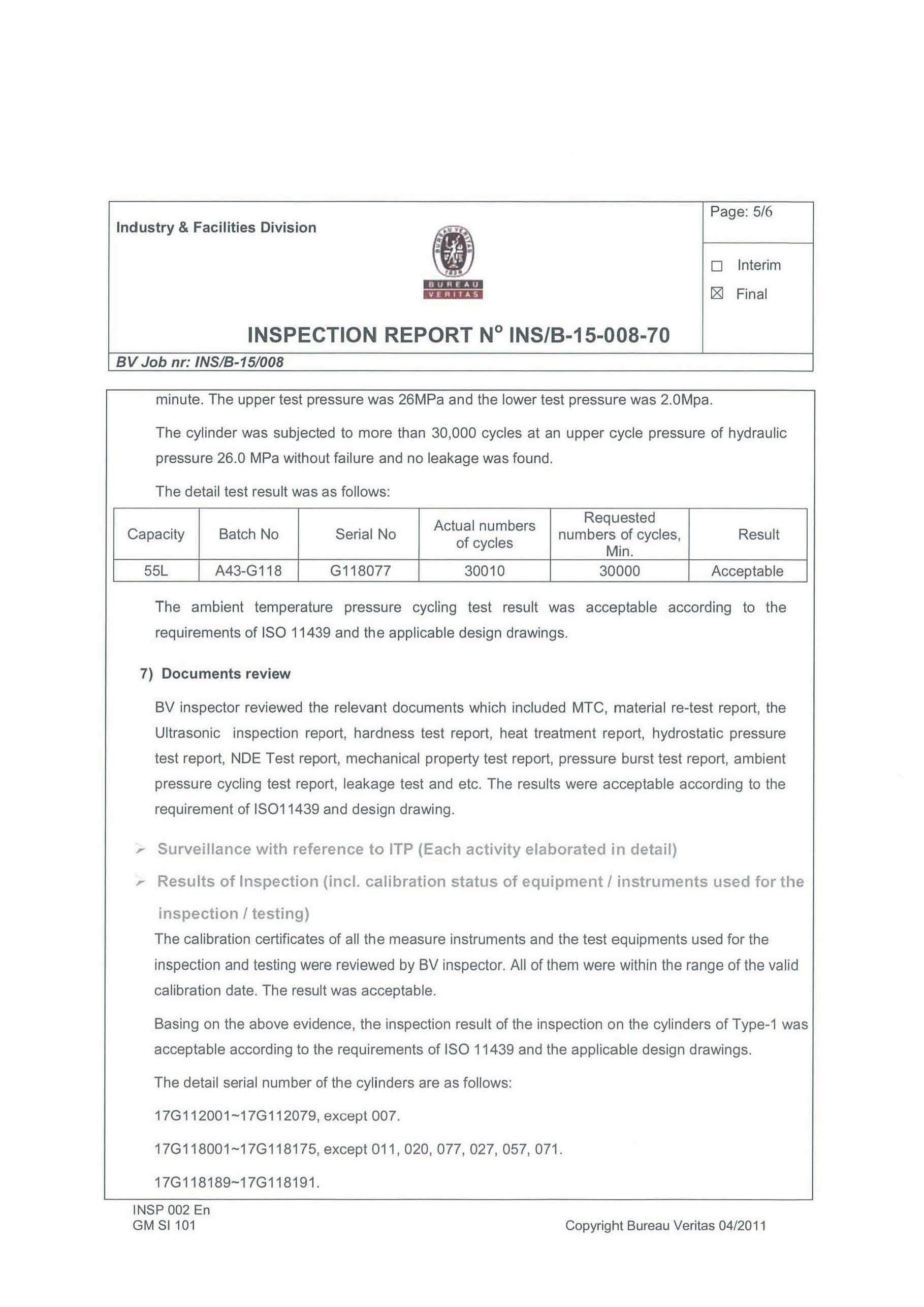

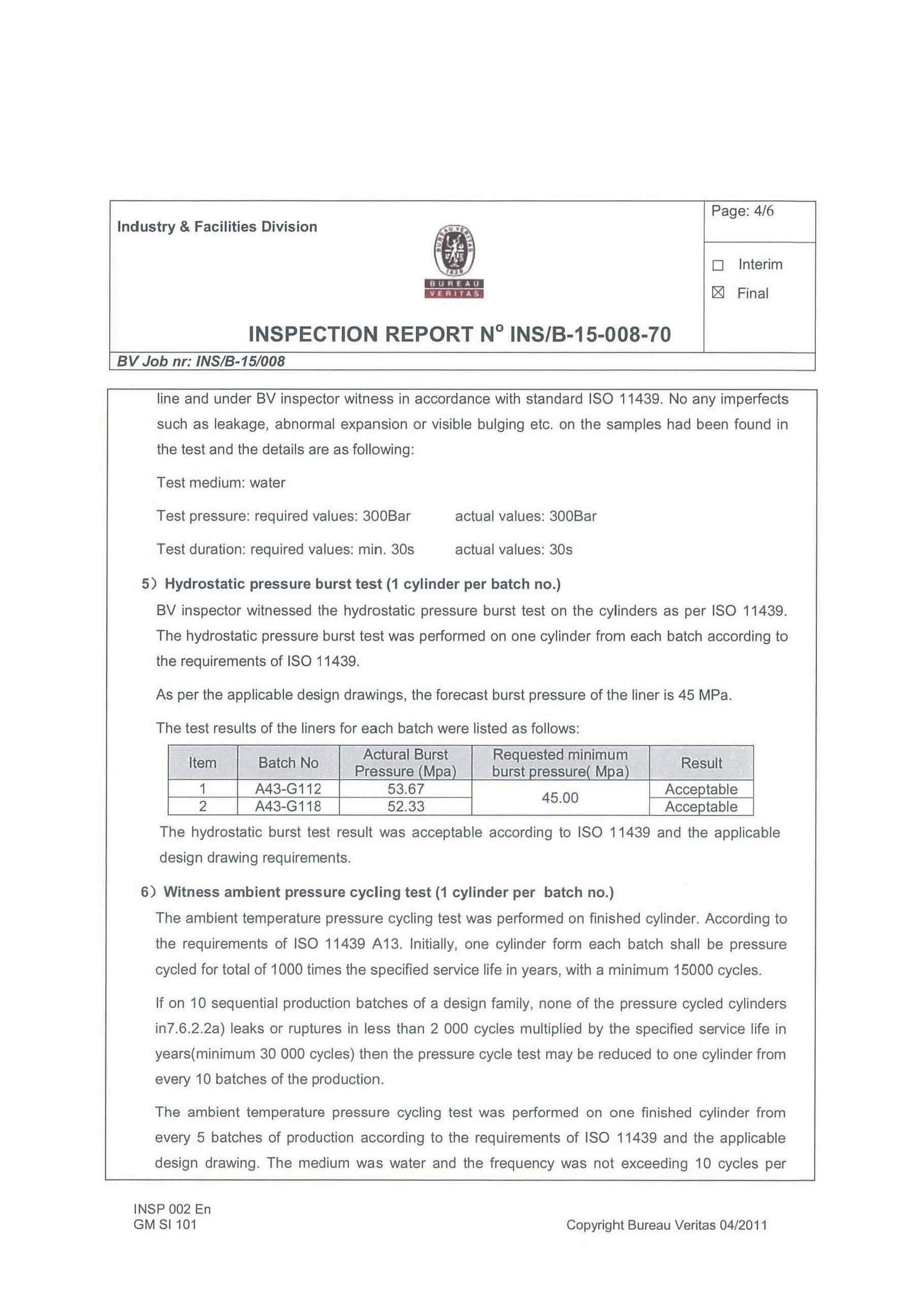

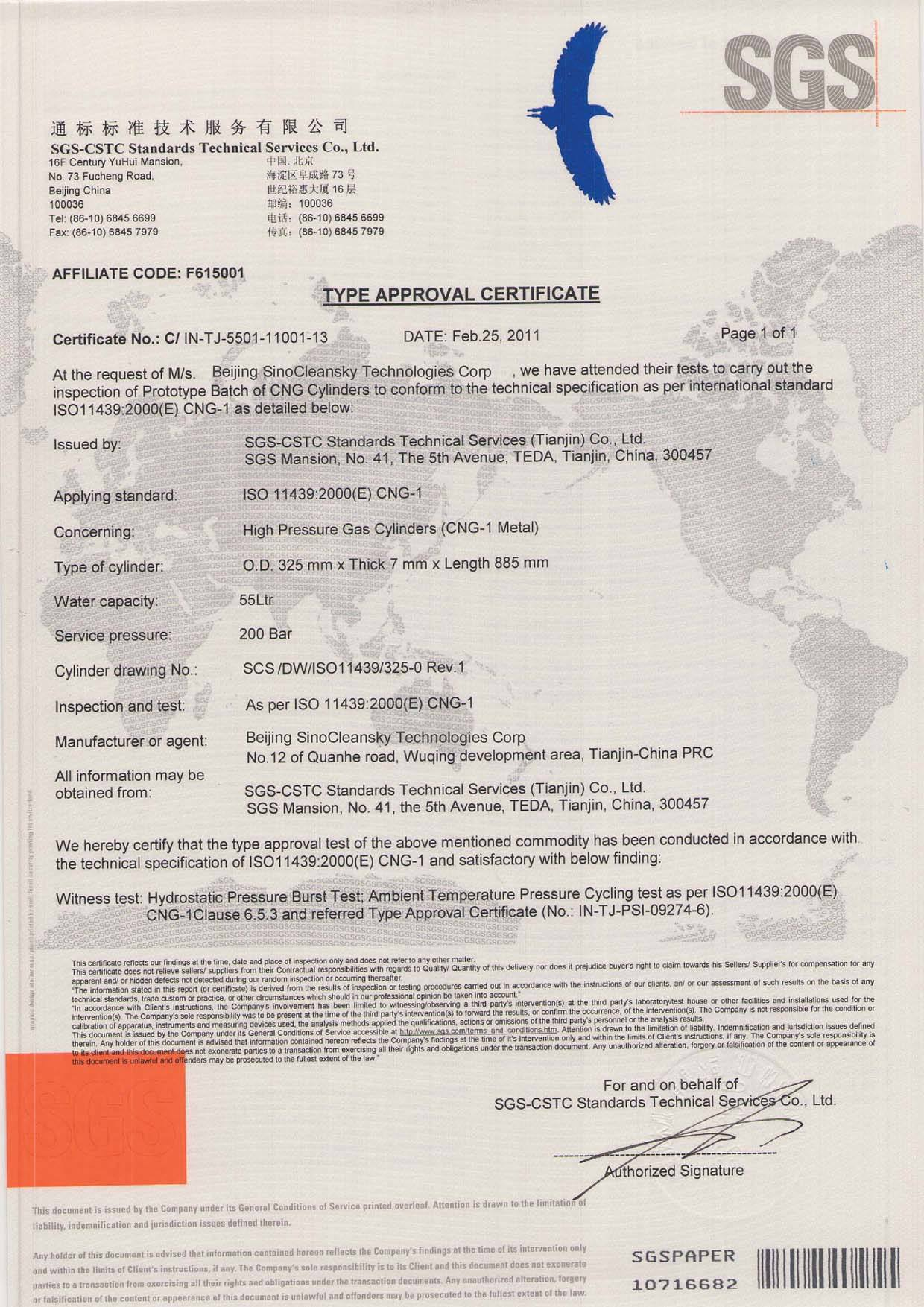

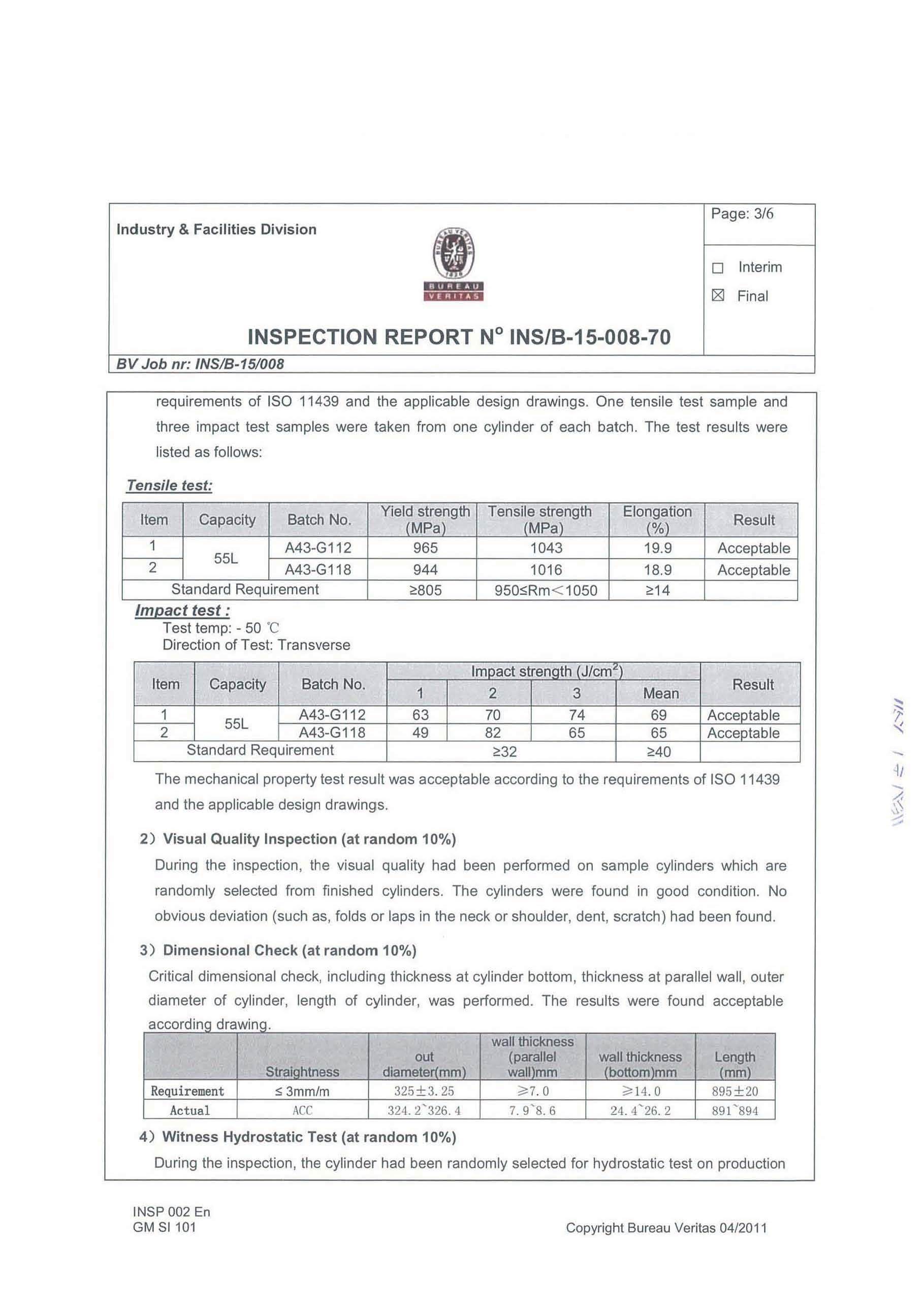

Reference certifications and reports:

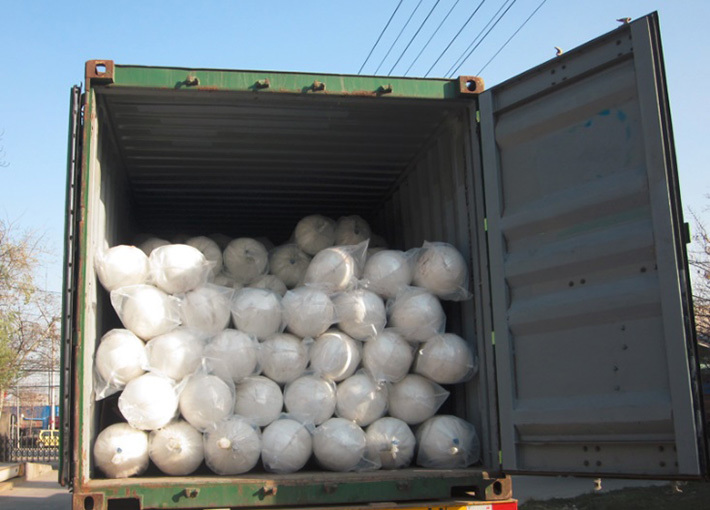

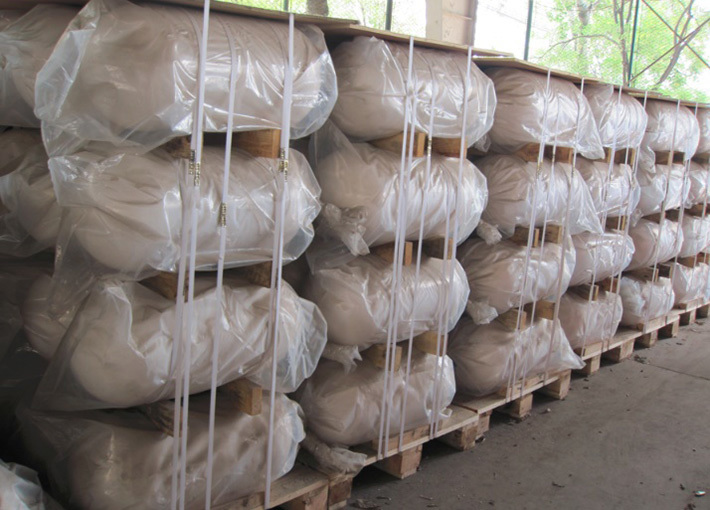

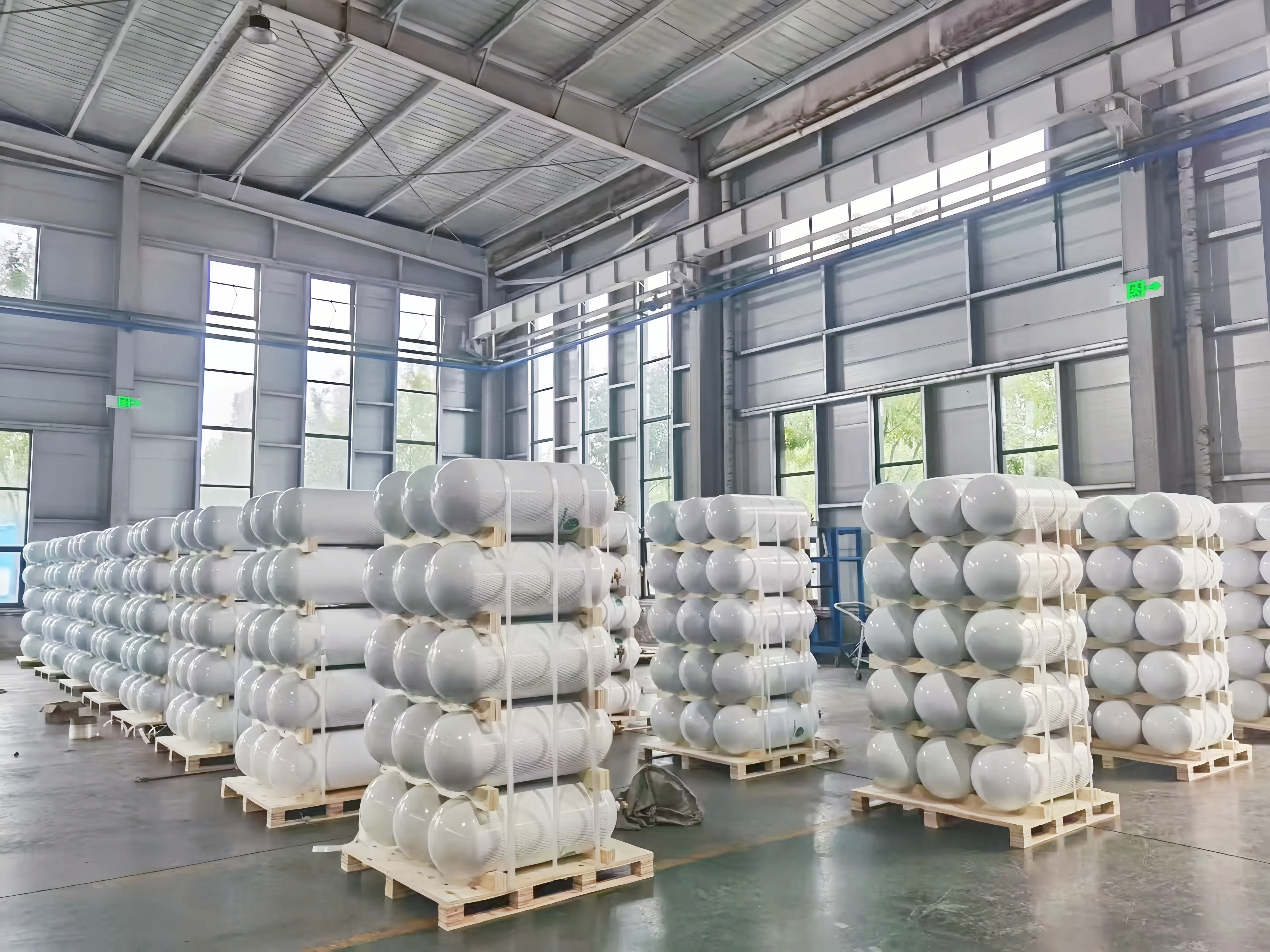

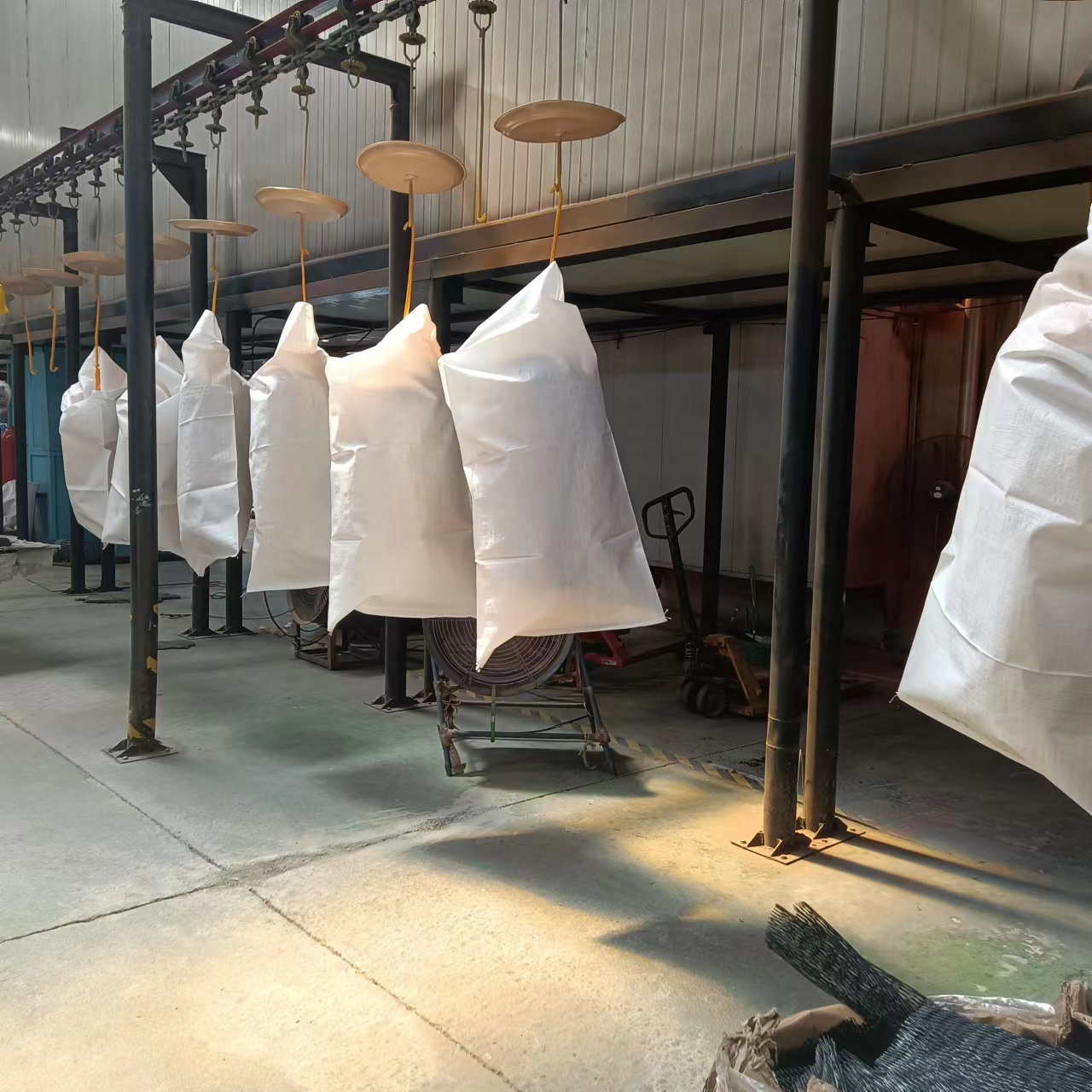

The CNG small gas cylinders can be packaged in cartons, plastic nets, or pallets, and are shipped in standard containers.
