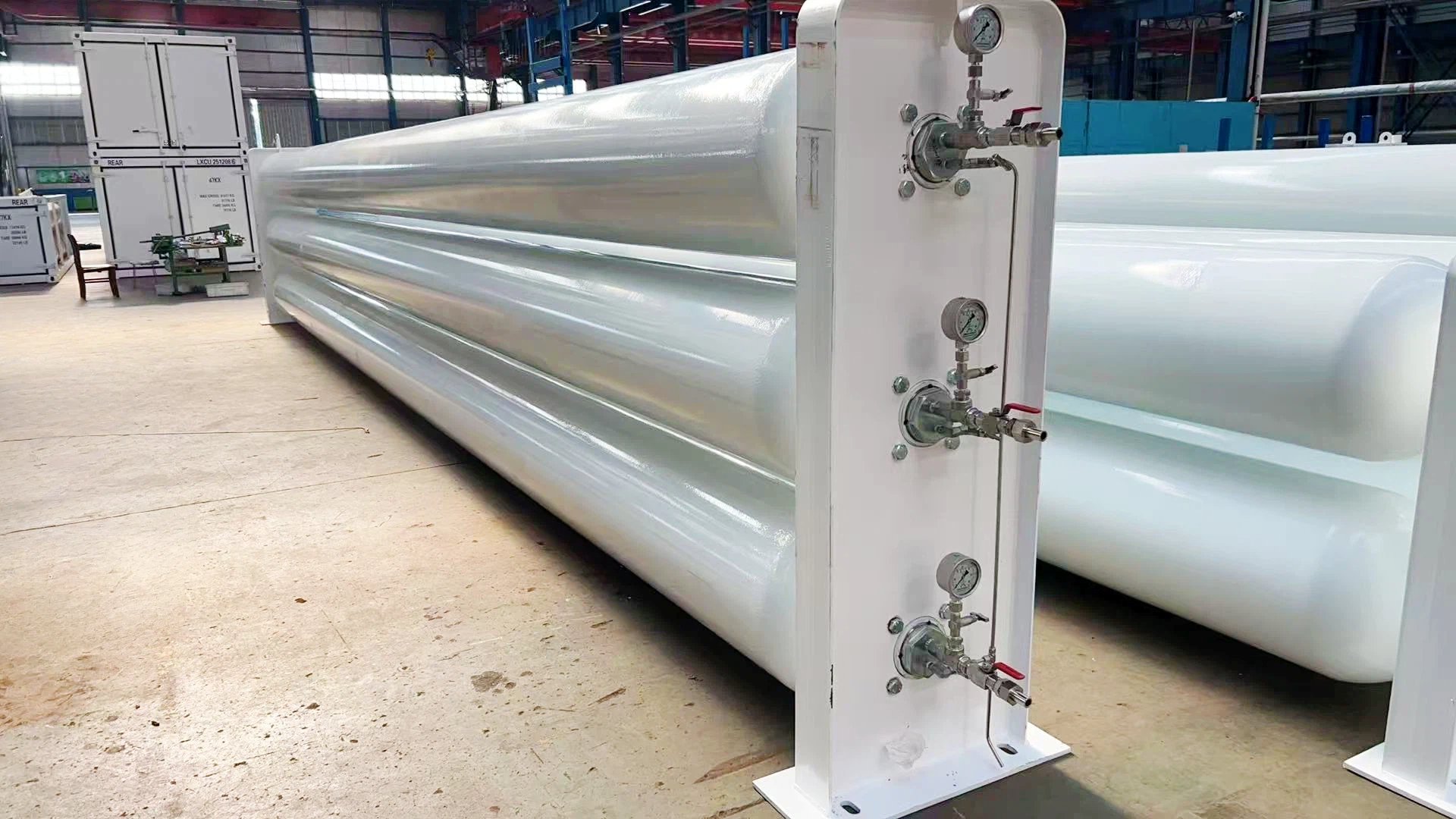

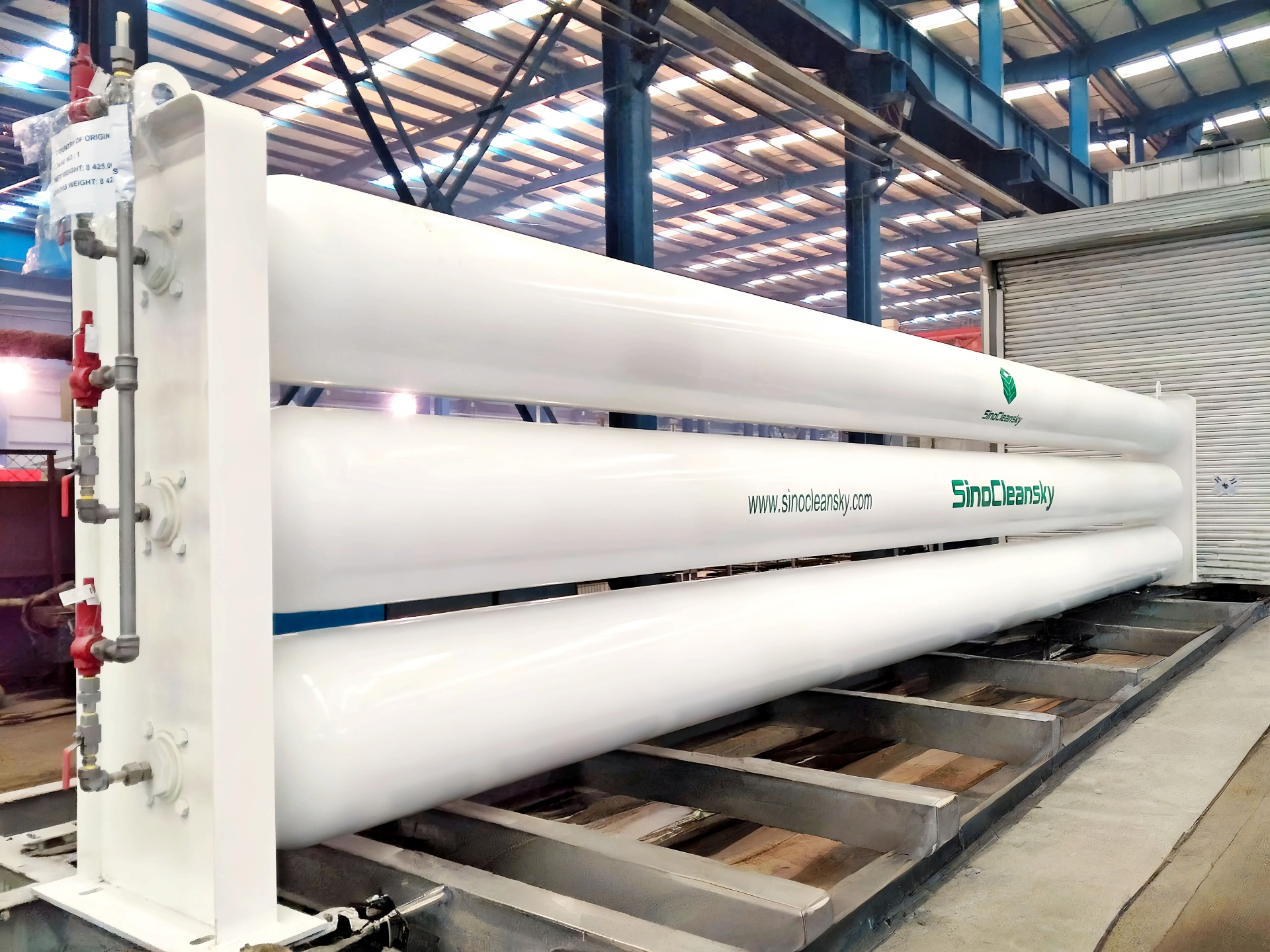

3 tubes jumbo cascade
SinoCleansky
3 tubes jumbo cascade is the most classic model for ground stationary storage:
Multiple tubes banked into stationary storage for CNG daughter-station supply, factory back-up, and compressed-air energy storage (CAES) for grid peak-shaving.
Compatible with CNG, H₂, He, compressed-air, Ar, N₂O, and other purified gases — spanning energy, industrial and medical applications.
It is a large-diameter seamless steel tube formed by heat-spinning from high-strength alloy steel (4142 for CNG/Air, 4130X for CNG/H₂), with 1000L-3000L water capacity per tube, designed per ISO 11120 for the safe, long-term storage and transport of gases at 25 MPa.
| Component | Description |
|---|---|

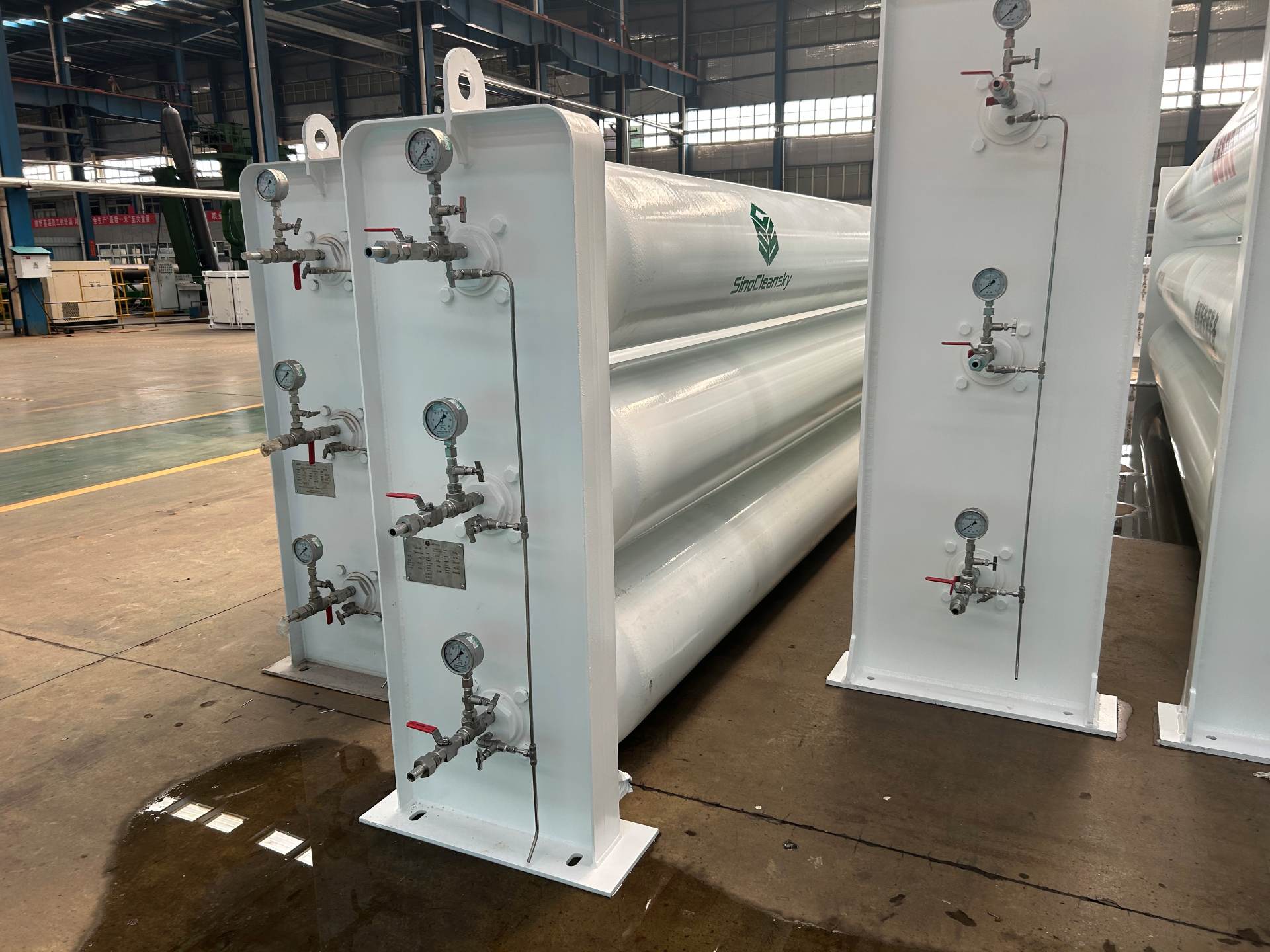

| Valve bank / header | Centralizes ESVs, shut-off valves and header piping to control filling / discharge of each bundle. |
| Gauges & instrumentation | Show real-time bundle pressure; optional T/P sensors for condition monitoring. |
| Safety relief devices | Auto-relief on overpressure with rupture disks for layered safety in storage and transit. |
| Filling / discharge couplings | Standardized quick couplings fit shore, mother- and daughter-station lines for fast hook-up. |
| Enclosure / lockable | Enclosed, lockable, weather- and dust-proof, explosion-safe. |
Customized products for cascade under ISO11120 standard with TPED approval.
| Model No. | SCS03-2450-CNG | SCS03-2320-CNG | SCS03-1066-CNG | SCS03-2380-CNG | SCS03-2210-CNG | SCS03-1050-CNG |
| Cylinder quantity | 3 | 3 | 3 | 3 | 3 | 3 |
| Filling medium | CNG | CNG | CNG | CNG | CNG | CNG |
| Working Pressure | 25Mpa | 25Mpa | 25Mpa | 25MPa | 25Mpa | 25Mpa |
| Working temperature | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ | -50℃~65℃ |
| Steel type | 4142 | 4142 | 4142 | 4130X | 4130X | 4130X |
| Cylinder Wall thickness(mm) | 14.8 | 14.8 | 14.8 | 17.4 | 17.4 | 17.4 |
| Cylinder Water Capacity(L) | 2450 | 2320 | 1066 | 2380 | 2210 | 1050 |
| Cylinder Diameter(mm) | φ559 | φ559 | φ559 | φ559 | φ559 | φ559 |
| Cylinder Length(mm) | 11585 | 10985 | 5400 | 11580 | 10950 | 5400 |
| Cylinder weight(kg) | 2520 | 2450 | 1154 | 2930 | 2764 | 1370 |
| Water volume/M³ | 7.35 | 6.96 | 3.20 | 7.14 | 6.63 | 3.15 |
| Filling gas volume/Nm³ | 2,315 | 2,192 | 1,007 | 2,249 | 2,088 | 992 |
Remark: The above specifications are only for typical types. The more accurate & detailed parameters and technical drawings are available upon request
SinoCleansky CNG jumbo tube products are manufactured under strictly compliant with international quality control system. The CNG jumbo cylinders are inspected by International Third-Party BV/TUV/LRs as per ISO11120 std, with inspection report submitted to clients. With client's requirement, SinoCleansky will also provide some other certificates as per client's request. We assure you that all jumbo cylinders are 100% traceable.
Reference certifications and reports:

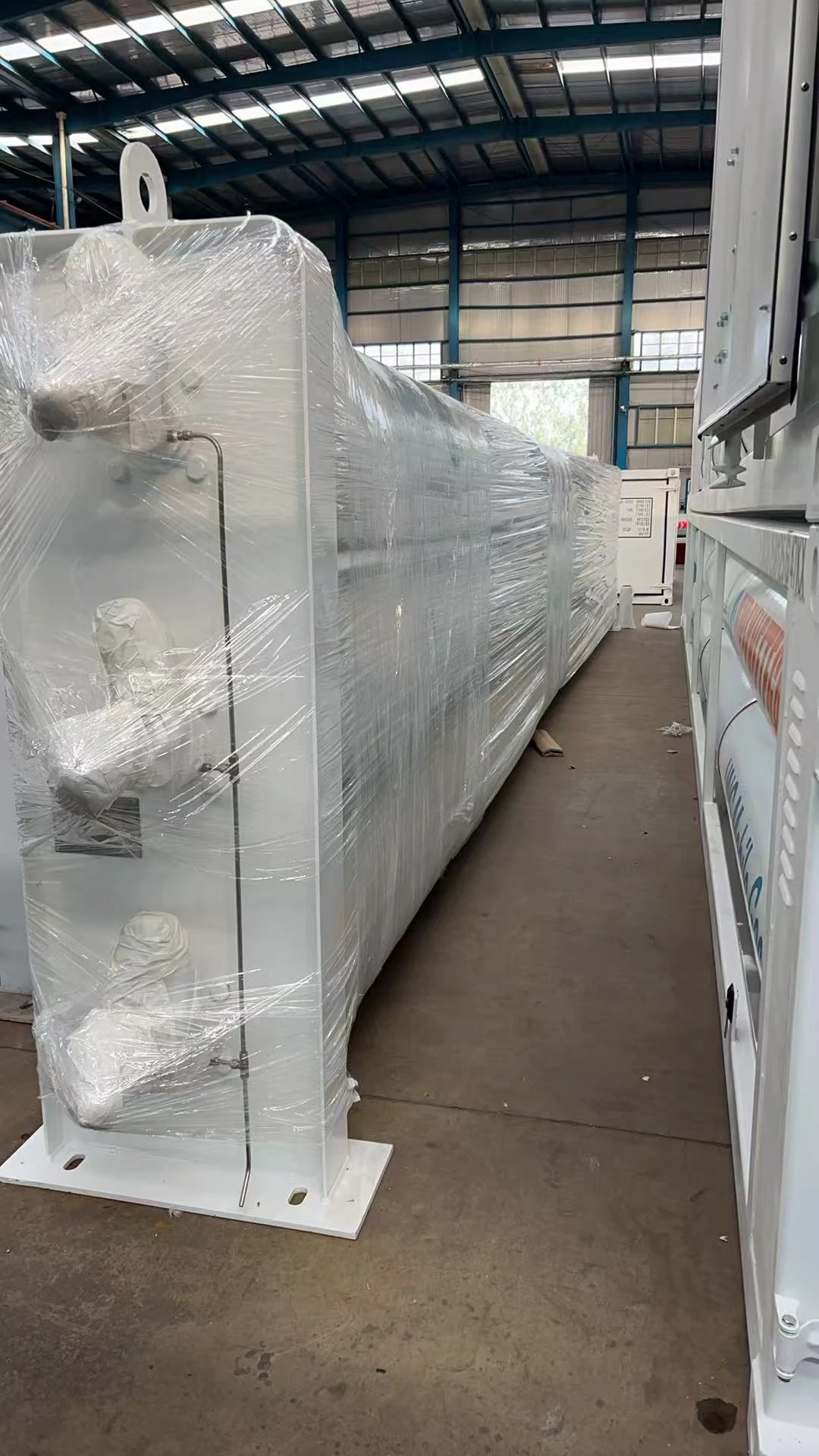

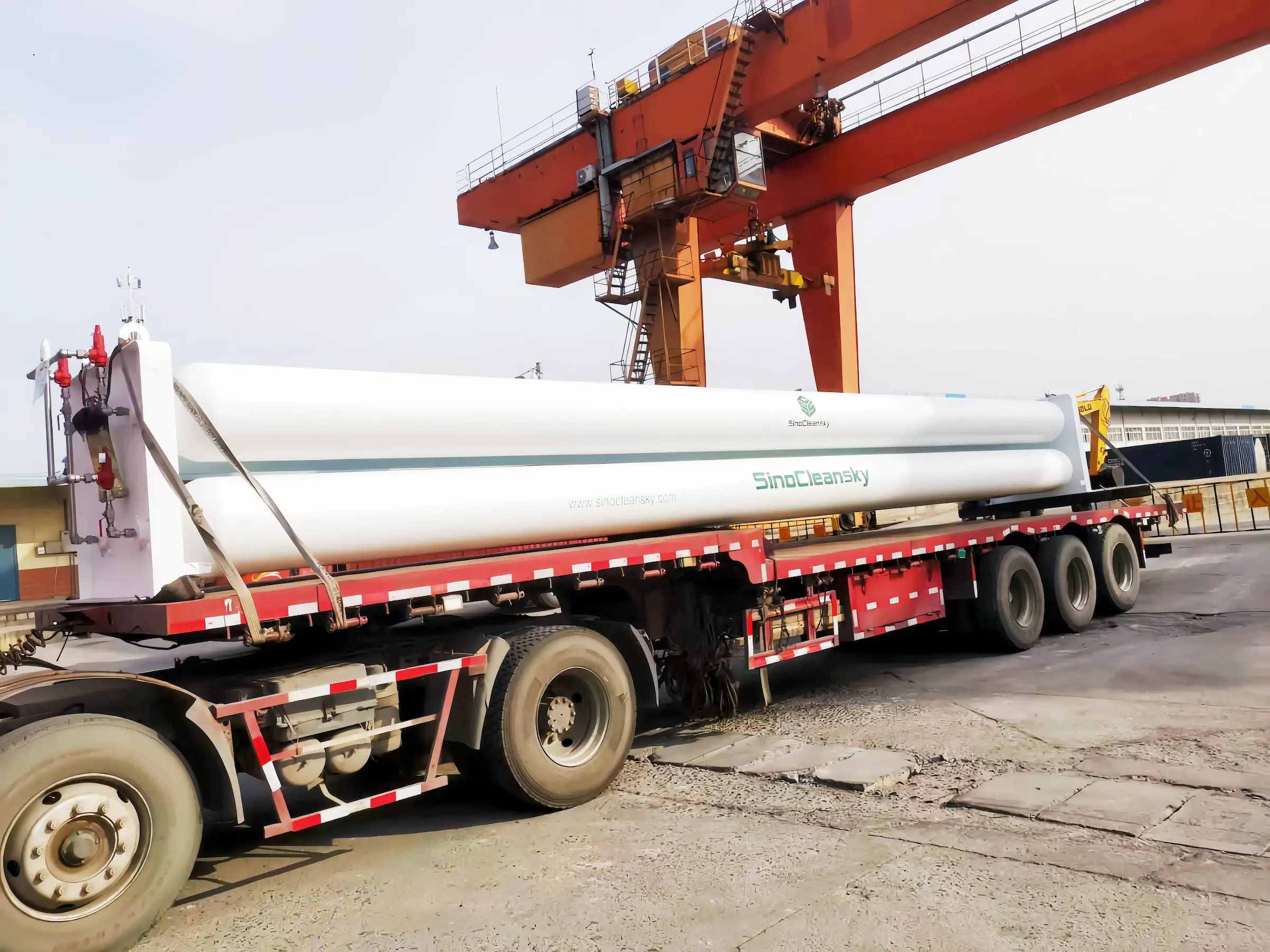

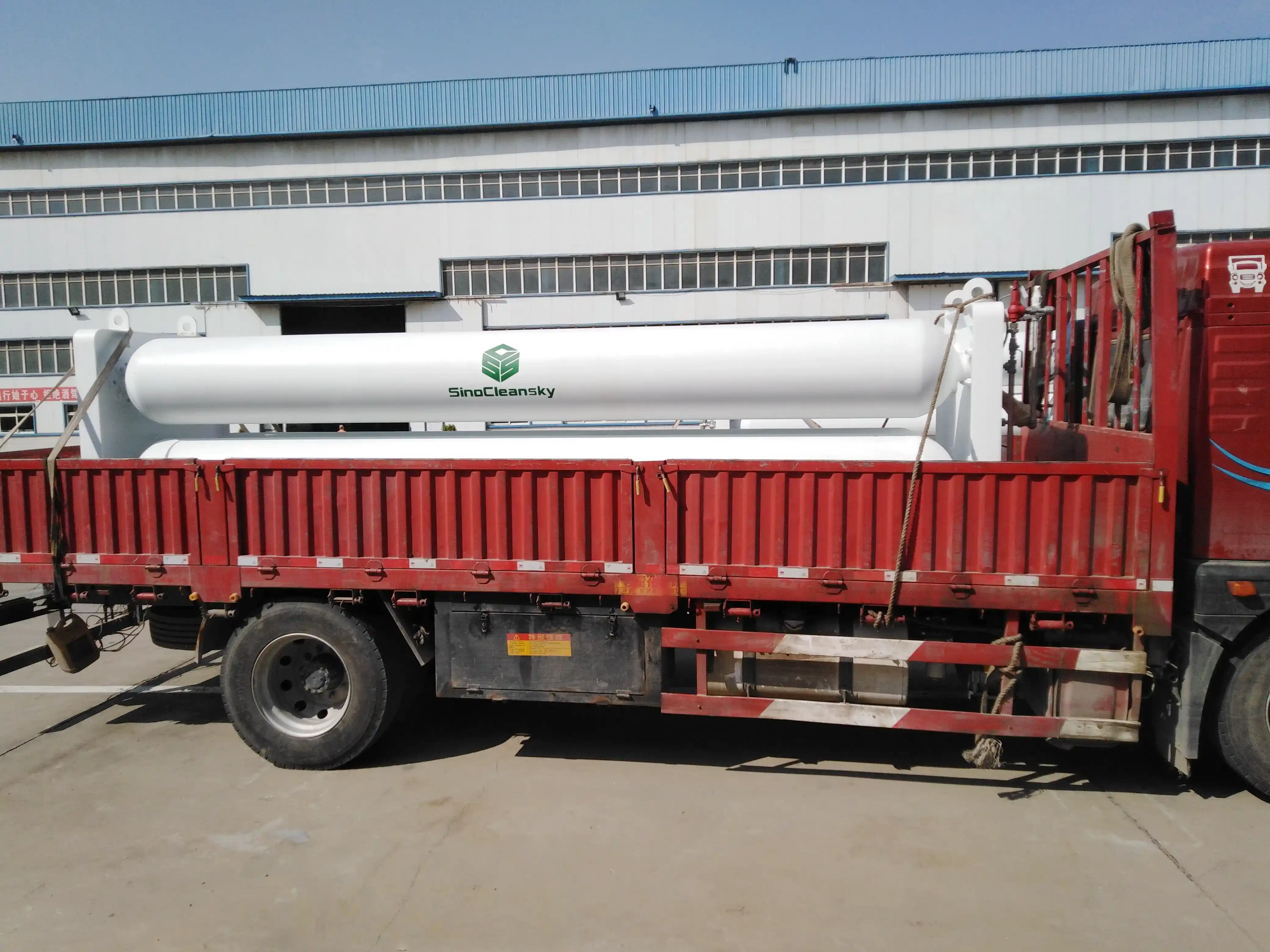

The CNG jumbo tube cascade can be shipped by standard containers, open top containers, or bulk cargo based on sizes. The cylinder cascade will be delivered with special protection if in container.
