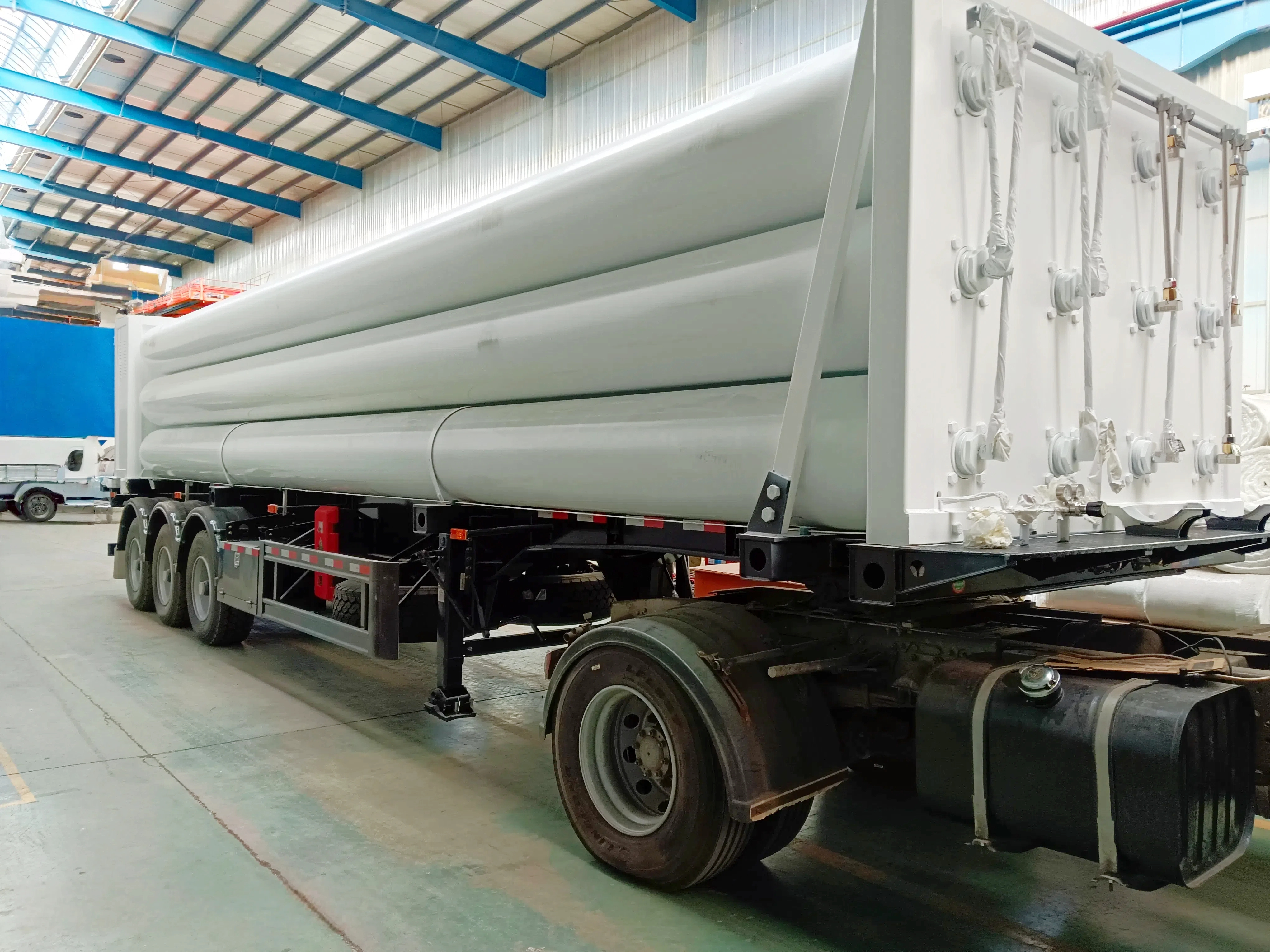

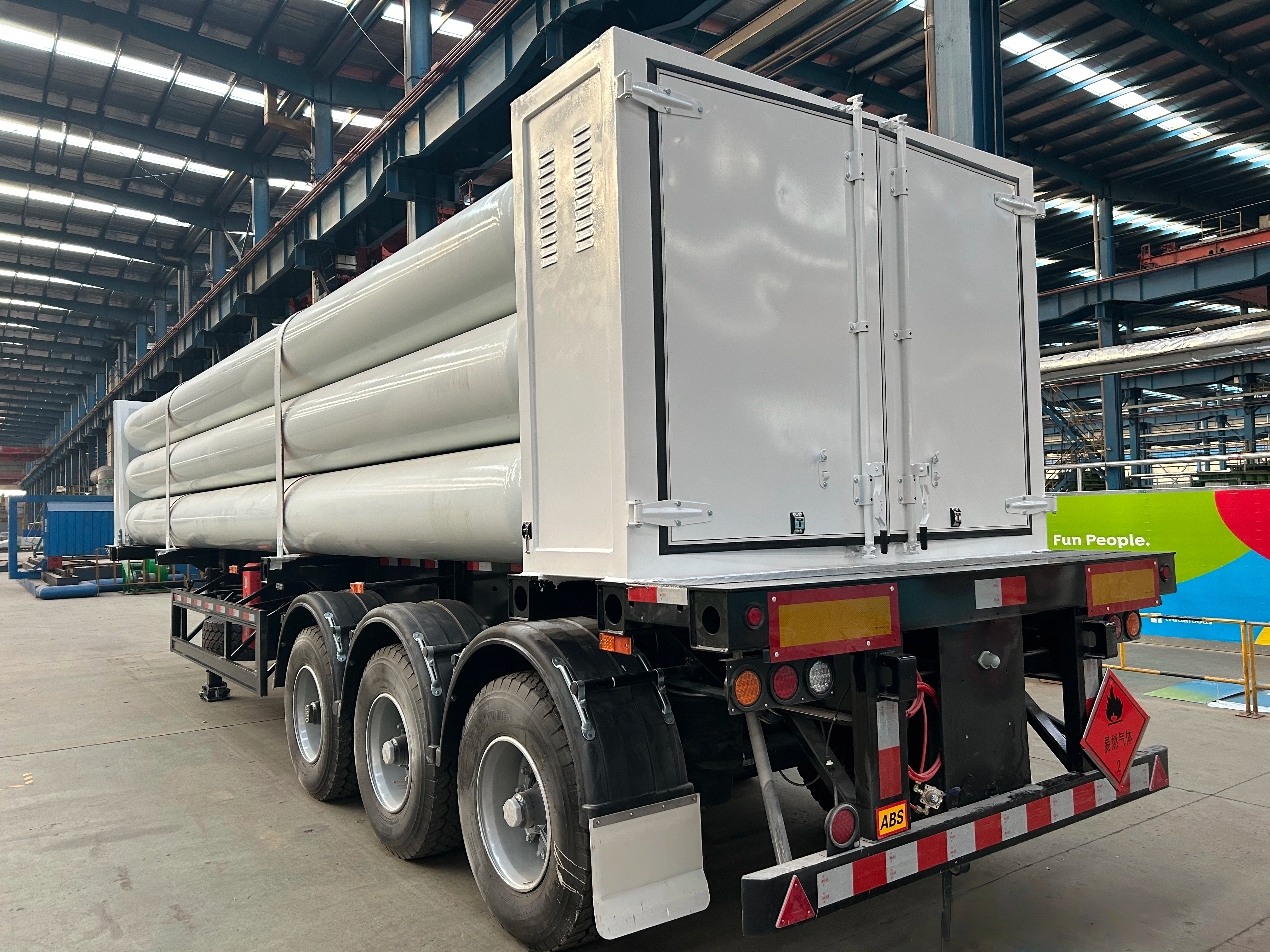

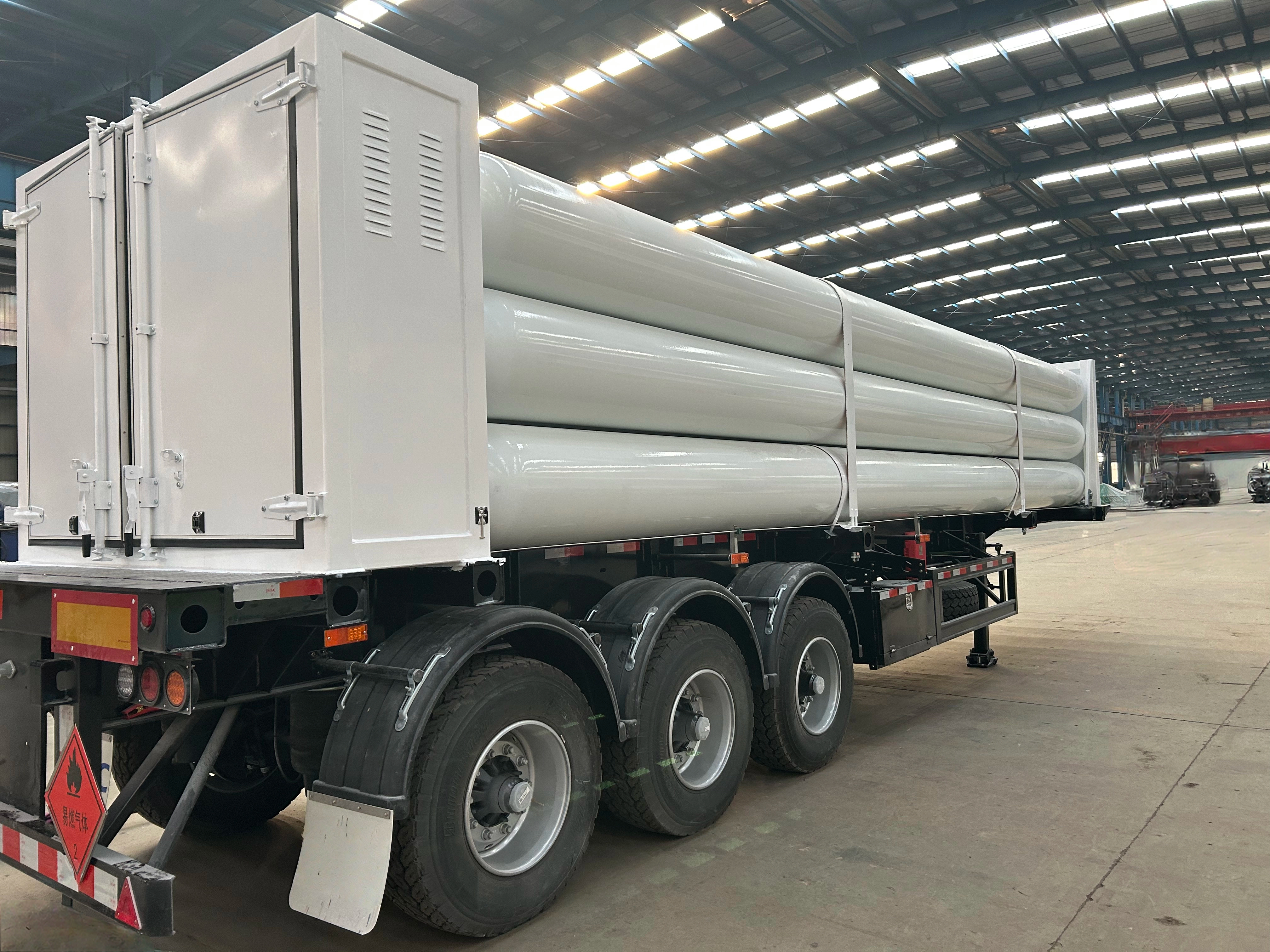

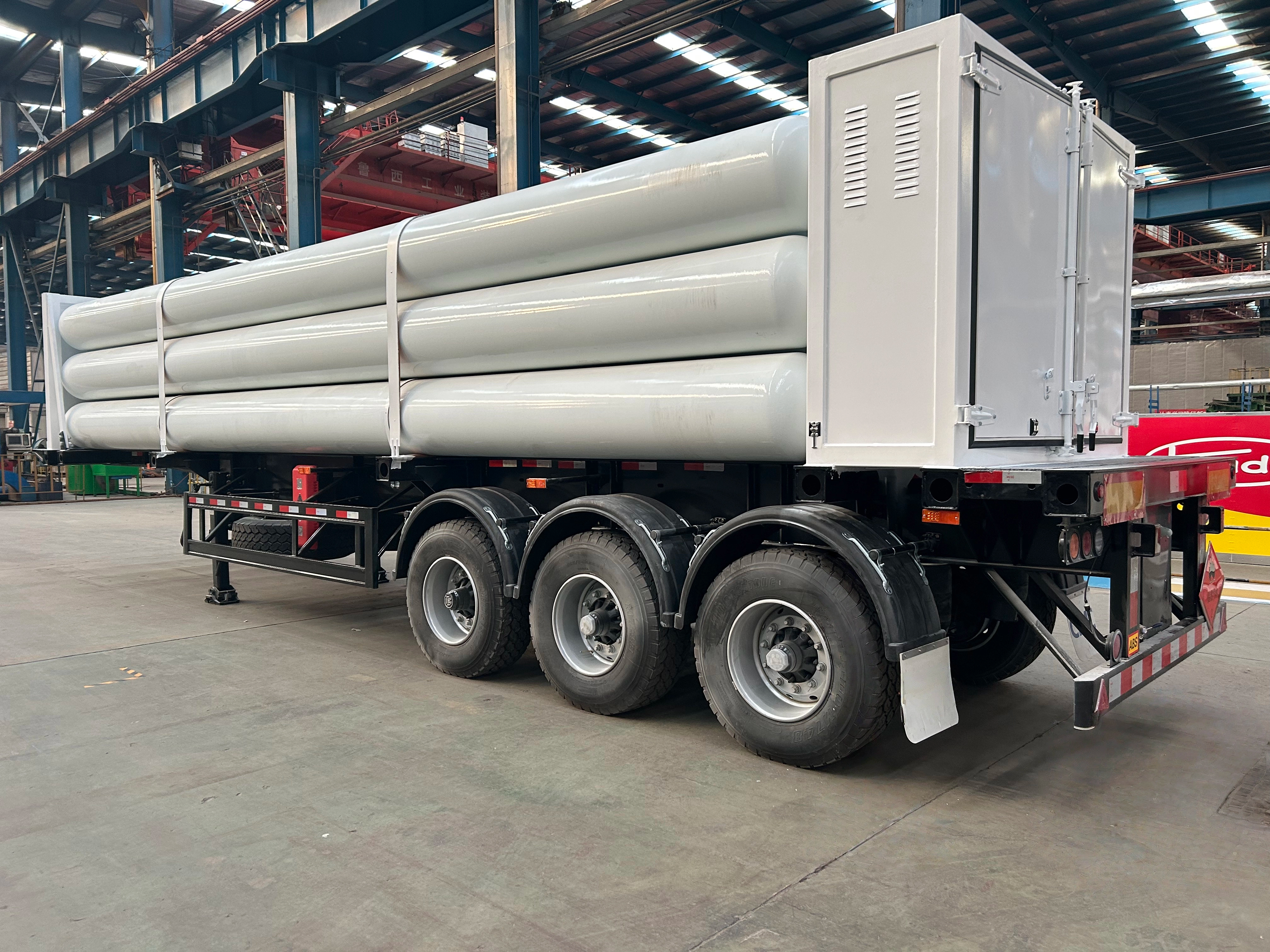

SinoCleansky jumbo tube trailers are widely used for CNG transportation. The jumbo tubes are with international third-party test report as per ISO11120 standard, with TPED and ADR certificate.
12 tubes 40ft jumbo trailer, maximum capacity could achieve 29.4M³ (same with Jumbo Tube Skid container)
The chassis is designed for 3 axles.

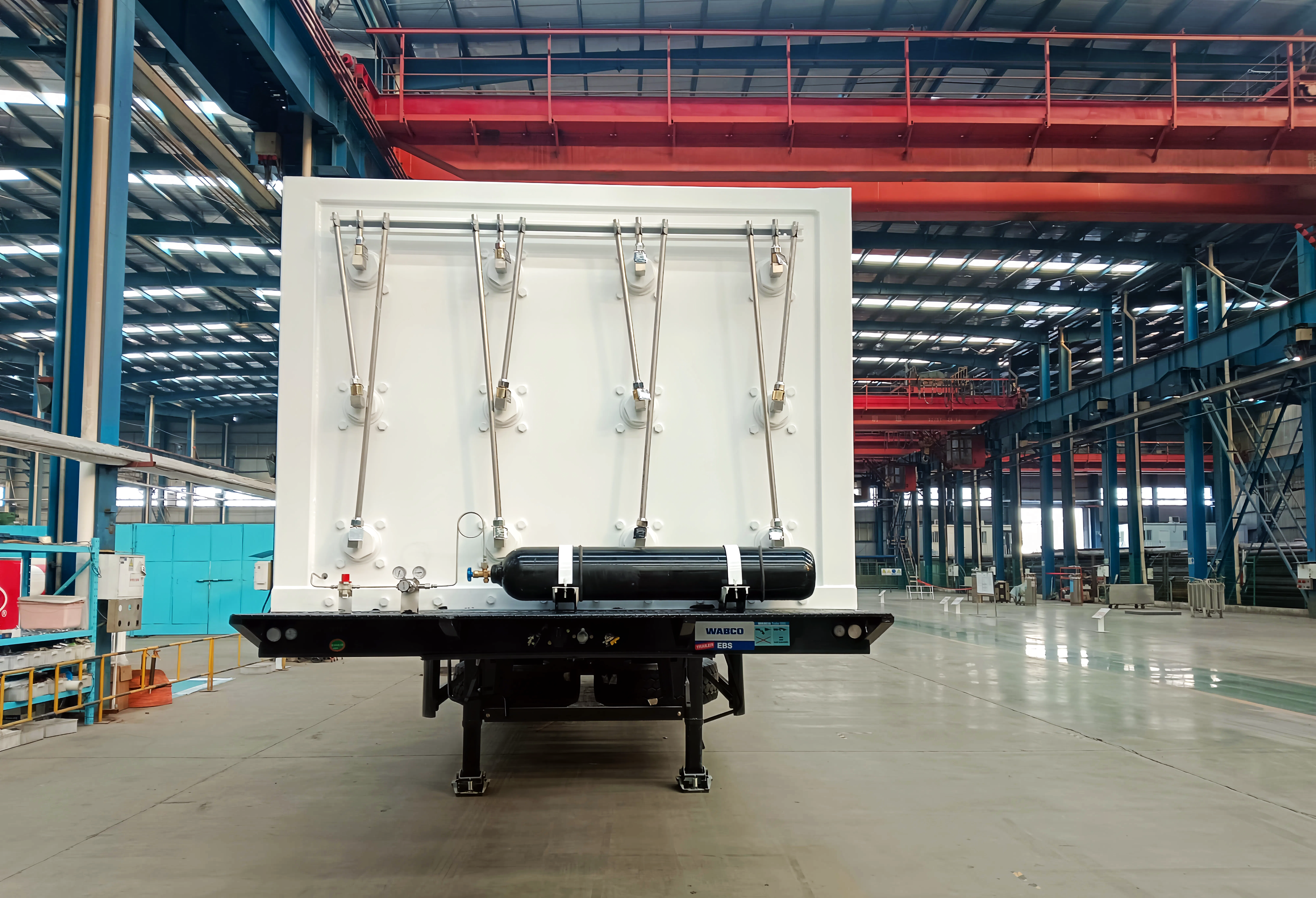

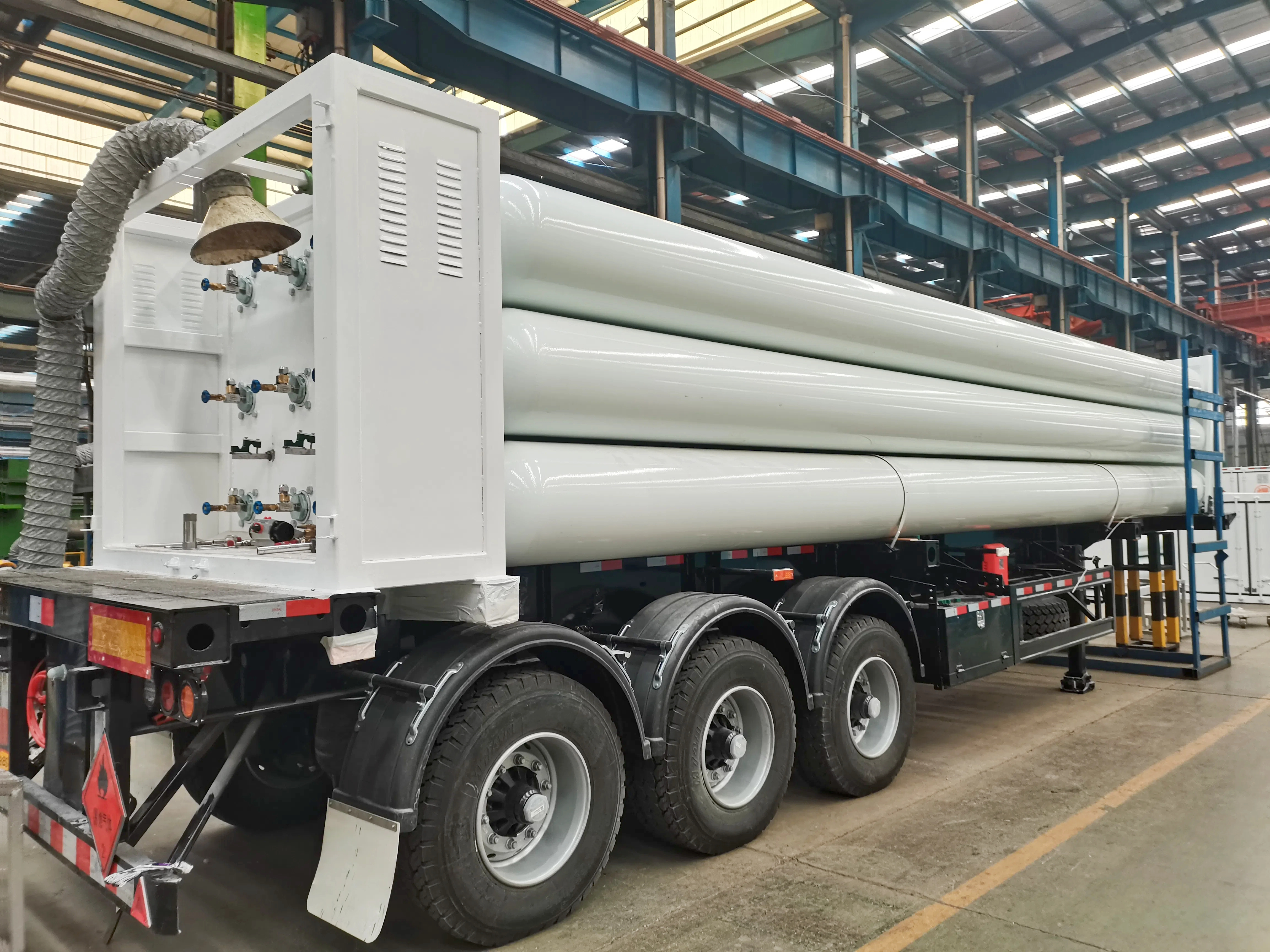

Integrated loading and unloading interface + intelligent control system. One person can complete the connection, and the operation time is reduced by 60%.

Crafted from high-strength materials, CNG Transport Trailers are engineered to withstand high pressure and harsh conditions, ensuring durability and long-term use. Their advanced safety features, including pressure relief valves and robust containment systems, guarantee secure transportation, minimizing risks and ensuring compliance with industry standards. The streamlined design not only enhances safety but also improves fuel efficiency, reducing operational costs and environmental impact.
With customizable capacities and configurations, CNG Transport Trailers cater to a wide range of transportation needs. Their user-friendly design simplifies loading and unloading processes, saving time and boosting productivity. Additionally, the trailers' lightweight construction maximizes payload capacity without compromising on strength or safety.
By choosing CNG Transport Trailers, businesses can align with sustainable practices while maintaining operational excellence. These trailers are a testament to innovation, offering a greener alternative for energy transportation without sacrificing performance. Invest in CNG Transport Trailers – where sustainability, safety, and efficiency converge to drive the future of energy logistics.
More customized types : 6 tubes, 8 tubes, 9 tubes, 10 tubes, 11 tubes, 16 tubes, etc.
Please click "Technical Spec" to get more information.
Popular Light Type for CNG, max. capacity up to 16tubes-40ft 39.2m3.
Model No. | SCS0825CS-40F-559 | SCS0925CS-40F-559 | SCS1025CS-40F-559 | SCS1125CS-40F-559 | SCS1225CS-40F-559 | SCS1625-40F-559 |
Cylinder quantity | 8 | 9 | 10 | 11 | 12 | 16 |
Working pressure/MPa | 25 | 25 | 25 | 25 | 25 | 25 |
Cylinder size/mm | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11577 | OD559*14.8*11580 |
Steel type | 4142 | 4142 | 4142 | 4142 | 4142 | 4142 |
Working temperature | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ |
Equipment weight/KG | 24240 | 27020 | 29600 | 32180 | 34760 | 45305 |
Water volume/M3 | 19.6 | 22.05 | 24.5 | 26.95 | 29.4 | 39.2 |
Filling gas volume/NM3 | 6174 | 6945 | 7717 | 8489 | 9261 | 12348 |
Total weight/KG | 28650 | 31981 | 35112 | 38243 | 41375 | 54195 |
Skid/Trailer dimension | 12192×2438×1400 | 12192×2438×1890 | 12192×2438×1890 | 12192×2438×1890 | 12192×2438×2000 | 12192X2438X2595 |
Chassis | 40ft – 3 axles | 40ft - 3 axles | 40ft - 3 axles | 40ft - 3 axles | 40ft - 3 axles | 40ft-3axles |
Remark: The above specifications are only for our typical types. The more accurate & detailed parameters and technical drawings are available upon request
SinoCleansky CNG jumbo tube products are manufactured under strictly compliant with international quality control system. The CNG jumbo cylinders are inspected by International Third-Party BV/TUV/LRs as per ISO11120 std, with inspection report submitted to clients. With client’s requirements, SinoCleansky will also provide some other certificates as per clients’ request. We assure you that all jumbo cylinders are 100% traceable.
Reference certifications and reports:

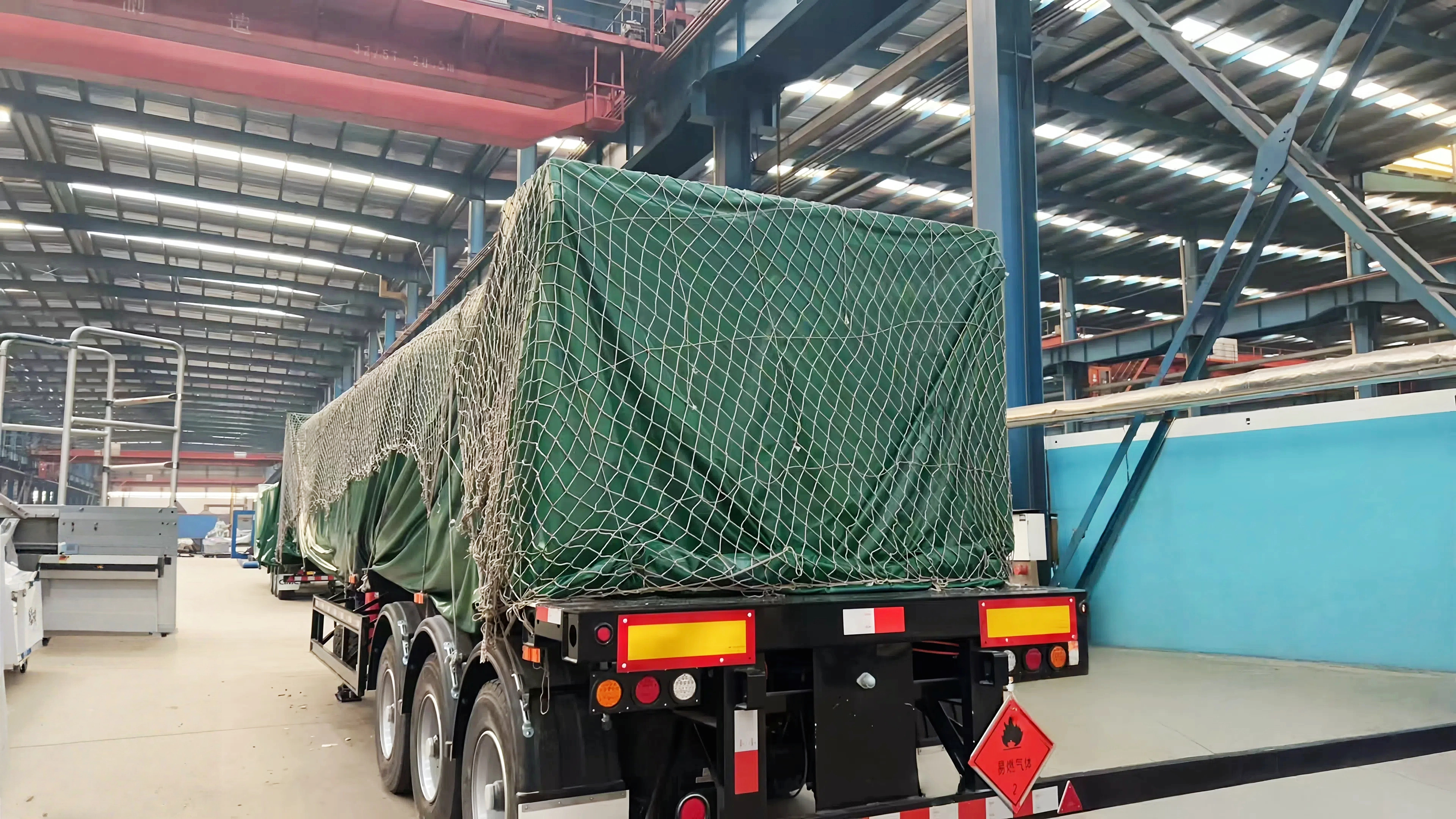

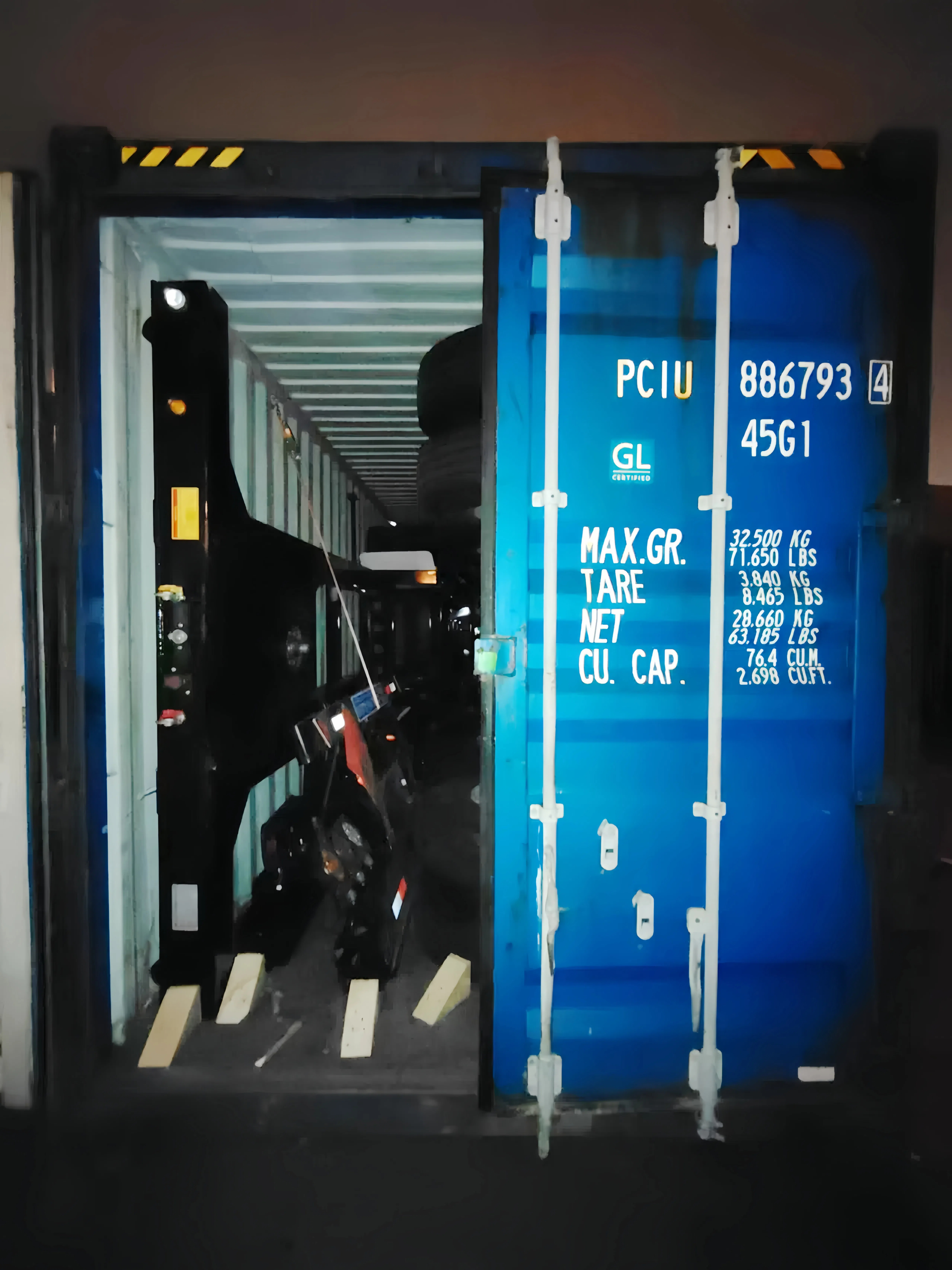

The CNG jumbo tube skid (container) shipped as ISO container; The chassis shipped by 20ft or 40ft container; Or the CNG jumbo tube trailer shipped as bulk goods.
