1000Nm3/h CNG PRU

  • CNG Pressure Regulator Unit (Pressure Regulating Metering System)
  • Flow rate 1000 NM³/H
  • Reducing 250 bar CNG to 2-4 bar, customized
  • 2 stage pressure regulating
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
CNG PRU CNG PRMS CNG pressure regulating CNG PRU 1000NM³/H
Product Description
Technical specification
Certification & Warranty
Packaging & Shipping


SinoCleansky CNG PRU (PRMS) 1000NM3/H are manufactured under strictly quality control system with full set of inspection report.

CNG PRU are applied for regulating high pressure CNG to normal pressure. The popular type pressure regulating unit 1000 NM3/H are designed for 250 bar CNG to keep the flow rate of 1000 NM3/H and outlet pressure of 2-4 bar.

The outlet pressure is customized.


SinoCleansky’s CNG PRU 1000NM³/H is a high-performance Pressure Regulating Unit designed to bridge the gap between high-pressure CNG storage and low-pressure end-use. With a stable flow rate of 1000 cubic meters per hour, this unit efficiently reduces high-pressure CNG (20-25 MPa) to a safe, usable pressure range of 0.2-0.4 MPa—ideal for industrial gas supply, commercial heating, and municipal natural gas networks. As a one-stop CNG/LNG/NGV solution provider, we’ve integrated robust structural design with intelligent control features, ensuring easy integration into existing systems and minimal operational downtime. The unit’s compact layout and modular components also simplify on-site installation and maintenance, making it a preferred choice for clients seeking cost-effective and reliable pressure regulation.

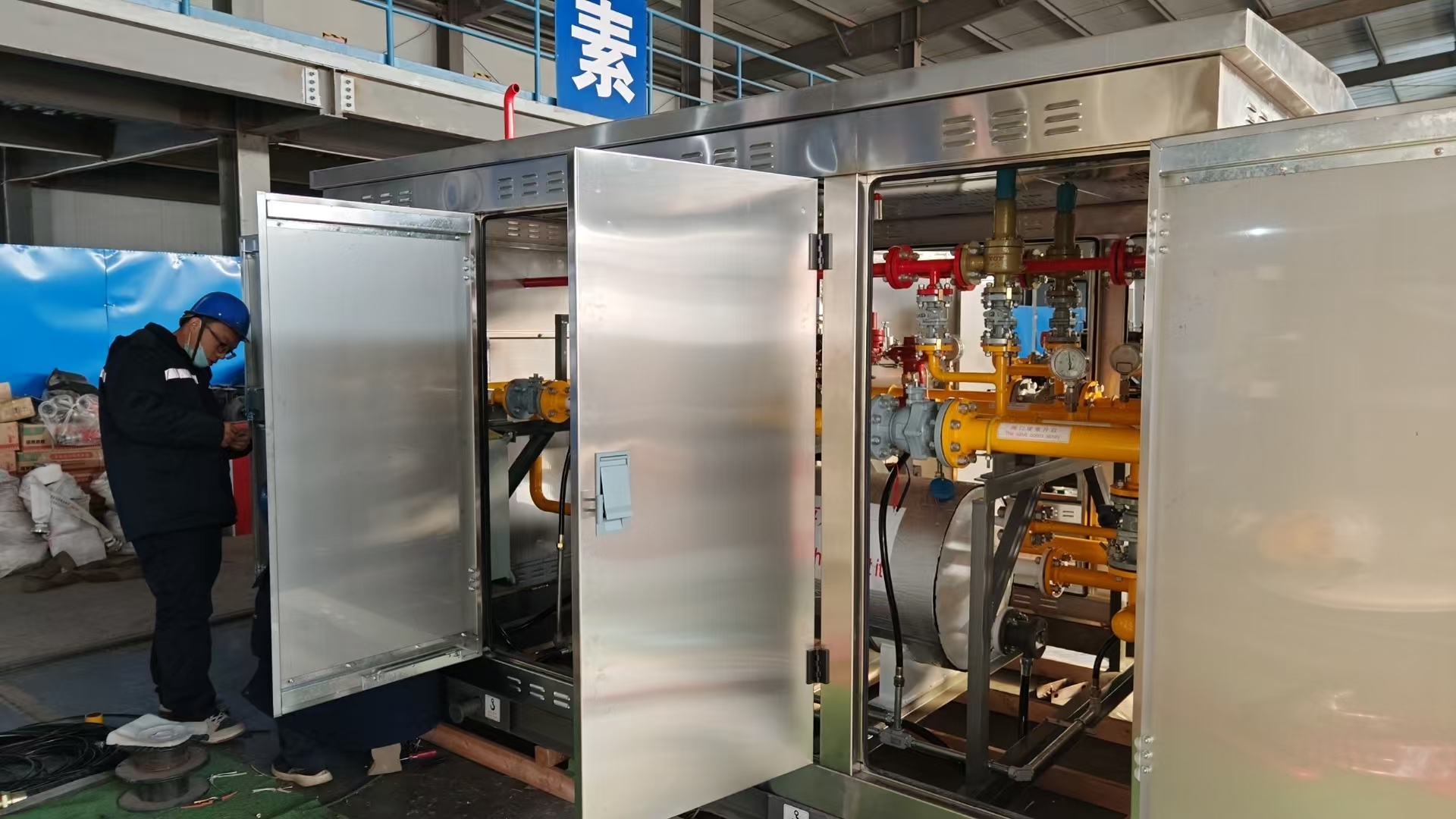

Industrial CNG PRU


Core Performance Metrics

Flow Rate: 1000 NM³/H (consistent output under rated inlet pressure and temperature)

Inlet Pressure: 20-25 MPa (compatible with high-pressure CNG cylinders and storage tanks)

Outlet Pressure: 0.2-0.4 MPa (customizable to 0.1-0.6 MPa based on client end-use needs)

Design Temperature: -19℃ to 60℃ (adapts to cold and hot climates without performance loss)

Medium: Natural Gas (NG) (meets ISO 13686:2017 gas quality standards)


Structural & Safety Features

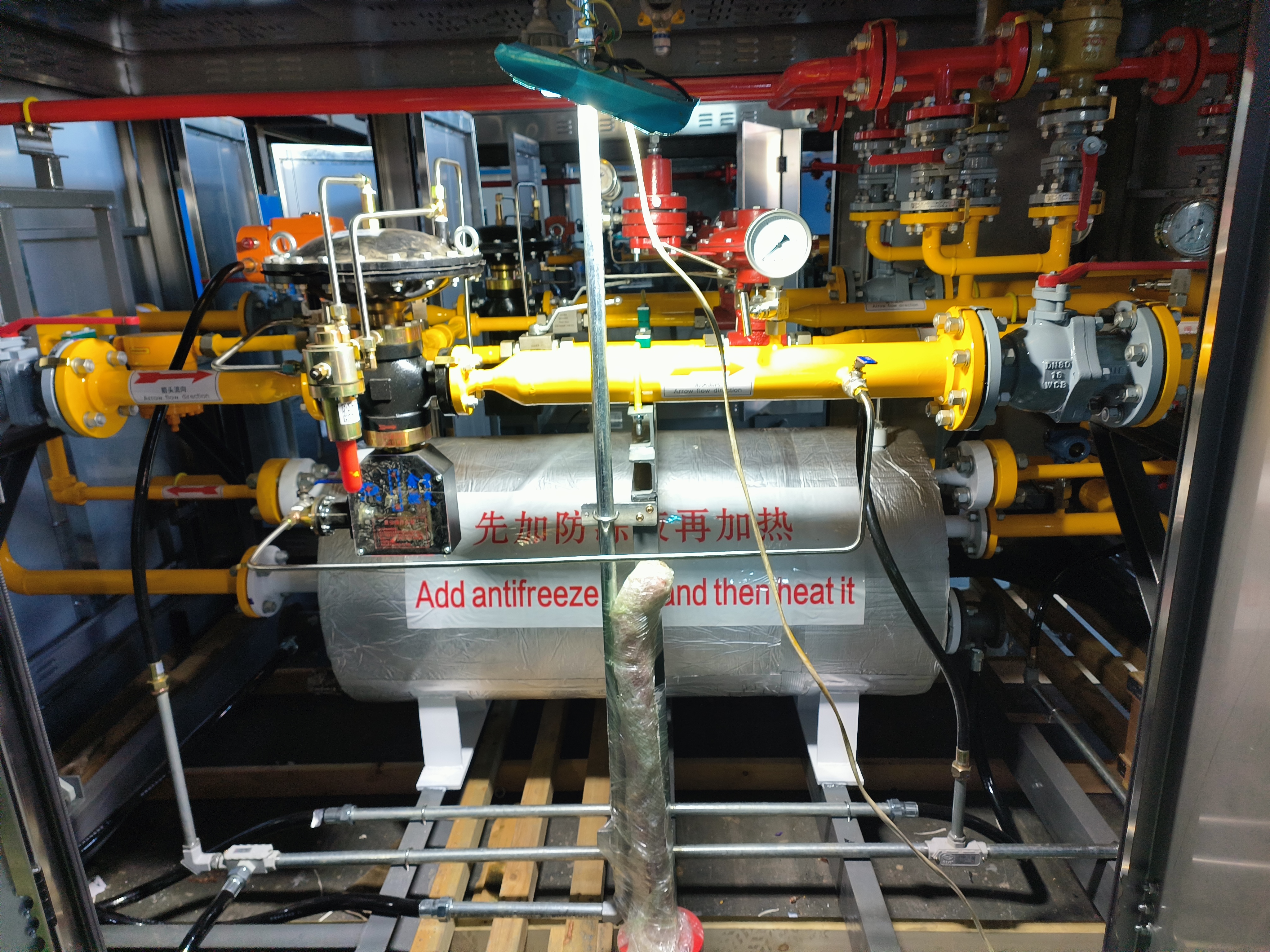

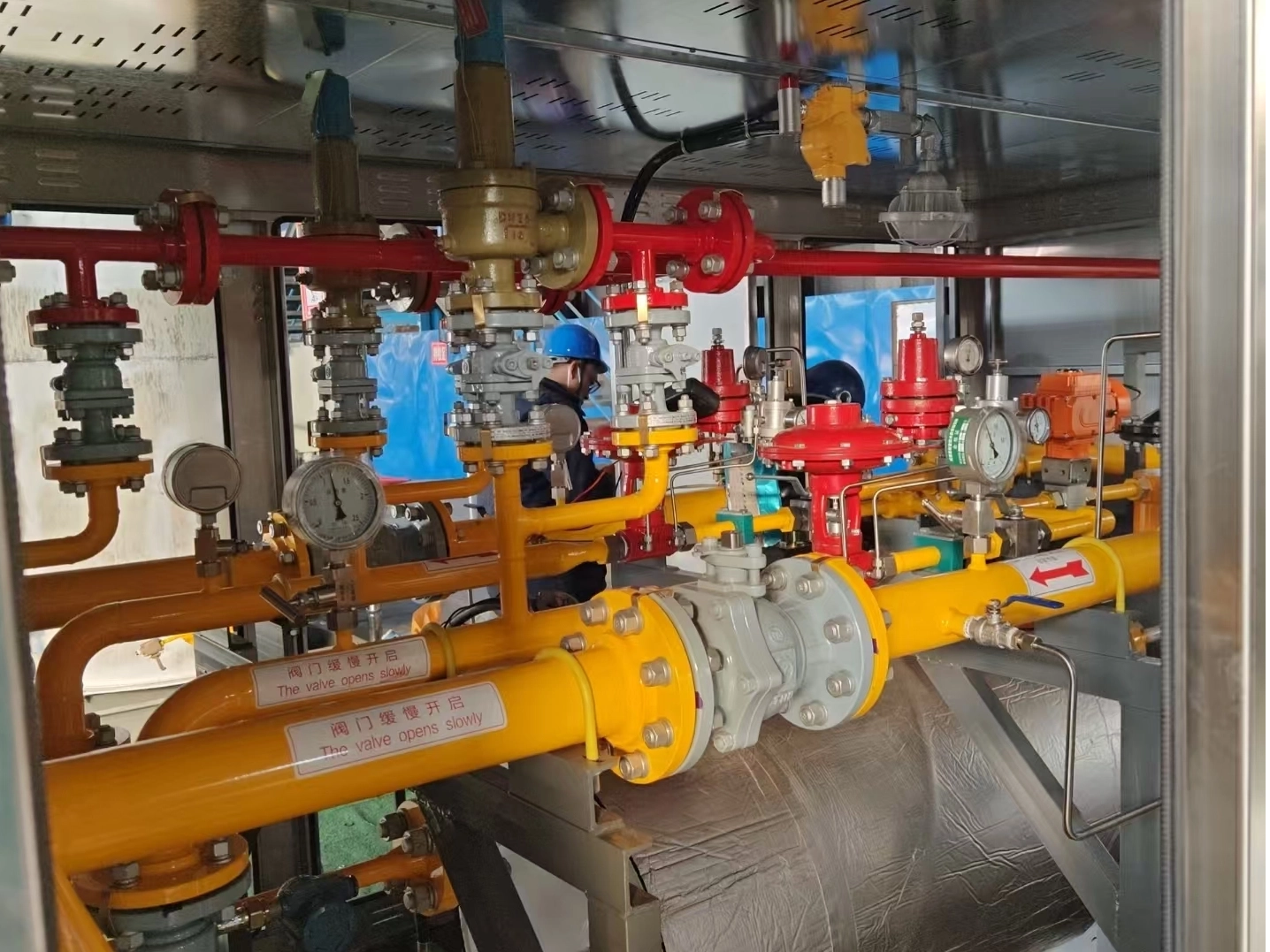

Two-stage pressure regulation: First-stage international brand regulator ensures primary pressure reduction; second-stage domestic high-precision regulator refines pressure stability.

Built-in safety protections: Over-pressure cut-off valve (triggers at 1.5x rated outlet pressure) and pressure release valve (vents excess pressure to prevent system damage).

Optional add-ons: Heat exchanger (prevents temperature drops during decompression), mass flow meter (for accurate gas consumption tracking), and PLC+HMI control panel (enables remote monitoring).


Typical Model

Inlet pressure

Outlet pressure

Optional Function

1000Nm3 per hour

250bar2~4barHeat exchanger;
Mass flow meter:
PLC automatic control;
HMI;
CNG Decanting Post;
High pressure hose;
International brand valves

Remark: The above specifications are only for our typical types. The more accurate & detailed parameters and technical drawings are available upon request

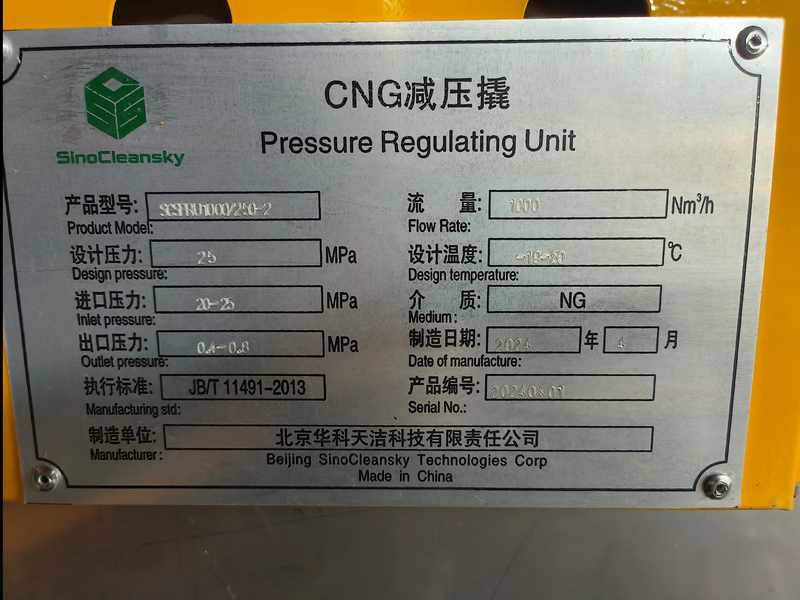

SinoCleansky CNG Pressure regulating unit are manufactured under strictly quality control system. The CNG PRU(PRMS) are with full set inspection report submitted to clients. With client’s requirements, SinoCleansky will also provide some other certificates as per clients’ request. We assure you that each CNG PRU(PRMS) are with sound quality.


Quality Compliance: Manufactured under ISO 9001:2015 quality management system, with strict inspections at every production stage—from raw material testing to final assembly.

Test Reports: Provides a full set of inspection documents, including pressure test reports, air tightness test reports, valve qualification certificates, and safety accessory verification records.

International Recognition: Complies with JB/T 11491-2013 (Chinese standard for CNG pressure regulating devices); SGS or BV certification can be arranged upon client request.

Warranty & Traceability: Each unit has a unique serial number for 100% traceability. Standard 12-month warranty covers manufacturing defects; extended warranty (up to 24 months) is available for additional peace of mind.


Reference certifications and reports:

Sinocleansky

Sinocleansky

Sinocleansky

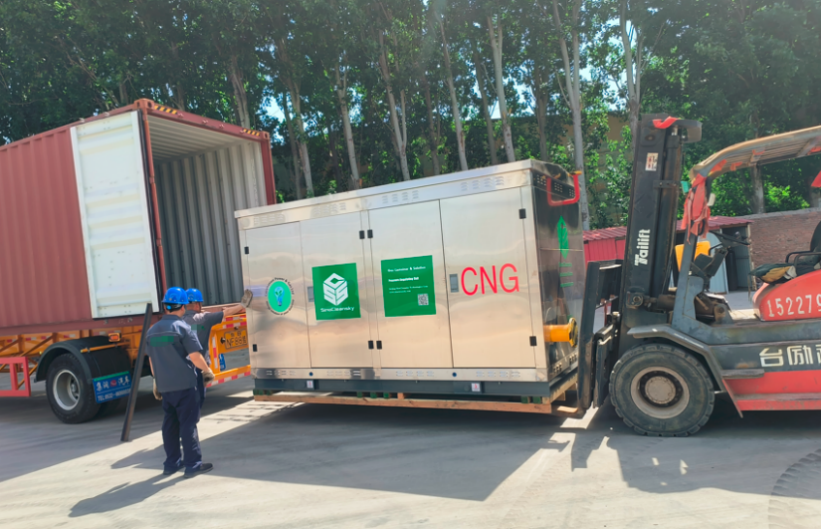

The CNG PRU (PRMS) is suitable for transportation via standard containers, including 20 - foot General Purpose (20GP), 40 - foot General Purpose (40GP), and 40 - foot High - Cube (40HQ) containers. When loaded into these containers, it is ensured to have reliable and proper fixed protection within the container to safeguard it during transit.


The CNG PRU (PRMS) can be shipped by standard containers, 20GP, 40GP, 40HQ, with good fixed protection in container.
