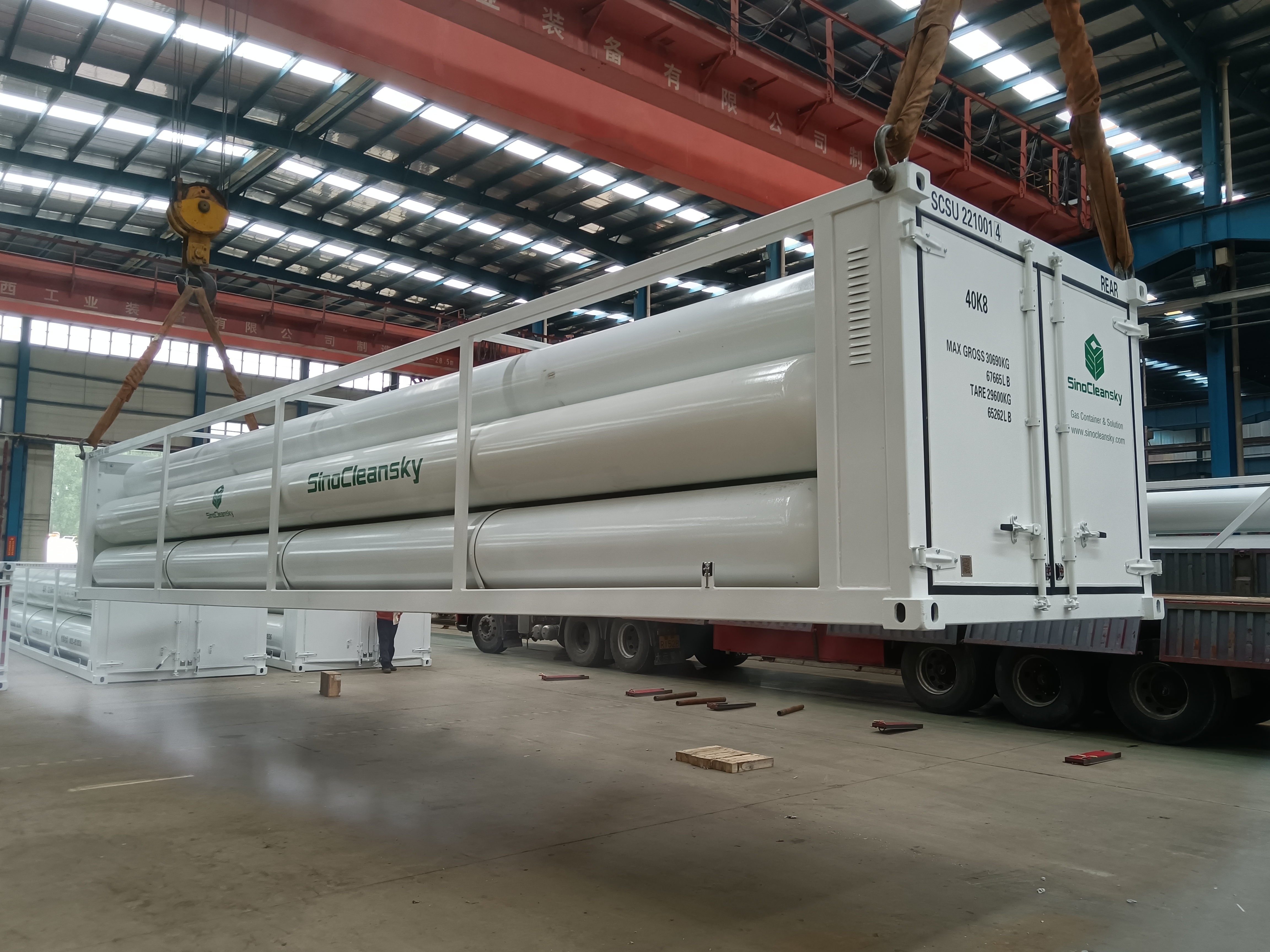

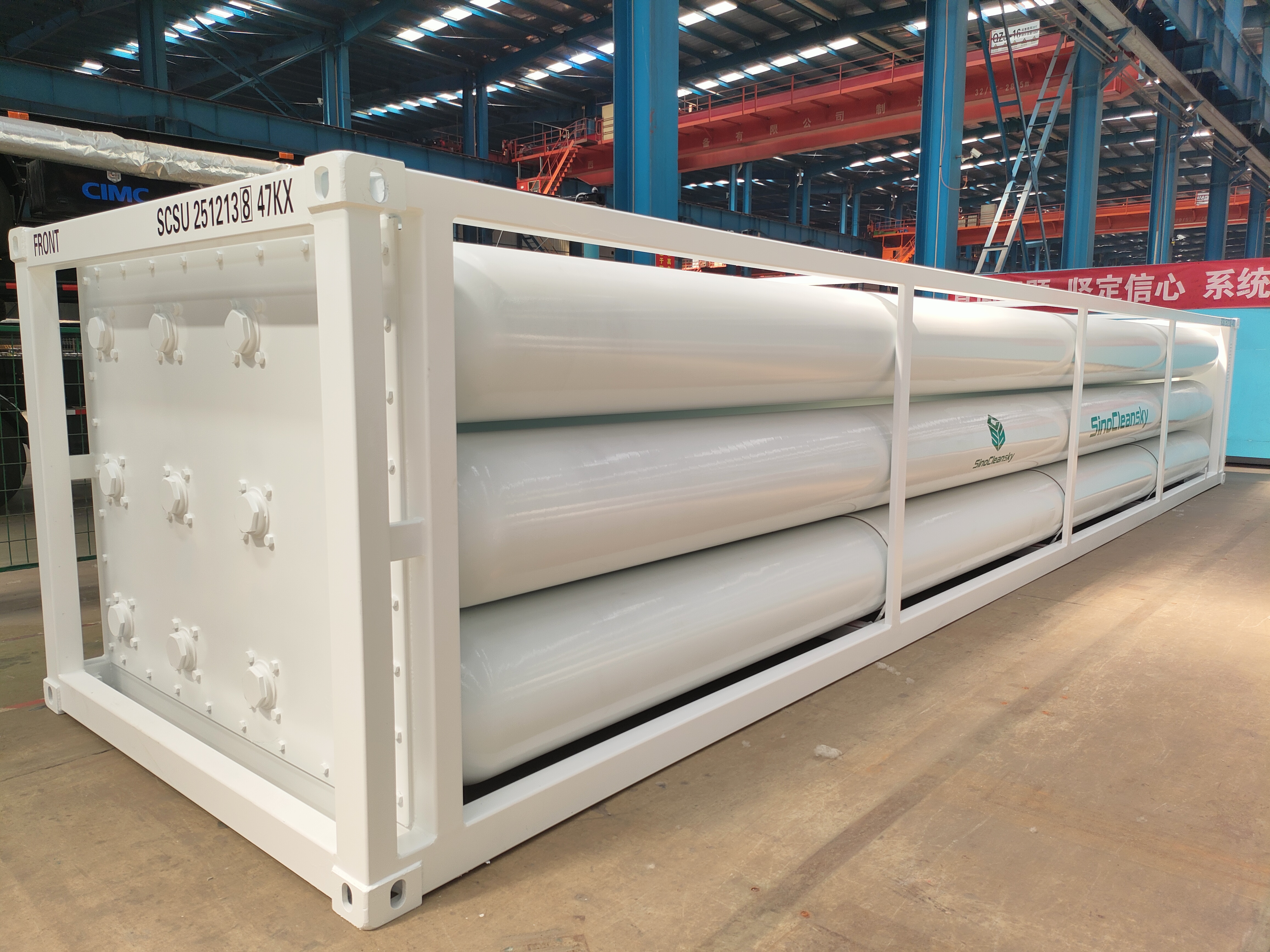

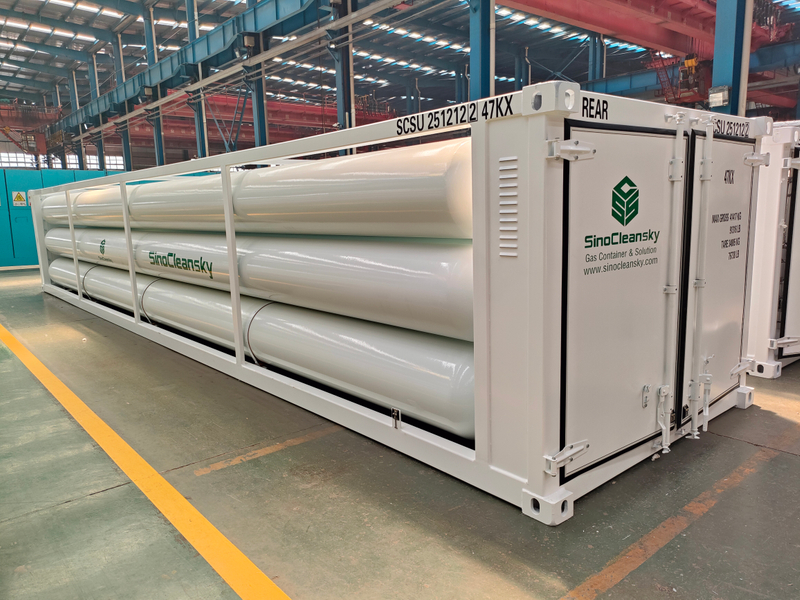

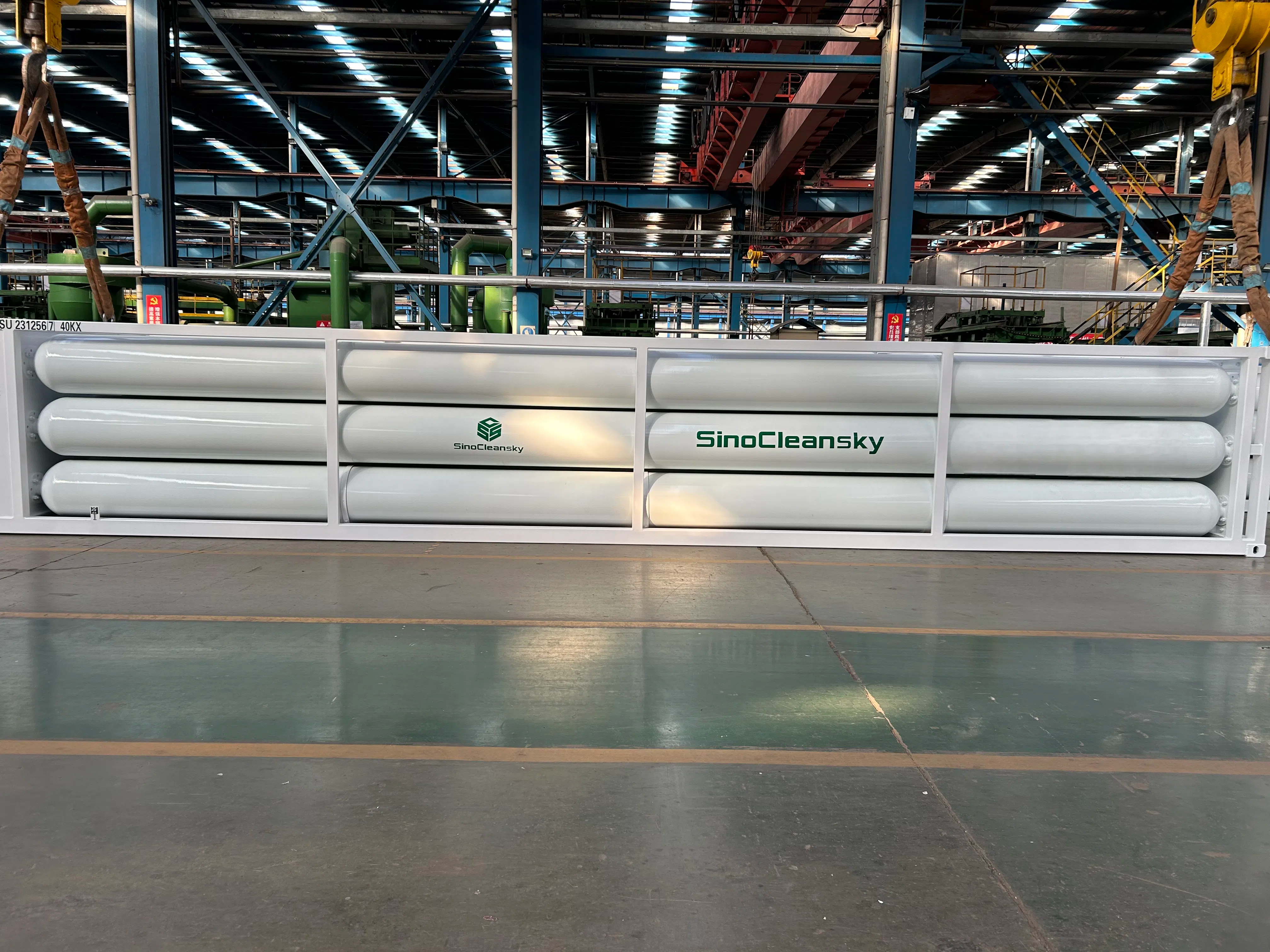

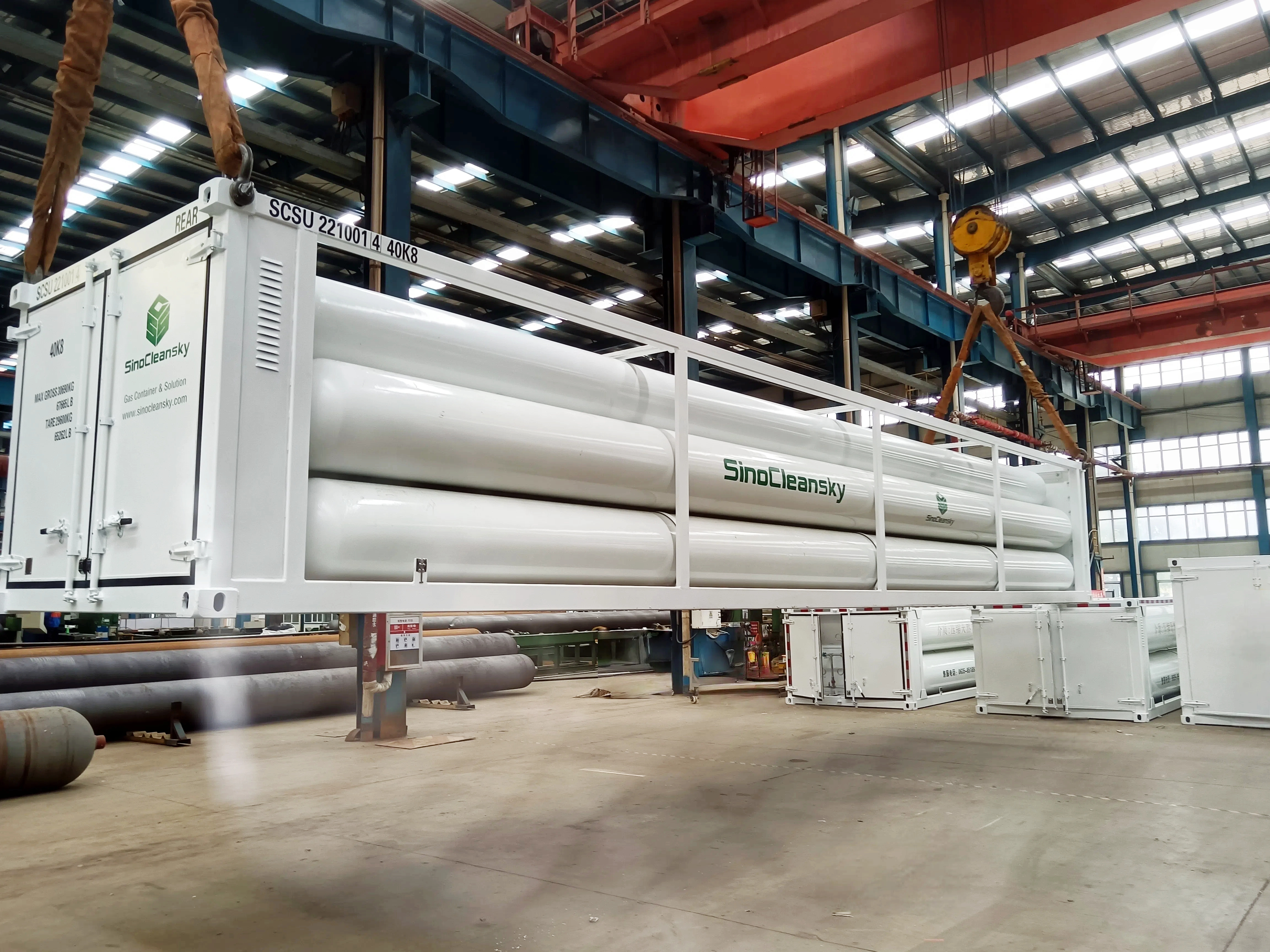

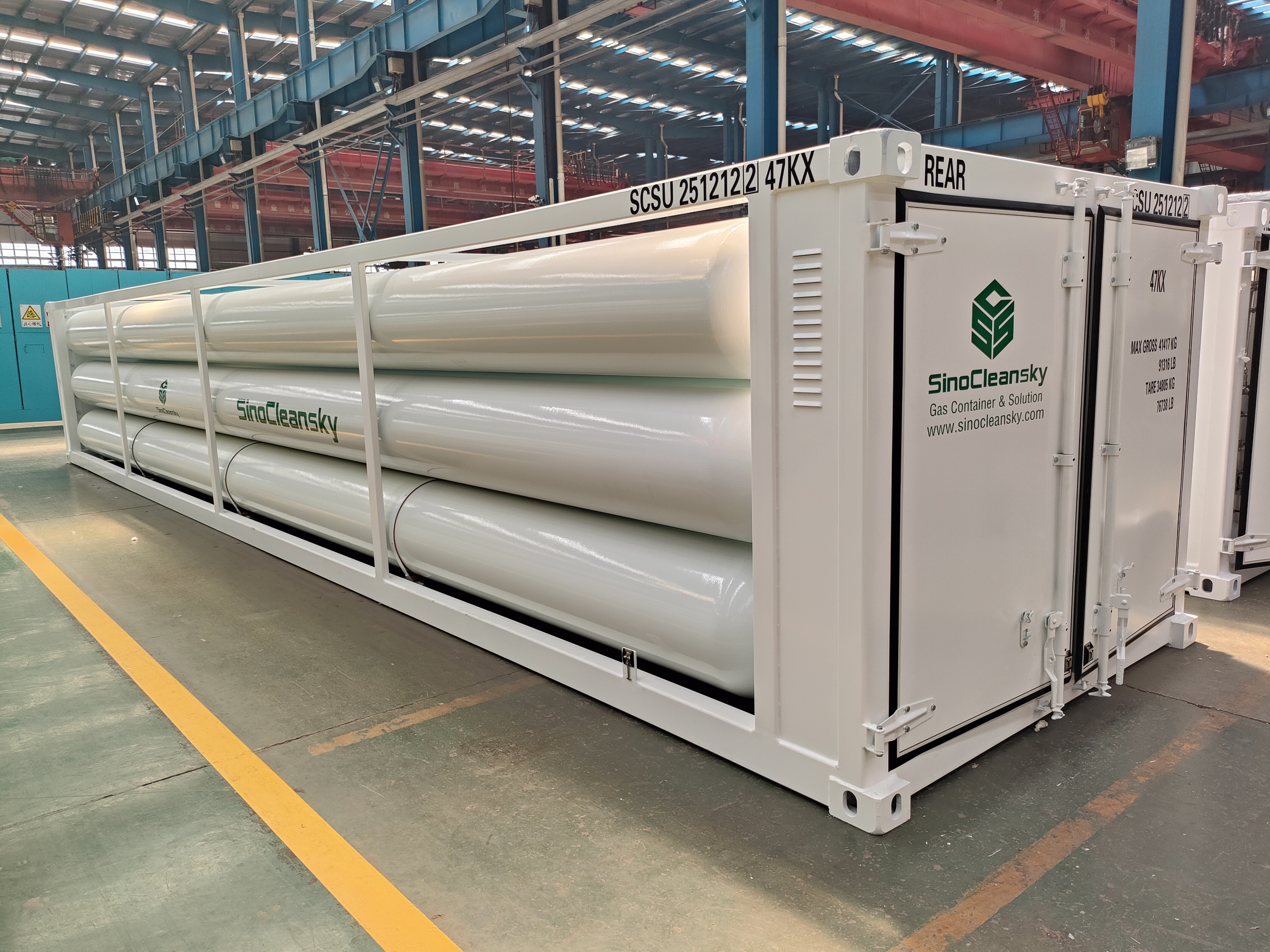

SinoCleansky CNG jumbo container 9-tubes 40ft are produced as per ISO11120, with inspection report (certificate) issued by BV, LRS, TUV or equivalent international third-party.The jumbo tube containers are widely used for ground stationary storage and transportation, and can be designed based on detailed request of clients.
The main advantage: the 9-tubes its relatively light weight, which makes it suitable for the majority of countries' road load requirements.
Built to withstand the rigors of transportation and handling. It is constructed from high-quality materials that offer durability and resistance to impacts and vibrations.
Designed to maintain the integrity of the CNG, preventing any leaks or losses.
Safety: equipped with advanced safety features such as pressure relief valves and leak detection systems. These ensure that the CNG is contained and any potential issues are detected and addressed promptly. The design also complies with strict safety regulations and standards to protect both the operators and the environment.

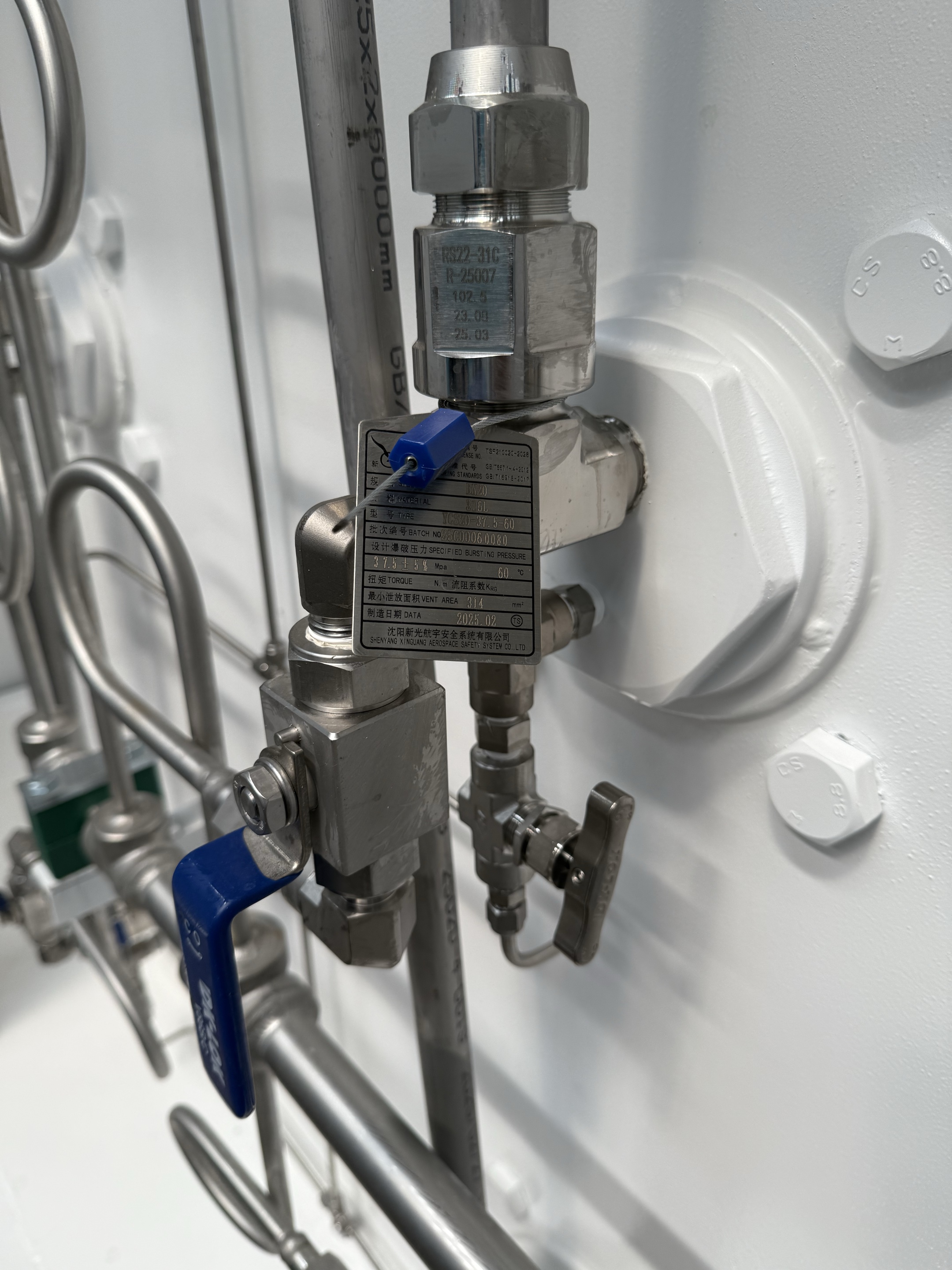

Ease of use: It may have valves and fittings that allow for smooth connection and disconnection for filling and dispensing the CNG. The container can be easily integrated into existing CNG infrastructure, providing a seamless and efficient supply chain.
Highly mobile: allowing for easy transportation to different locations. It can be moved using various means such as trucks or trailers, enabling the CNG to be delivered where it is needed.
SinoCleansky ensures the 9Tubes 40ft Jumbo Tube Skid Container meets global quality standards:
Third-party inspection: Certified by BV, TUV, or LRS in accordance with ISO 11120. Inspection reports include:
Hydrostatic test (37.5MPa, 2-minute duration, no leakage).
Visual/ultrasonic inspection (no surface defects, dimensional accuracy).
Document review (material certificates, heat treatment records).
Regional compliance: Meets ADR (road), RID (rail), and IMDG (maritime) regulations. Optional DOT/ASME certifications for North American/European markets.
Traceability: Each tube has a unique serial number, with full traceability of raw materials (4130X/4142 steel) and production processes.
Warranty: 12-month standard warranty covering manufacturing defects. Extended warranty (up to 24 months) and on-site maintenance services are available.
Reference certifications and reports:
The 9Tubes 40ft Jumbo Tube Skid Container is shipped with a focus on road compliance and safety:
Container options: Fits in standard 40GP containers or open-top containers (40OT) for easy loading. Light type models can also be shipped in 40HQ containers for cost savings.
Securement: Fixed to the container floor with high-strength bolts and anti-vibration pads to prevent movement during sea, land, or rail transit.
Protective packaging: Valves and fittings are covered with dust caps; the skid frame is painted with anti-corrosion coating to resist saltwater or humidity.

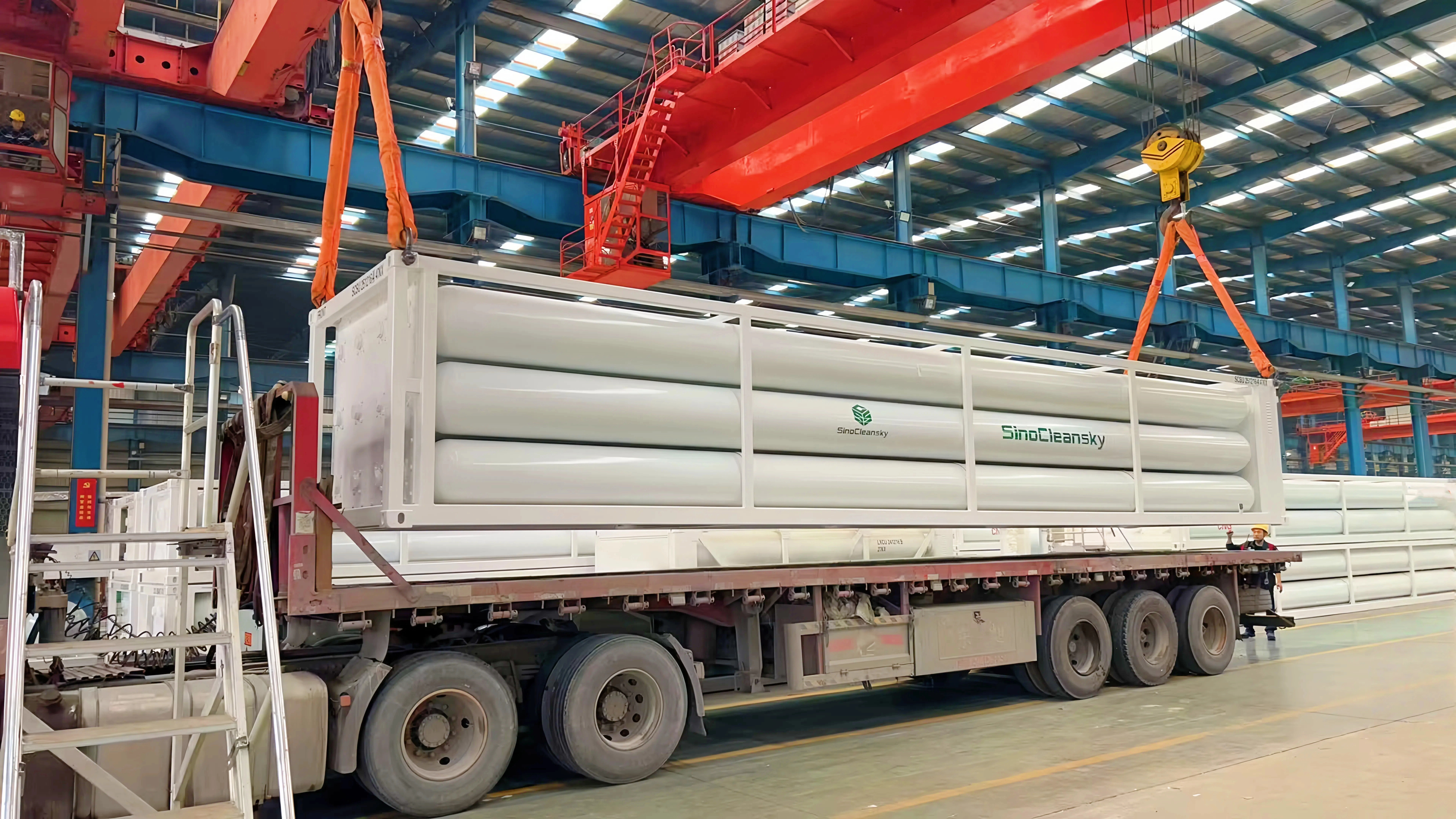

Truck loading: For regional delivery, the container is loaded directly onto flatbed trucks—secured with steel chains to comply with road safety regulations.
Regional logistics: Railway transportation is available for Central Asian clients, reducing delivery time and costs.
Documentation: Includes all necessary paperwork (certifications, inspection reports, packing lists) to streamline customs clearance.
