What is LNG regasification

LNG regasification changes liquefied natural gas from a very cold liquid at −162 °C (−260 °F) back into a gas you can use. This process is important because it lets LNG become gas again. Moving LNG as a liquid saves space since it makes the volume 600 times smaller. When you want to use LNG as fuel, regasification turns it into natural gas for power plants, homes, and businesses.

• Regasification lets you use liquefied natural gas as fuel.

• You get efficient transport of LNG over long distances.

• LNG regasification gives gas to people who need it.

Key Takeaways

• LNG regasification changes liquefied natural gas into gas. This gas is used in homes and power plants. Transporting LNG as a liquid saves a lot of space. It makes moving LNG over long distances easier. Cryogenic storage tanks keep LNG very cold. These tanks also keep LNG safe until people need it. Different vaporizers heat LNG to make it gas again. Each vaporizer type has its own special benefits. Pressure regulation is very important during regasification. It helps keep things safe and makes the process work well. Floating regasification terminals are fast and flexible. They help supply gas quickly when needed. Safety systems are very important for LNG operations. They protect workers and the environment. Using LNG helps lower pollution. It also supports cleaner energy goals.

LNG Regasification Process

LNG Storage at Terminals

When LNG arrives at a terminal, it must be kept safe. Workers store LNG in big tanks that keep it very cold, about -162°C. These tanks can hold a lot, sometimes between 100,000 and 160,000 cubic meters. You can find these tanks on land or on floating units. The tanks have special insulation. This insulation keeps the LNG cold and stops it from warming up fast.

Cryogenic Storage Tanks

Cryogenic storage tanks are very important in regasification. These tanks have two walls and thick insulation. They keep LNG at low pressure and very cold temperatures. The design stops heat from getting in. This keeps the liquefied natural gas safe until it is needed. People depend on these tanks to keep LNG in liquid form.

Offloading and Transfer

LNG is unloaded from ships using marine equipment like jetties and berths. The ships connect to the terminal with insulated pipes and loading arms. LNG moves through these pipes into the cryogenic storage tanks. Pumps and safety systems help control the flow and stop leaks. Workers follow strict rules to keep LNG cold and prevent accidents.

Tip: Always check safety systems before you start unloading. This helps stop spills and keeps people safe.

Heating and Vaporization

After storage, LNG goes to heating and vaporization. High-pressure pumps push LNG through vaporizers. Vaporizers heat the LNG and turn it into gas. The temperature goes from -162°C to about +10°C. This step is important because LNG cannot be used as a liquid for most things.

Types of Vaporisers

There are different types of vaporisers used in regasification:

• Open Rack Vaporizers (ORV): Seawater flows over pipes to heat LNG.

• Submerged Combustion Vaporizers (SCV): Burners in a water bath heat LNG, especially when more gas is needed.

• Ambient Air Vaporizers (AAV): Large fans blow air through heat exchangers, which saves energy.

Each vaporizer type helps turn LNG into gas quickly and safely.

Heat Sources

Heat sources are needed to warm up LNG during regasification. You can use seawater, air, or burners. Seawater heat exchangers work well if the water is clean. Air vaporizers use fans to move air across heat exchangers. Underwater burners make the process faster when more gas is needed. The heat source is chosen based on where the terminal is and what it needs.

Note: Using seawater as a heat source saves energy and works best at coastal terminals.

Pressure Regulation

You must control pressure during LNG regasification. When LNG gets warmer, it turns into gas. This makes the pressure inside tanks go up. If you do not control this, it can be unsafe. There are different ways to keep things safe and working well.

• Natural boil-off happens as LNG warms up. This makes tank pressure rise.

• You take boil-off gas (BOG) out of the tank. This keeps pressure steady and lets you use the gas.

• Before sending BOG to compressors, you warm it up. This stops cryogenic shock and protects equipment.

• Compressors make the gas pressure higher. This keeps gas flowing and gets it ready for delivery.

• You filter and heat the gas if needed. Pressure control valves keep the gas steady and clean.

• Buffer tanks help with pressure changes. They also help when demand goes up or down.

• Safety systems give extra protection. They use alarms, pressure relief valves, and automatic shutdowns.

Tip: Always watch pressure gauges and alarms. Acting fast can stop accidents.

You need to pay attention to pressure regulation. This keeps equipment safe and helps LNG regasification work well.

Gas Distribution

After vaporizing LNG and controlling pressure, you send out the gas. The gas now has the right temperature and pressure for pipelines. It travels through pipes to power plants, factories, and homes.

You use control valves and flow meters to guide the gas. These tools help you measure and adjust how much gas moves. Buffer tanks help with sudden changes in demand. This keeps the supply steady.

LNG regasification lets you send natural gas far away. You can store LNG at terminals and regasify it when needed. This helps you handle changes in energy demand. You can use the gas for power, heating, and other things.

Note: Check valves and pipes often. This stops leaks and keeps gas safe.

You help make LNG regasification safe and reliable. By following these steps, you give energy to many people.

LNG Regasification Infrastructure

Import Terminals

Import terminals are where LNG comes in from ships. These terminals get liquefied natural gas and get it ready for regasification. At these places, you see big storage tanks, pipelines, and unloading tools. Import terminals keep LNG very cold until it needs to become gas. They handle large amounts and keep the supply steady. These terminals connect to regasification plants and help move LNG from ships to tanks. Import terminals also help balance supply and demand for LNG export facilities. They make sure there is enough gas for everyone.

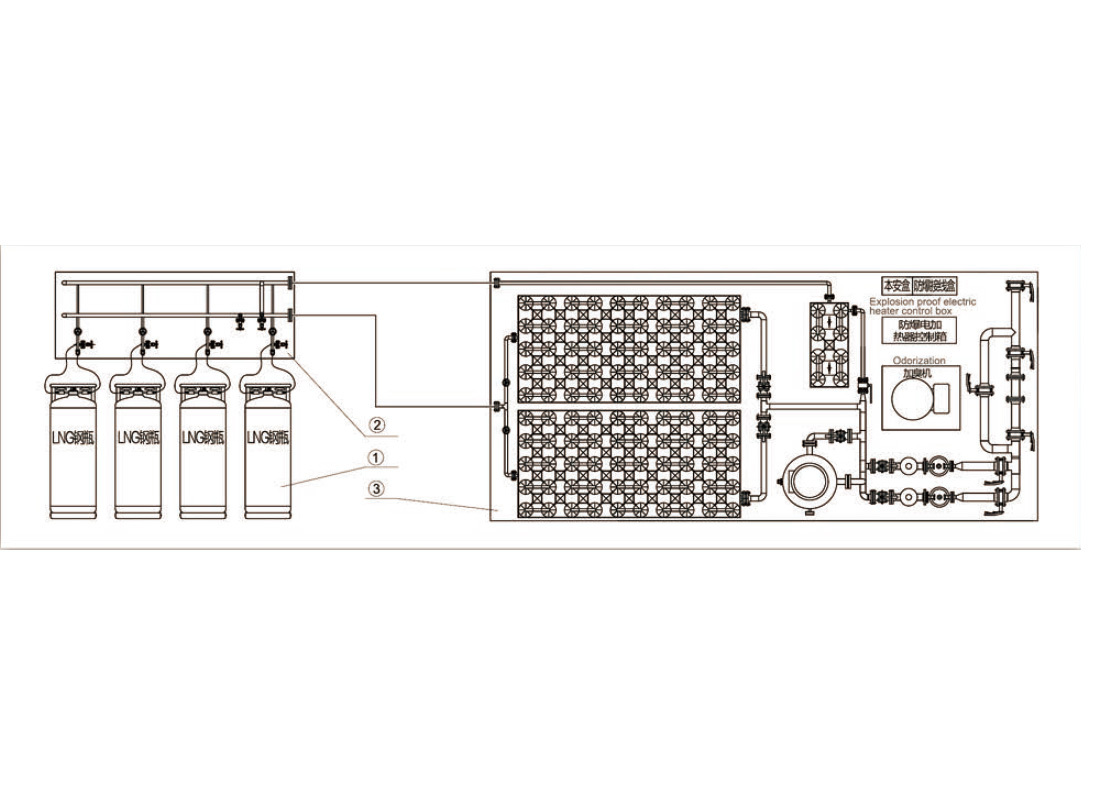

LNG Cylinder Group Regasification Skid

LNG cylinder group regasification skids are used when space is tight. These skids are small and turn LNG into gas for use. They do not need much watching and are easy to set up. Here are the main features of these skids:

• Vaporizers heat LNG and make it gas.

• Control systems keep the flow steady and safe.

• Pressure regulators make sure gas pressure is right.

• Safety features include emergency shutdowns and relief valves.

These skids are good for places where big plants cannot fit. They give a steady gas supply even in small spaces.

Tip: Always check the safety systems before you start using the skid.

Vaporisers

Vaporisers are important for LNG regasification. They heat liquefied natural gas and turn it into gas you can use. There are different types of vaporisers. Each one has special benefits. You can see how they work in the table below:

You pick the vaporiser type based on where you are and what you need. Each vaporiser helps turn LNG into gas safely and quickly. You make sure the gas is at the right temperature and pressure.

Note: Keep vaporisers in good shape with regular checks. This helps your regasification plant work well.

Safety Systems

Every LNG regasification terminal needs strong safety systems. These systems keep people, equipment, and nature safe. You must follow strict rules to stop accidents. Safety systems work together to lower risks and help in emergencies. Here are the main safety systems in the table:

You need to check these systems often. Workers should learn how to use them the right way. Fire protection keeps LNG safe from heat and fire. Emergency shutdown systems stop gas flow if there is a problem. Rescue plans help you act fast if there is an accident. Safety management systems make sure you follow world rules. Multi-stage protection gives more safety layers. Using all these systems together keeps everyone safe.

Tip: Practice emergency drills a lot. This helps you act fast if something bad happens.

Utilities

Utilities help you run LNG regasification terminals well. You need many utilities to keep things safe and working right. These utilities help with cooling, heating, and saving energy. Here are the main utilities:

• Cold energy recovery lets you use the cold from LNG. You can use this cold to cool AI data centers near the terminal.

• System architecture keeps LNG and cooling networks apart. You use special loops to stop mixing and keep things safe.

• Reliability mechanisms use backups and buffers. These help you handle changes in demand and keep things steady.

• Demand management uses liquid-first stacks and supply/return envelopes. You make cooling better for AI buildings and use energy smartly.

• Temperature management keeps supply temperatures safe. This stops water drops from forming and protects equipment, especially in hot and wet places.

You need to check utilities often. You make sure everything works as it should. Cold energy recovery helps you save energy and not waste it. Reliability mechanisms keep things running even if something breaks. Demand management lets you change cooling and energy use. Temperature management keeps your equipment safe and the process working. Utilities are important for making LNG regasification work well and safely. Using these utilities helps balance supply and demand for LNG export places.

Note: Keep utility systems in good shape. Checking them often helps you stop problems and keeps LNG regasification safe.

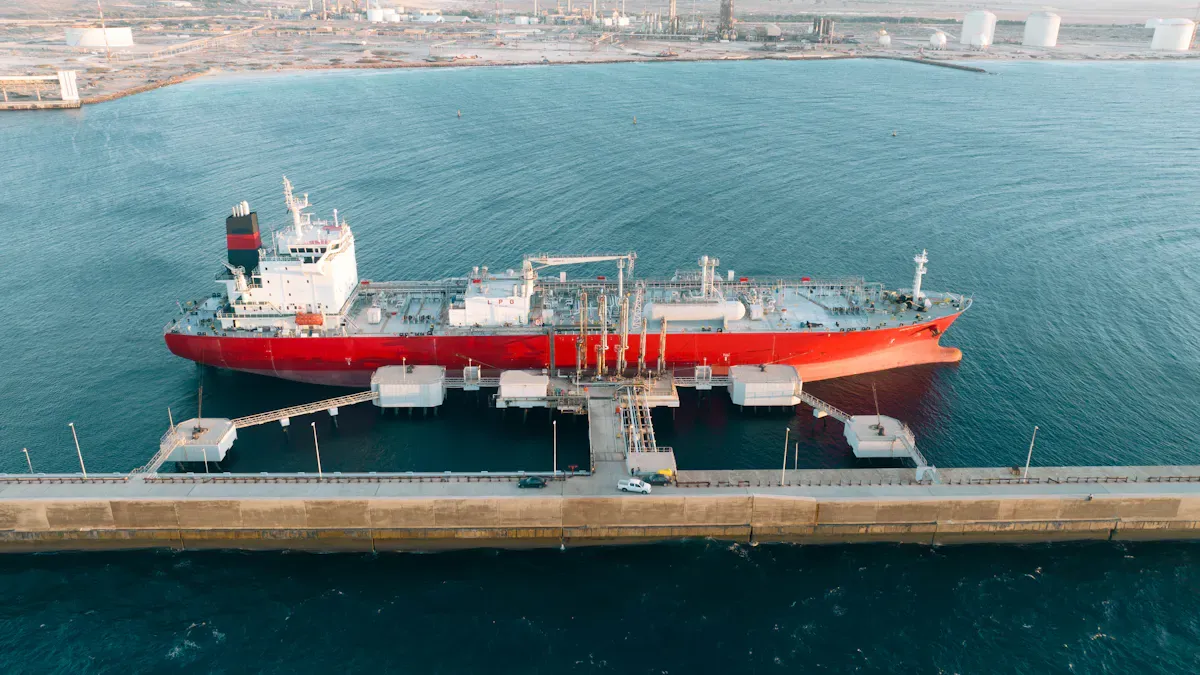

Floating Regasification Terminals

Floating regasification terminals help bring natural gas to places where building on land is hard or slow. These terminals float on water, usually near the shore or above gas fields in the sea. You can use them when you need gas quickly or when there is no land to build on. Floating terminals are important for moving LNG around the world.

FSRUs and Barges

There are two main types of floating terminals: Floating Storage and Regasification Units (FSRUs) and barges. FSRUs look like big ships. They store LNG and turn it into gas right on the ship. Barges do the same job but are smaller and stay in one spot. Both types connect to LNG ships with hoses or loading arms. The LNG moves through cold pipes into tanks on the FSRU or barge.

Here is a table to show what FSRUs do:

Operation and Advantages

You can set up floating terminals much faster than building on land. Sometimes, FSRUs start working up to six times quicker. This helps when you need energy fast. You do not have to wait years for a new terminal. Floating terminals are flexible. You can move them if people need gas somewhere else.

Many countries use floating terminals to bring in LNG. For example, Germany used floating terminals for 11% of its gas imports at first. Around the world, 16 places only use floating or offshore terminals. Eleven countries use both floating and land terminals. Floating terminals help save money and time. You can put them right above gas fields in the sea, so you do not need long pipes. This lets you use gas from faraway places without big export plants.

Here are some main advantages:

• Quick to set up and start

• Costs less than building on land

• Can move or change to new markets

• Can use gas from sea fields right away

Tip: Floating terminals are good for places with little land or strict rules for the environment.

Challenges

There are some problems with floating regasification terminals. These terminals need special designs to work in rough sea weather. Storms and big waves can make things harder. You need special tools and skilled workers. If something breaks, fixing it can take longer and cost more than on land.

You also have to follow many safety and environmental rules. Getting all the right permits can slow down your project. Many people, like users, engineers, and suppliers, must work together. If they do not work well, there can be delays or mistakes. Sometimes, it is hard to find enough workers who know about LNG, which makes things tougher.

• Needs special design and engineering

• Bad weather and rough seas

• Need for skilled workers

• Many safety and environmental rules

• Delays from permits and teamwork problems

Note: Good planning and training help fix many of these problems.

Floating regasification terminals give a quick and flexible way to bring LNG to new places. You need to balance the good things with the tough parts of running them.

Safety and Environmental Aspects

Safety Protocols

You need to follow strict safety rules with LNG regasification. LNG is very cold. It can cause frostbite if it touches your skin. You wear special clothes and gloves to stay safe. Workers use insulated tools to handle LNG. You check equipment often to make sure it works.

Alarms and sensors are all over the terminal. These warn you about leaks or pressure changes. If an alarm goes off, you must act fast. Emergency shutdown systems stop gas flow and keep people safe. Fire protection uses water sprays and foam to control fires. You practice emergency drills so you know what to do.

You follow rules for handling dangerous materials. Clear paths are kept for rescue teams. Signs show where danger zones are. Safety managers teach you how to use equipment and follow rules. You report any problems right away. Safety rules help protect people, equipment, and nature.

Tip: Always check your safety gear before work. This helps prevent accidents and keeps you safe.

Environmental Impact

LNG regasification affects the environment in many ways. You need to know these impacts to make good choices. Methane leakage is a big problem. Even small leaks can hurt the climate. If you lose 3.5% of gas, LNG loses its climate benefits over coal.

Regasification creates greenhouse gas emissions. These make up about 1-3% of all emissions in the LNG chain. When you regasify and burn 70,000 metric tonnes of LNG, you release about 190,000 metric tonnes of CO2 equivalent. Most emissions come from burning natural gas at the end. This step causes over 60% of total emissions in the LNG chain.

Natural gas makes less greenhouse gas than coal. You help lower emissions by picking LNG instead of coal. You can use ways to reduce environmental impact. Renewable energy helps you use cleaner power. Carbon capture and storage traps CO2 before it gets into the air. Seawater recirculation lowers water use and protects sea life.

Here is a summary of environmental impacts and solutions:

You must watch emissions and water use closely. You help protect nature by using new technology and following best practices. By knowing these impacts, you make LNG regasification safer and cleaner for everyone.

Note: Using advanced systems and regular checks helps you lower environmental risks.

Energy Supply Role

Power Generation

LNG is important for making electricity. Many countries use LNG instead of coal or oil. This helps make the air cleaner and lowers greenhouse gases. In South Asia, LNG is used more so less coal is burned. India thinks it will need 60% more gas by 2030. Most of this gas will go to power plants and transport. Thailand gets about 30% of its electricity from LNG. Indonesia and Vietnam also use LNG when they need extra power. LNG helps these countries use more renewable energy too.

• Using LNG means less coal and oil are needed.

• The air gets cleaner and there is less pollution.

• New power plants can use LNG and keep the energy grid balanced.

When you use LNG for power, you help your country have a cleaner future.

Heating Applications

Regasified LNG can be used for many heating jobs. It works in homes, factories, and even vehicles. The table below shows how LNG is used:

LNG is a flexible energy source. It heats homes, runs factories, and powers city buses. You get good energy efficiency and a steady supply.

Tip: Using LNG for heating can save money and lower pollution compared to oil or coal.

Integration with Gas Grids

Regasified LNG must travel from terminals to users. This is done through gas grids in each country or region. Special equipment and safety systems are used. The table below explains the main parts:

These systems connect to the gas grid. This lets natural gas reach cities, factories, and power stations. It helps keep energy safe and steady.

Note: Checking equipment often and training workers helps stop leaks and keeps the grid working well.

Regasification Technologies

Onshore Terminals

Onshore terminals are built near cities or factories. They help bring natural gas to places that need it most. These terminals can be made bigger as more gas is needed. They have more than one regasification unit, so if one stops, others keep working. This makes sure gas keeps flowing. Onshore terminals cost more and take longer to build than floating ones. But they give good long-term benefits for money and moving gas. Countries with big industries or fast growth often pick onshore terminals. These terminals are good for meeting lots of energy needs.

Tip: Onshore terminals help you plan for more growth and keep energy steady.

Floating Solutions

Floating solutions are a quick way to get natural gas to new places. You use FSRUs and floating barges when you need gas fast or do not want to build on land. These floating terminals help you get gas from many places and make energy safer. You can move them if you need gas somewhere else.

Here is a table that shows how floating regasification is used:

Floating terminals have many good points: You can set them up fast when you need gas right away. They cost less to build than onshore terminals. They help countries use different kinds of energy. They also help with energy safety.

Countries use floating terminals to get gas from many places and not just from pipelines. In 2025, most floating LNG terminals were used for import regasification. This shows floating solutions are very important for turning LNG into gas.

Note: Floating terminals help you change quickly when energy needs go up or down.

Technological Innovations

New technology makes regasification safer and better. Cryogenic power generation lets you use up to 30% of LNG’s cold energy. This saves energy and cuts pollution by using the cold from LNG. Hybrid regasification units help you work in different situations. They make the system more flexible and use less energy. Newer units like AAVs and IFVs use less energy and make less pollution than old ones.

These new ideas give you cleaner and more reliable energy. They also help save money and protect nature. As technology gets better, onshore and floating terminals work safer and faster.

Tip: Using new regasification technology helps you get energy and care for the Earth.

You now know that LNG regasification turns liquefied natural gas into gas you can use. This process helps meet energy needs everywhere. Floating and onshore terminals bring gas to places that are hard to reach.

• Regasification terminals are growing quickly because countries want cleaner energy.

• LNG helps cut pollution and supports climate goals.

• New terminals make energy safer and more flexible for the future.

FAQ

What is LNG regasification?

LNG regasification means turning LNG back into natural gas. You heat LNG to make it a gas again. This lets people use it for power, heat, and factories.

Why do you need to regasify LNG?

You cannot use LNG as a liquid for most things. Regasification makes it safe for pipes, homes, and factories. It gets the gas ready for people to use.

How cold is LNG before regasification?

LNG is kept at about −162 °C (−260 °F). It must stay very cold to remain a liquid. This keeps it safe until you need it.

Where does regasification happen?

Regasification takes place at special terminals. These are on land or floating near the shore. They have tanks, vaporizers, and safety tools.

Is LNG regasification safe?

You stay safe by following strict safety rules. Workers use alarms, sensors, and emergency plans. Training and checks help stop accidents.

Does regasification harm the environment?

Regasification can make emissions and use water. You can help by using new technology and checking for leaks. Clean energy choices lower the impact.

What do you use regasified LNG for?

Regasifed LNG is used for power, heating, and making things. It also runs buses and trucks in some cities.
